Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 20, 2016, 06:25 PM

  • H 0378_H 0377_9202016_112818.mp4

Date
09/20/2016
W/O
PENDING
Weather
Very Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00177
PipeID
P20456
Time
11:25 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7237
Sewer Name
H JOINT OUTFALL H - UNIT 5A
City
PICO RIVERA
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
03
Purpose
Routine Assessment
Project
20160920AM_JOINT_OUTFALL_H_UNIT_5A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
66 in.
Upstream MH
H 0378
Downstream MH
H 0377
Dir. of Survey
Downstream
Length Surveyed
4 ft.
Total Length
4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 0378 to H 0377
MH: H 0378MH: H 0377downstream0 ft. MGO - General Observation - RISER0 ft. MGO - General Observation - FRAME/RIM0 ft. MGO - General Observation - AIRLINE0 ft. AMH - Upstream Manhole, Survey Begins - 11:27 AM1 ft. MGO - General Observation - STEPS2 ft. MGO - General Observation - BARREL DIVIDER3 ft. MGO - General Observation - STOPLOG4 ft. MGO - General Observation - SHELF

Observation photos (8)

  • General Observation - RISER

    0 ft. - General Observation - RISER

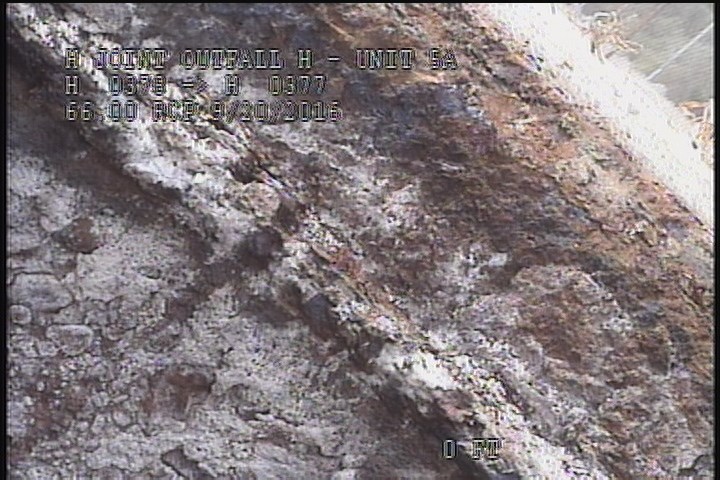

  • General Observation - FRAME/RIM

    0 ft. - General Observation - FRAME/RIM

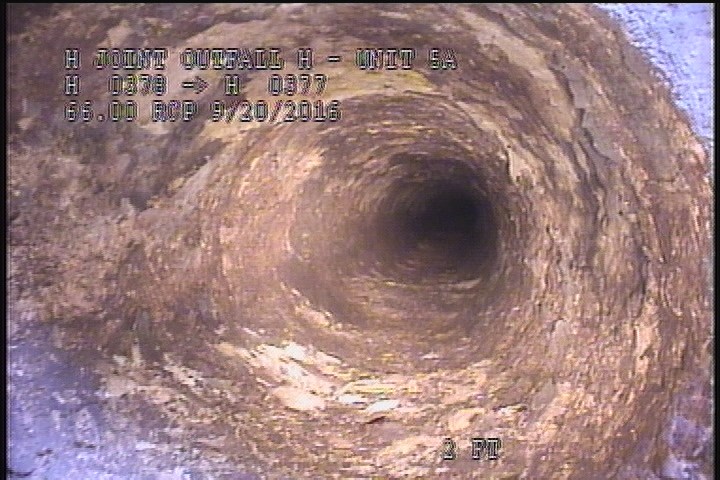

  • General Observation - AIRLINE

    0 ft. - General Observation - AIRLINE

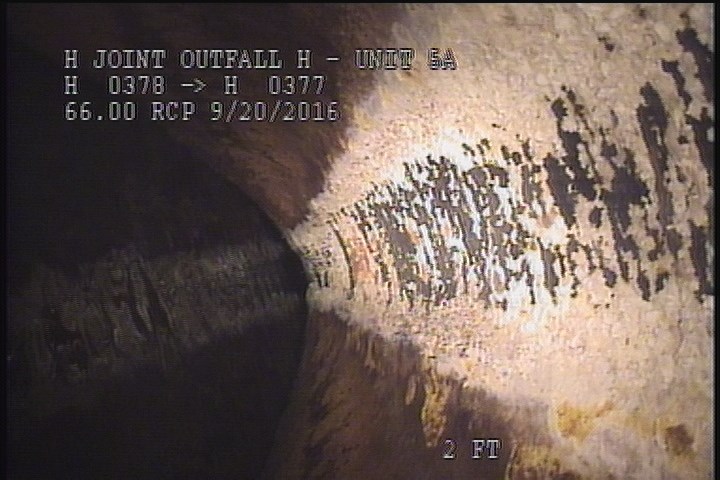

  • Upstream Manhole, Survey Begins - 11:27 AM

    0 ft. - Upstream Manhole, Survey Begins - 11:27 AM

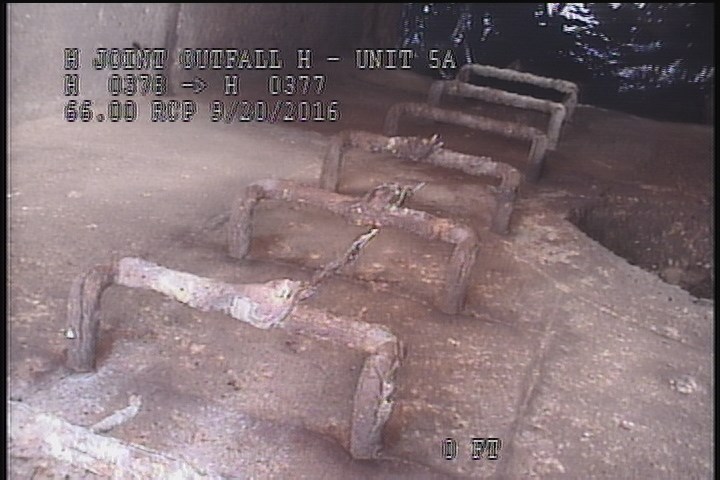

  • General Observation - STEPS

    1 ft. - General Observation - STEPS

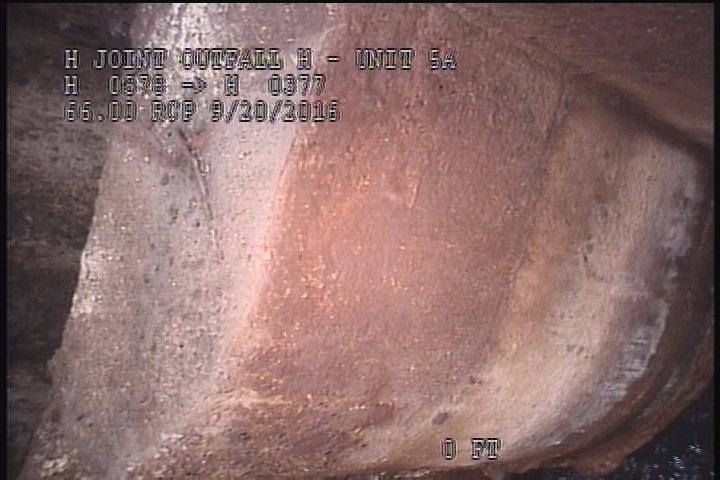

  • General Observation - BARREL DIVIDER

    2 ft. - General Observation - BARREL DIVIDER

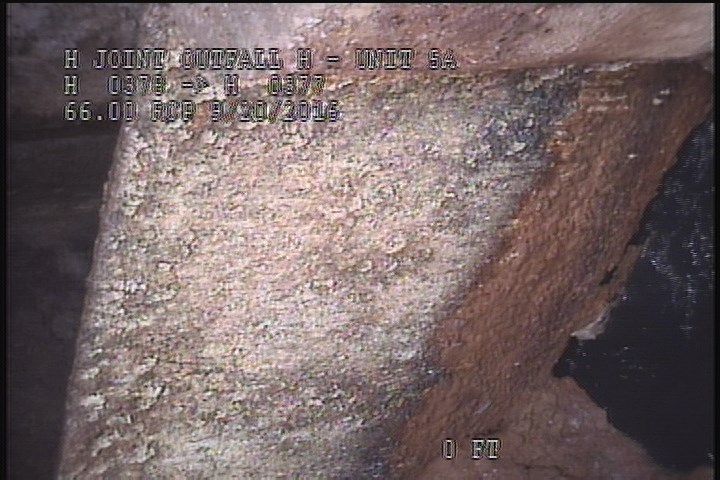

  • General Observation - STOPLOG

    3 ft. - General Observation - STOPLOG

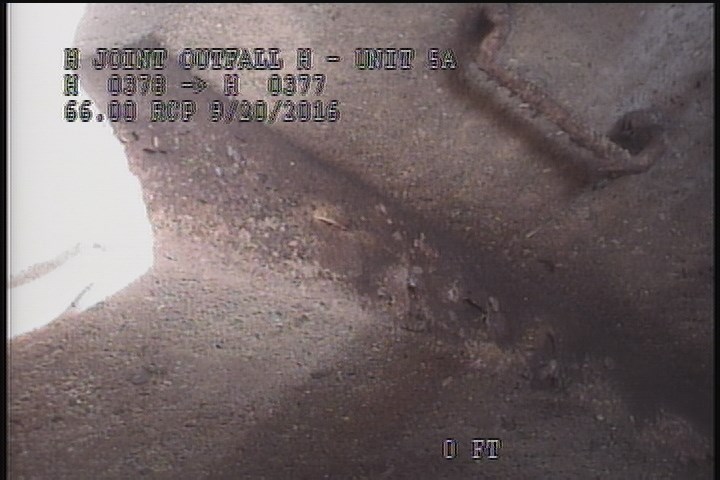

  • General Observation - SHELF

    4 ft. - General Observation - SHELF

All inspections of P20456Work order PENDING

Observations (8)

DistanceCodeObservation
4MGOSHELF
0MGORISER
0MGOFRAME/RIM
0MGOAIRLINE
1MGOSTEPS
2MGOBARREL DIVIDER
3MGOSTOPLOG
0AMH11:27 AM

Properties (5)

additional_info
MANHOLE/AIRLINE INSPECTION ONLY, WEST BARREL
customer
LACSD
datetime
2016-09-20T11:25:53-07:00
documentation
MIRANDA, SHADLER, BRAR
is_lateral_inspection
false
