Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 12:27 PM
05 0860_05 0859_9222016_053041.mp4
- Date
- 09/22/2016
- W/O
- 0585472
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00457
- PipeID
- P06090
- Time
- 5:27 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0290
- Sewer Name
- 05 IMPERIAL HIGHWAY EXTENSION TRUNK
- City
- HAWTHORNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20160919MDM_IMPERIAL_HIGHWAY_EXTENSION_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 05 0860
- Downstream MH
- 05 0859
- Dir. of Survey
- Downstream
- Length Surveyed
- 38.1 ft.
- Total Length
- 38.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

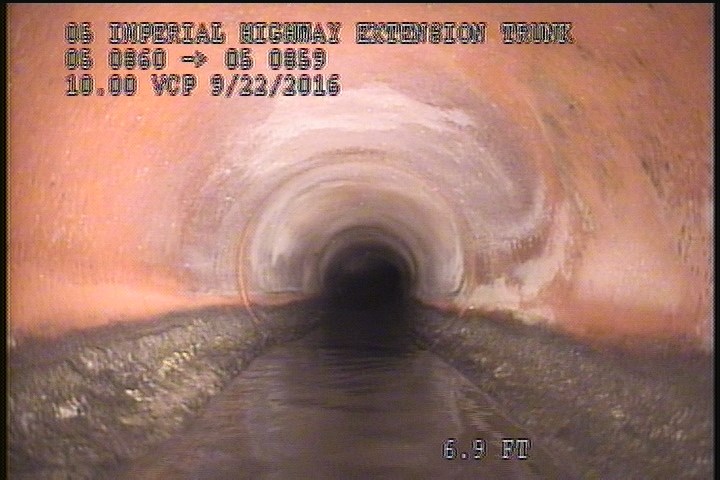

6.9 ft. - General Observation - 10" VCP

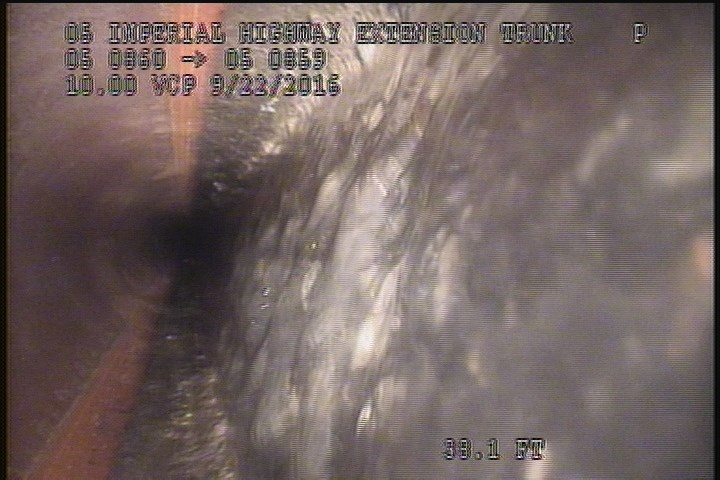

37.3 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - ROCKS
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 6.9 | MGO | 10" VCP |
| 0 | AMH | 5:30AM |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
| 37.3 | DSZ | ROCKS |
| 38.1 | MSA | 10% ROCKS |
Properties (4)
- customer
- LACSD
- datetime
- 2016-09-22T05:27:38-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
