Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 10:01 AM

  • 05 2360_05 0861_9222016_042618.mp4

Date
09/22/2016
W/O
0585472
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00457
PipeID
P23417
Time
3:01 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0290
Sewer Name
05 IMPERIAL HIGHWAY EXTENSION TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Routine Assessment
Project
20160919MDM_IMPERIAL_HIGHWAY_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
05 0861
Downstream MH
05 2360
Dir. of Survey
Upstream
Length Surveyed
154.8 ft.
Total Length
154.8 ft.
Structural Index
2
Structural Quick
3B2C
Structural Rating
85
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
87
Pipe schematic from manhole 05 0861 to 05 2360
MH: 05 0861MH: 05 2360upstream0 ft. AMH - Upstream Manhole, Survey Ends - 5:00AM0.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish9.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - S29.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES33.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped36 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped44 ft. FC - Fracture Circumferential, from 08 to 03 o'clock, within 8 inches of joint: YES - S46.9 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - S50 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - S50 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H53.2 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H55 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: NO - H59.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - S68.4 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - S71.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S74.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - S74.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - S77.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H84.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6", 6" - Capped86.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H87 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped88.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H91.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - S92 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H95.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - S97.8 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H101 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - S104.1 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H104.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - S110.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H113.2 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - S113.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - S116.3 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - S119.6 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - S122.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H128.4 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H131.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H134.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE137.8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S140.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - S146.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT152.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start154.8 ft. MWM - Water Mark, 30 %of cross sectional area154.8 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped154.8 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped154.8 ft. MWL - Water Level, 10 %of cross sectional area154.8 ft. AMH - Downstream Manhole, Survey Begins - 4:25AM

Observation photos (1)

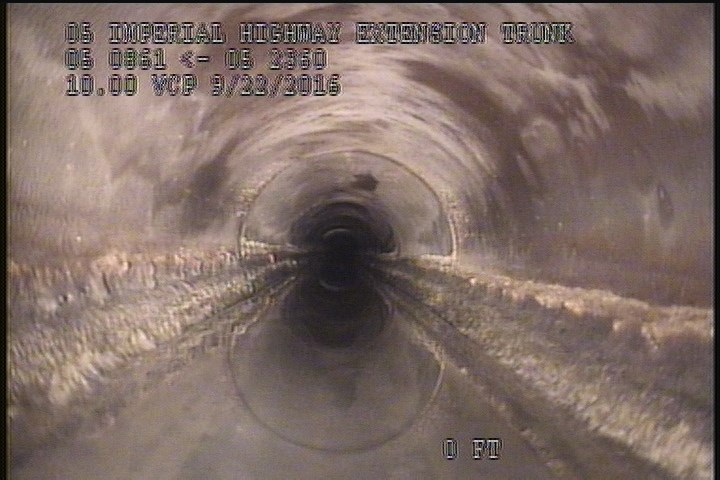

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P23417Work order 0585472

Observations (47)

DistanceCodeObservation
0MWM—
83.3FCS
41.6FCS
65.9FLH
23.2FLH
70.4TFCCapped
80.1FCS
118.8TFCCapped
57FCH
154.8AMH5:00AM
63.3FLS
14FCS
80.1FCS
101.6FCH
110.8FCS
35.2FCS
32.3FLH
53.8FLS
50.7FCH
0MGOConn. @ Mh, 3 O' Clock. Capped
62.8FCH
38.5FCS
125.3CL—
107.9FCS
68.7FLH
41.6FLS
0MGOConn. @ Mh, 9 O' Clock. Capped
104.8FCS
67.8TFCCapped
86.4FCS
99.8FCH
104.8FLH
0MWL—
8FLSLIGHT
2DAGS—
121.5TFCCapped
50.7FLS
17FCS
44.7FLH
77.3FLH
0AMH4:25AM
26.4FCH
144.9FLS
20.4FCHAIRLINE
59.7FLS
154.5DAGS—
95.5FLS

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2016-09-22T03:01:35-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
