Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 07:23 AM

  • 05 0870_05 0869_9222016_012559.mp4

Date
09/22/2016
W/O
0585472
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00457
PipeID
P06101
Time
12:23 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0287
Sewer Name
05 IMPERIAL HIGHWAY EXTENSION TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Routine Assessment
Project
20160919MDM_IMPERIAL_HIGHWAY_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
05 0870
Downstream MH
05 0869
Dir. of Survey
Downstream
Length Surveyed
329.8 ft.
Total Length
329.8 ft.
Structural Index
2
Structural Quick
4236
Structural Rating
60
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
65
Pipe schematic from manhole 05 0870 to 05 0869
MH: 05 0870MH: 05 0869downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:25AM56.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE57.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open59.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT60.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open70.9 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H70.9 ft. MGO - General Observation - 10" VCP80.1 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H83 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H83 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H104.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H107.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H120.7 ft. RML - Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES120.7 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open -80% ROOTS122.2 ft. FM - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT122.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open123.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - S124.1 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - S124.7 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H146.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H189 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - S189.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open190.4 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - S191.6 ft. FM - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT192.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open215.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H240 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - S240.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open242.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H242.7 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - S243.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open290.7 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES291.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open293.5 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - S293.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S294.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open295.6 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H326.3 ft. FC - Fracture Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES - H329.8 ft. AMH - Downstream Manhole, Survey Ends - 2:15AM-MH IS CAPPED

Observation photos (5)

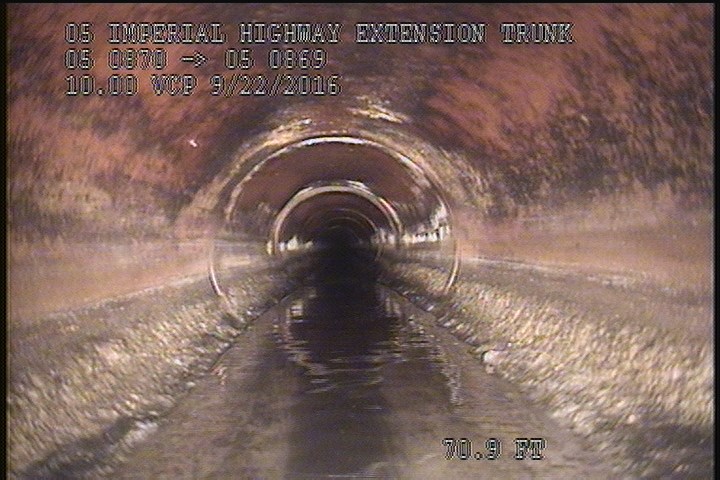

  • General Observation - 10" VCP

    70.9 ft. - General Observation - 10" VCP

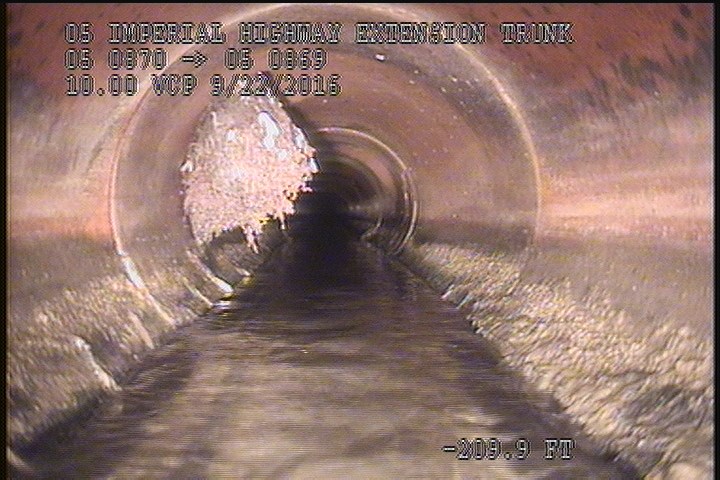

  • Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES

    120.7 ft. - Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES

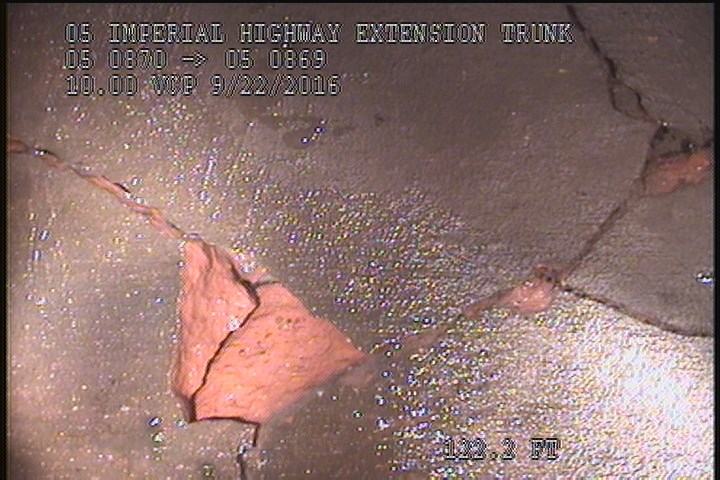

  • Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    122.2 ft. - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

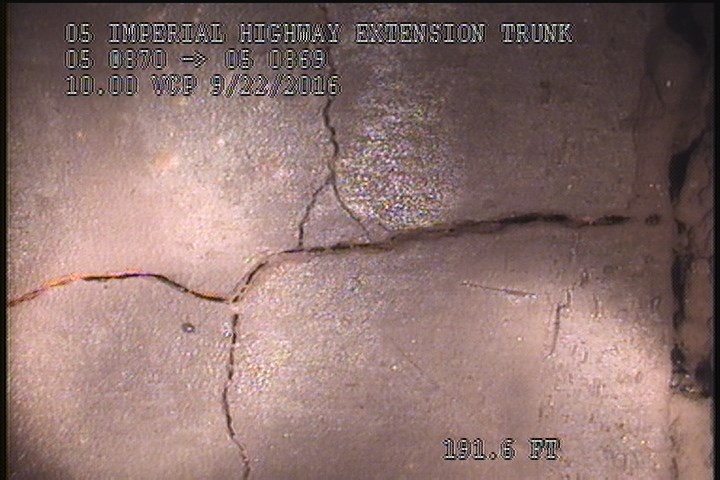

  • Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    191.6 ft. - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

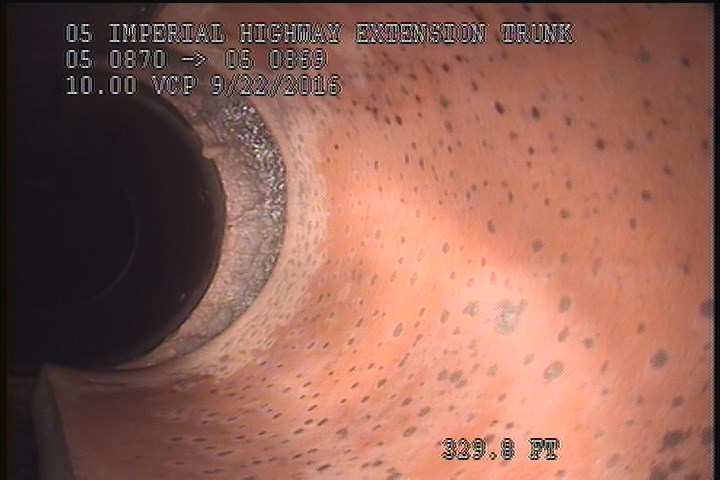

  • Downstream Manhole, Survey Ends - 2:15AM-MH IS CAPPED

    329.8 ft. - Downstream Manhole, Survey Ends - 2:15AM-MH IS CAPPED

All inspections of P06101Work order 0585472

Observations (41)

DistanceCodeObservation
0MWL—
83FCH
329.8AMH2:15AM-MH IS CAPPED
189FCS
240.7TFOpen
146.6FLH
295.6FCH
124.1FCS
59.4FCSLIGHT
0MWM—
290.7FC—
80.1FCH
70.9FCH
60.5TFOpen
120.7RML—
293.5FLS
107.9FCH
123.6FCS
240FCS
104.6FLH
191.6FMSLIGHT
122.9TFOpen
189.9TFOpen
215.5FLH
294.2TFOpen
190.4FCS
120.7TFDOpen -80% ROOTS
83FLH
122.2FMSLIGHT
124.7FCH
0AMH1:25AM
293.5FCS
242.7FCH
326.3FCH
291.9TFOpen
243.5TFOpen
70.9MGO10" VCP
242.7FCS
57.6TFOpen
192.6TFOpen
56.7FLHAIRLINE

Properties (6)

custom_field_three
MULTIPLE SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2016-09-22T00:23:18-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
