Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2016, 01:26 PM

  • 05 0845_05 0844_9172016_063049.mp4

Date
09/17/2016
W/O
0585473
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00457
PipeID
P06075
Time
6:26 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0283
Sewer Name
05 IMPERIAL HIGHWAY EXTENSION TRUNK
City
LENNOX
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
20160917RO_IMPERIAL_HIGHWAY_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0845
Downstream MH
05 0844
Dir. of Survey
Downstream
Length Surveyed
313.4 ft.
Total Length
313.4 ft.
Structural Index
1
Structural Quick
3221
Structural Rating
17
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
1
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 05 0845 to 05 0844
MH: 05 0845MH: 05 0844downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 06:30 AM8.8 ft. CC - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES14.2 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES50.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"54.3 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 4"62.2 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES75.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"101 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"125.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4"126.4 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4"145.5 ft. CC - Crack Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES152.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"153.6 ft. CC - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES154.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"160.2 ft. RTJ - Roots Tap Joint, at 10 o'clock, 5 %, within 8 inches of joint: YESR171.3 ft. RFJ - Roots Fine Joint, at 10 o'clock, within 8 inches of joint: YESR173 ft. CC - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES175.5 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES177.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4"179.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"183.7 ft. CC - Crack Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES202.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"214.1 ft. CC - Crack Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES227.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"230.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4"232.4 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES234.2 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES243.5 ft. CC - Crack Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES254.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"265.8 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"274.9 ft. TFB - Tap Factory Made Abandoned, at 11 o'clock, -, within 8 inches of joint: YES, 4"313.4 ft. TFB - Tap Factory Made Abandoned, at 09 o'clock, -, within 8 inches of joint: NO, 4"313.4 ft. AMH - Downstream Manhole, Survey Ends - 07:20 AM313.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"

Observation photos (2)

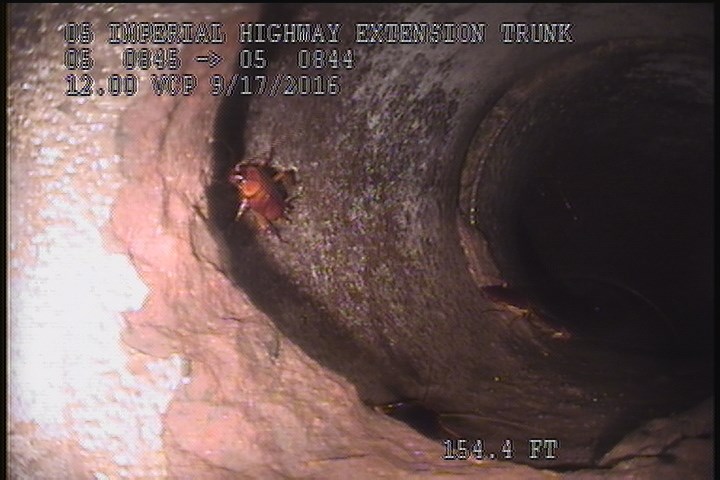

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"

    154.4 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"

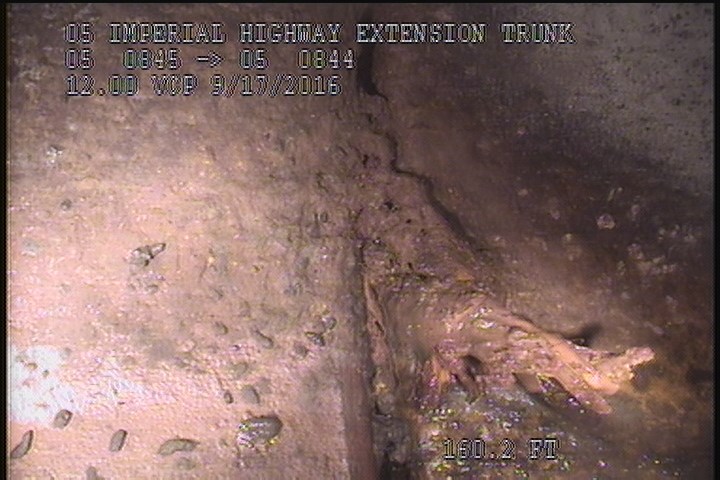

  • Roots Tap Joint, at 10 o'clock, 5 %, within 8 inches of joint: YESR

    160.2 ft. - Roots Tap Joint, at 10 o'clock, 5 %, within 8 inches of joint: YESR

All inspections of P06075Work order 0585473

Observations (36)

DistanceCodeObservation
214.1CC—
313.4TFB—
202.5TF—
177.5TF—
173CC—
50.8TF—
232.4CL—
125.3TF—
175.5CM—
179.5TF—
243.5CC—
14.2CC—
152.1TF—
75.7TF—
0MWM—
171.3RFJ—
227.5TFA—
54.3TFA—
230.3TF—
154.4TB—
101TF—
160.2RTJ—
126.4TF—
313.4AMH07:20 AM
62.2CC—
254.7TF—
234.2CM—
153.6CC—
274.9TFB—
0MWL—
313.4TF—
183.7CC—
8.8CC—
265.8TFA—
0AMH06:30 AM
145.5CC—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-09-17T06:26:43-07:00
documentation
OLIVER, MANAMES, REVELES
is_lateral_inspection
false
