Wastewater/Activity/PacpInspection/1.0Sep 10, 2016, 12:40 PM
02 2005_02 2106_9102016_055552.mp4
- Date
- 09/10/2016
- W/O
- 0595546
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00239
- PipeID
- P04359
- Time
- 5:40 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0272
- Sewer Name
- 02 BELVEDERE RELIEF TRUNK
- City
- LOS ANGLES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20160910MDM_BELVEDERE_RELIEF_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 02 2005
- Downstream MH
- 02 2106
- Dir. of Survey
- Downstream
- Length Surveyed
- 472.8 ft.
- Total Length
- 472.8 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

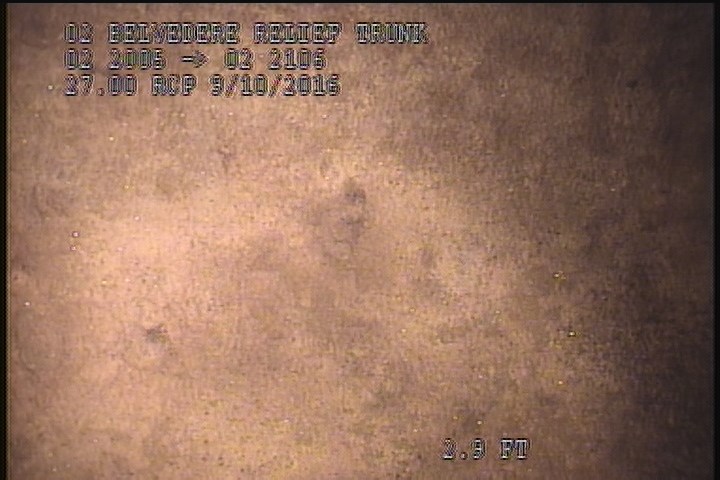

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - FLAKING,BLISTERING LAITANCE COAT

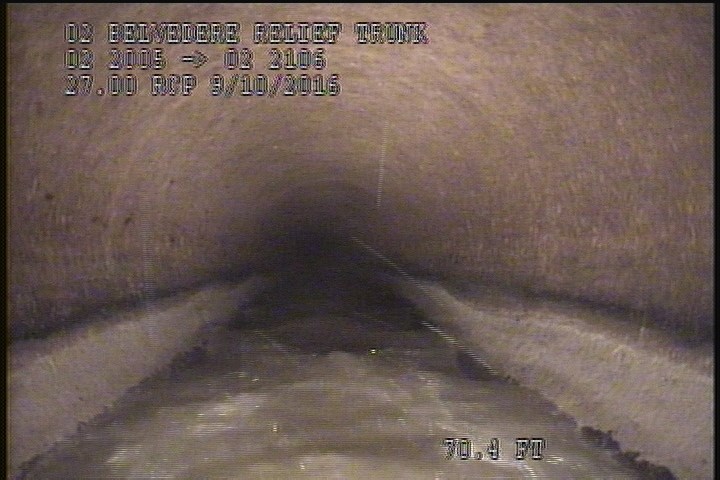

70.4 ft. - General Observation - 27" RCP

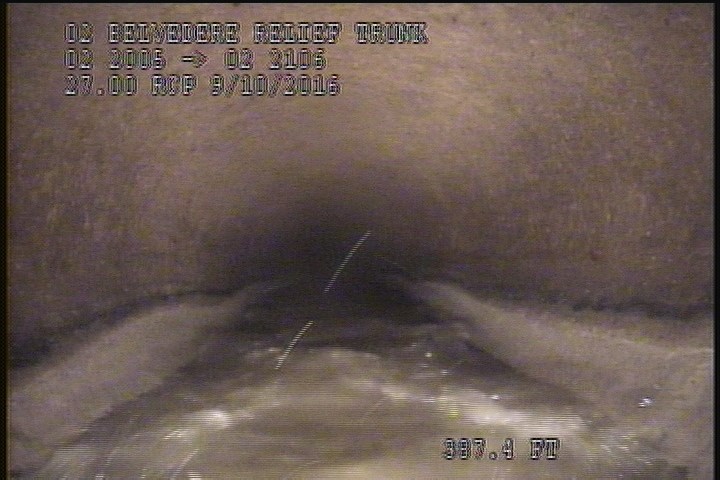

387.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 387.4 | SSS | — |
| 472.4 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 158.5 | MWL | — |
| 0 | AMH | 5:50AM |
| 70.4 | MGO | 27" RCP |
| 2 | SSS | FLAKING,BLISTERING LAITANCE COAT |
| 472.4 | SSS | FLAKING,BLISTERING LAITANCE COAT |
| 472.8 | AMH | 6:15AM |
| 0 | MWL | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-10T05:40:28-07:00
- documentation
- MARTIN,MANANES,OLIVER 111
- is_lateral_inspection
- false
