Wastewater/Activity/PacpInspection/1.0Nov 21, 2016, 06:59 PM
C 0350_C 0349 _20161121_105449.mp4
- Date
- 11/21/2016
- W/O
- 602761
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00139
- PipeID
- P09813
- Time
- 10:59 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3922
- Sewer Name
- C JOINT OUTFALL C - UNIT 8A
- City
- LONG BEACH, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_602761_TV19062_NOV2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- C 0350
- Downstream MH
- C 0349
- Dir. of Survey
- Downstream
- Length Surveyed
- 283.4 ft.
- Total Length
- 283.4 ft.
- Structural Index
- 4
- Structural Quick
- 5141
- Structural Rating
- 12
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (3)

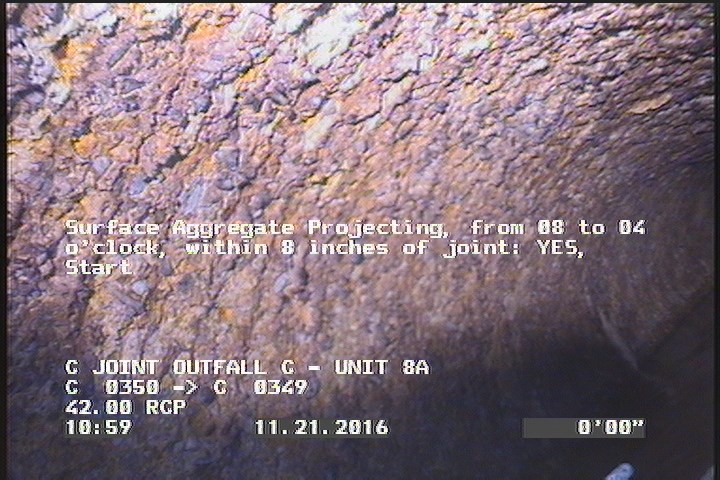

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

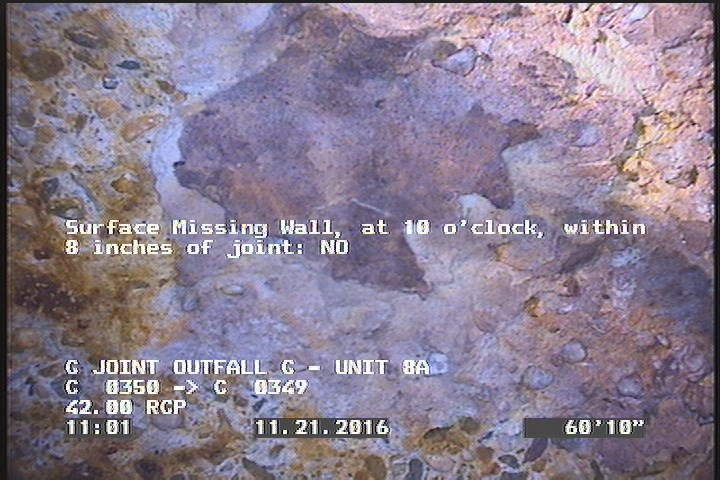

60.9 ft. - Surface Missing Wall, at 10 o'clock, within 8 inches of joint: NO

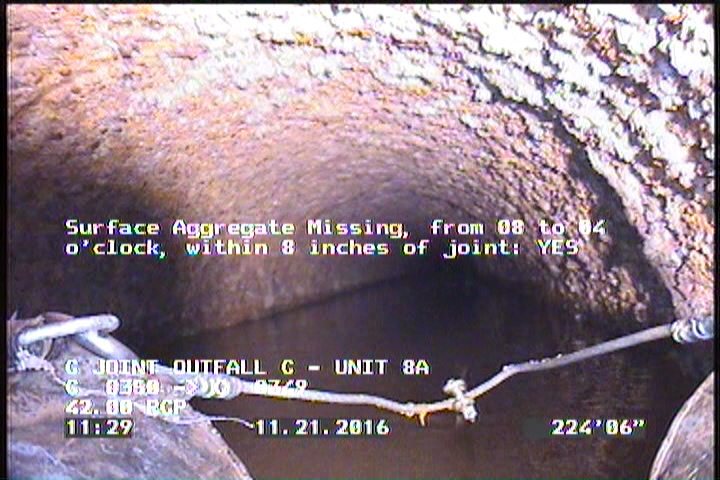

222.8 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | C 0350 |
| 209.4 | SAP | — |
| 222.8 | SAM | — |
| 60.9 | SMW | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 283.4 | MSA | CABLE AND PARACHUTE ROPE GETTING CAUGHT IN PIPE |
| 283.4 | SAM | — |
| 2 | MGO | RIBCAGE EFFECT |
Properties (6)
- additional_info
- SC317665
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-11-21T10:59:00-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
