Wastewater/Activity/PacpInspection/1.0Nov 28, 2016, 11:30 AM
05 0819_05 0818 _11282016_033038.mp4
- Date
- 11/28/2016
- W/O
- 602600
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00419
- PipeID
- P06049
- Time
- 3:30 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4022
- Sewer Name
- 05 ARLINGTON AVENUE EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_602600_TV05009_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 0819
- Downstream MH
- 05 0818
- Dir. of Survey
- Downstream
- Length Surveyed
- 107.2 ft.
- Total Length
- 107.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 42
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 45
Observation photos (4)

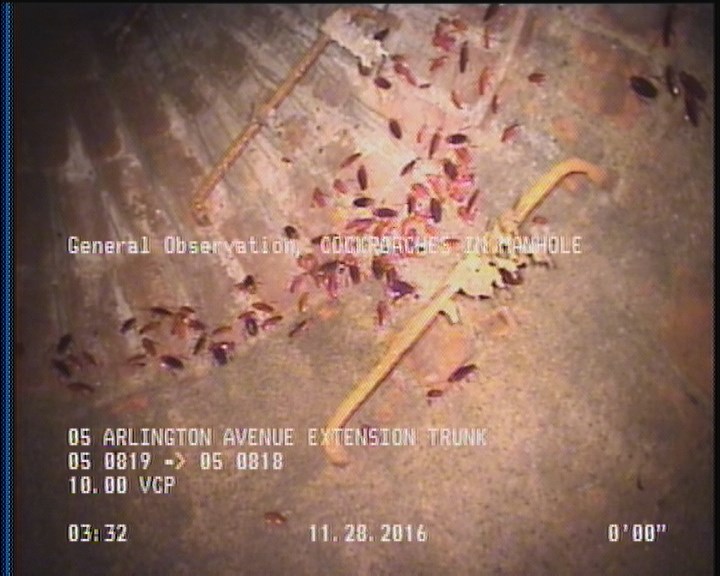

0 ft. - General Observation - COCKROACHES IN MANHOLE

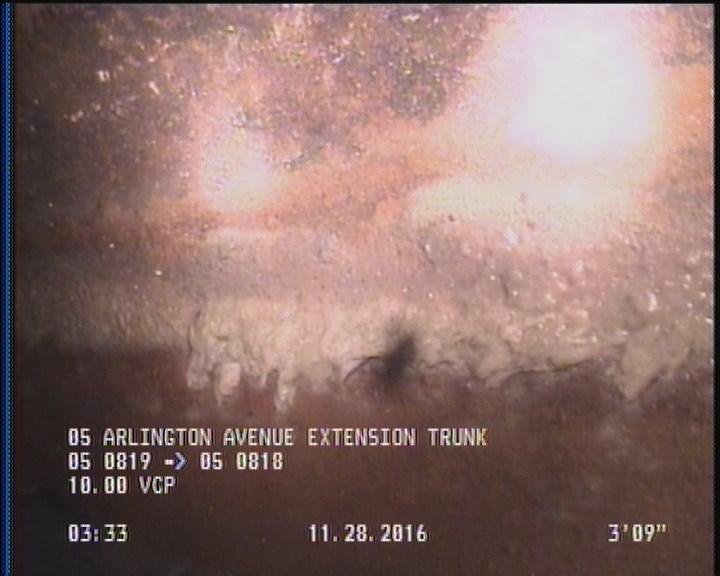

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

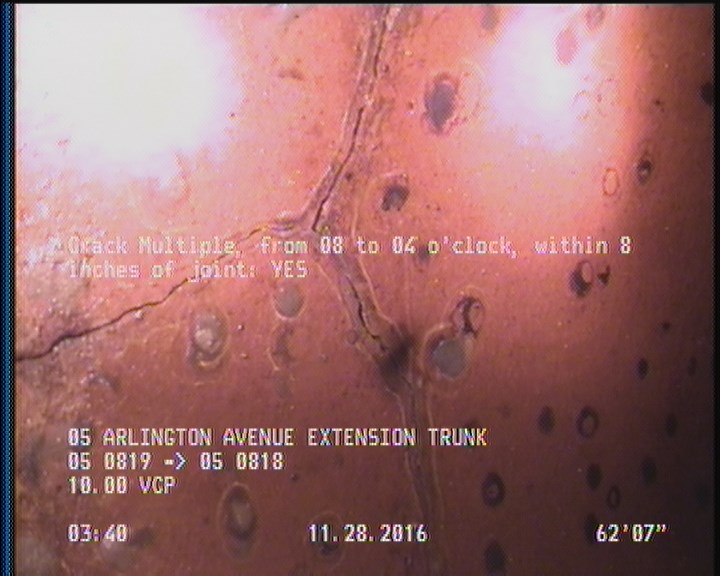

62.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

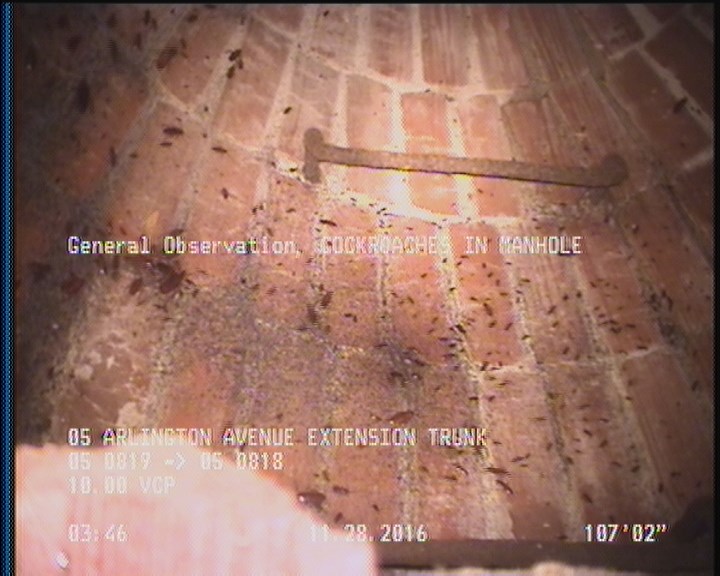

107.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 104.9 | DAGS | — |
| 2 | DAGS | — |
| 107.2 | AMH | 05 0818 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 107.2 | MGO | COCKROACHES IN MANHOLE |
| 62.6 | CM | — |
| 107.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | 05 0819 |
Properties (6)
- additional_info
- SC306414
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-28T03:30:18-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
