Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 09:30 AM

  • 05 2329_05 2328 _12022016_013116.mp4

Date
12/02/2016
W/O
602600
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00419
PipeID
P07443
Time
1:30 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4026
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
WO_602600_TV05009_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 2328
Downstream MH
05 2329
Dir. of Survey
Upstream
Length Surveyed
432 ft.
Total Length
432 ft.
Structural Index
4
Structural Quick
5121
Structural Rating
7
O&M Index
2
O&M Quick
2P00
O&M Rating
172
Overall Index
2
Overall Quick
—
Overall Rating
179
Pipe schematic from manhole 05 2328 to 05 2329
MH: 05 2328MH: 05 2329upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 23290.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE0.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish35.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"45.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"85.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"92 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"125.4 ft. H - Hole, from 08 to 10 o'clock, within 8 inches of joint: NO - POSSIBLE PATCH134 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"139.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"184.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"190.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"236.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"245.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"287.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"292.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"334 ft. CS - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES334.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"341.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"430 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start432 ft. AMH - Downstream Manhole, Survey Begins - 05 2328432 ft. MWL - Water Level, 20 %of cross sectional area432 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (4)

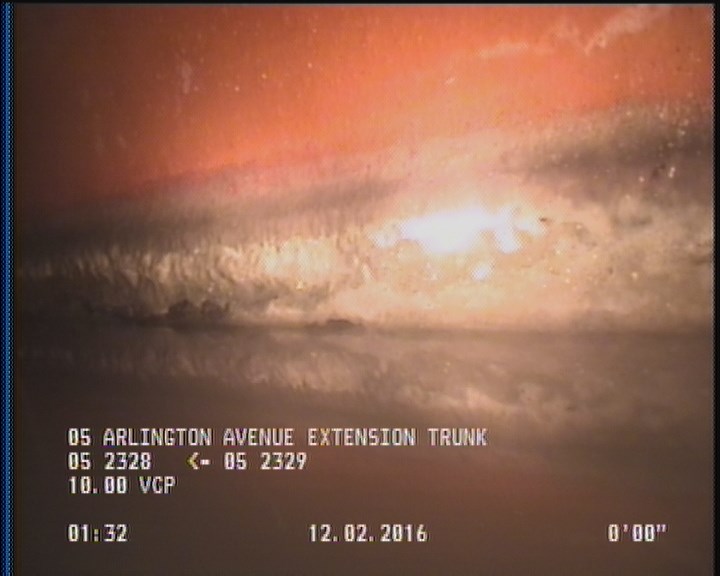

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

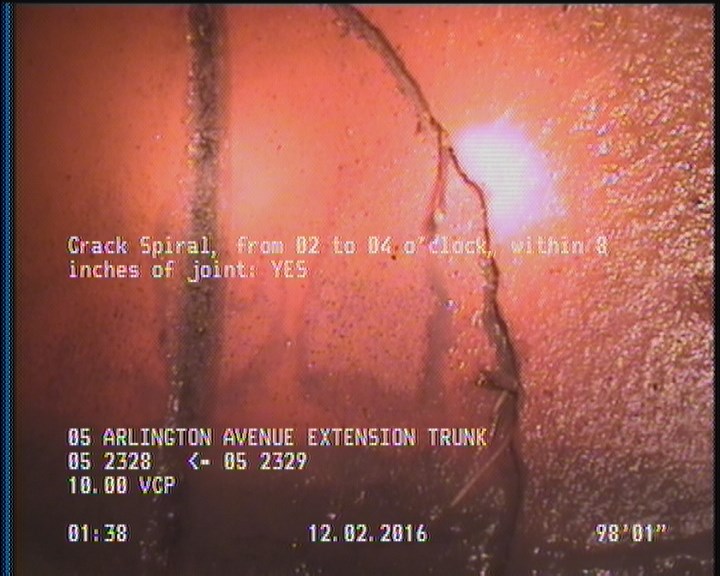

  • Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

    98 ft. - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

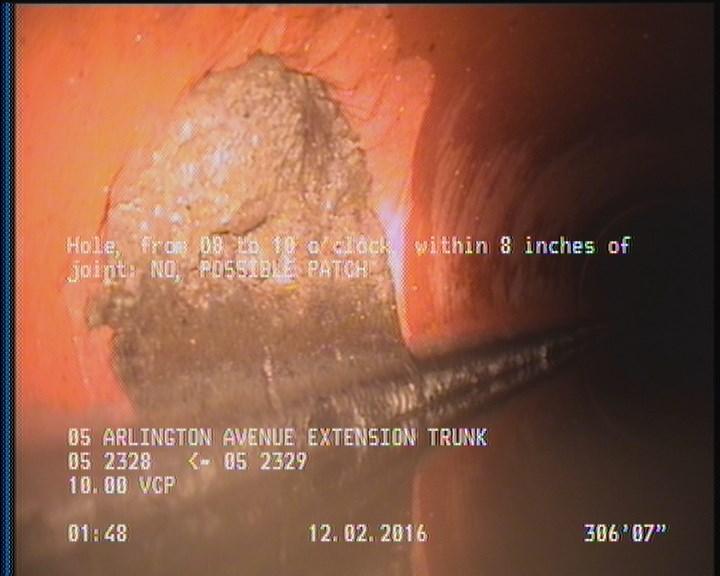

  • Hole, from 08 to 10 o'clock, within 8 inches of joint: NO - POSSIBLE PATCH

    306.6 ft. - Hole, from 08 to 10 o'clock, within 8 inches of joint: NO - POSSIBLE PATCH

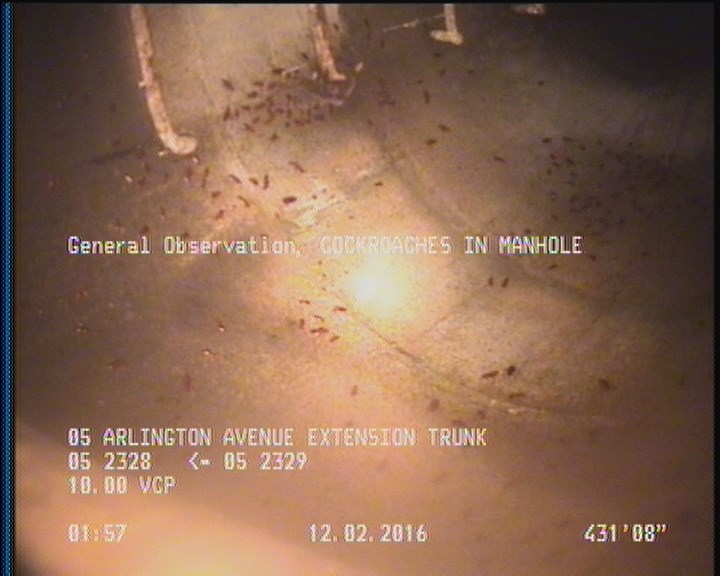

  • General Observation - COCKROACHES IN MANHOLE

    431.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P07443Work order 602600

Observations (23)

DistanceCodeObservation
97.1TFC—
241.4TFC—
346.4TFA—
292.3TFA—
2DAGS—
386.5TFA—
195.2TFA—
0AMH05 2328
431.6MGOCOCKROACHES IN MANHOLE
396.9TFA—
144.8TFA—
0MWL—
247.6TFA—
431.6DAGS—
306.6HPOSSIBLE PATCH
98CS—
186.8TFC—
298TFA—
139.2TFC—
0MWM—
90.8TFC—
340TFA—
432AMH05 2329

Properties (6)

additional_info
SC306418
custom_field_two
4
customer
LACSD
datetime
2016-12-02T01:30:04-08:00
documentation
PRO PIPE
is_lateral_inspection
false
