Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 28, 2016, 09:14 AM

  • 05 0824_05 0823 _11282016_021205.mp4

Date
11/28/2016
W/O
602600
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00419
PipeID
P06054
Time
1:14 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4022
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
WO_602600_TV05009_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 0824
Downstream MH
05 0823
Dir. of Survey
Downstream
Length Surveyed
93.7 ft.
Total Length
93.7 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
45
O&M Index
2
O&M Quick
2C00
O&M Rating
36
Overall Index
2
Overall Quick
—
Overall Rating
81
Pipe schematic from manhole 05 0824 to 05 0823
MH: 05 0824MH: 05 0823downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 08240 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start7.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"17.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start51 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"57.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"91.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE91.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish91.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish93.7 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK93.7 ft. AMH - Downstream Manhole, Survey Ends - 05 0823

Observation photos (3)

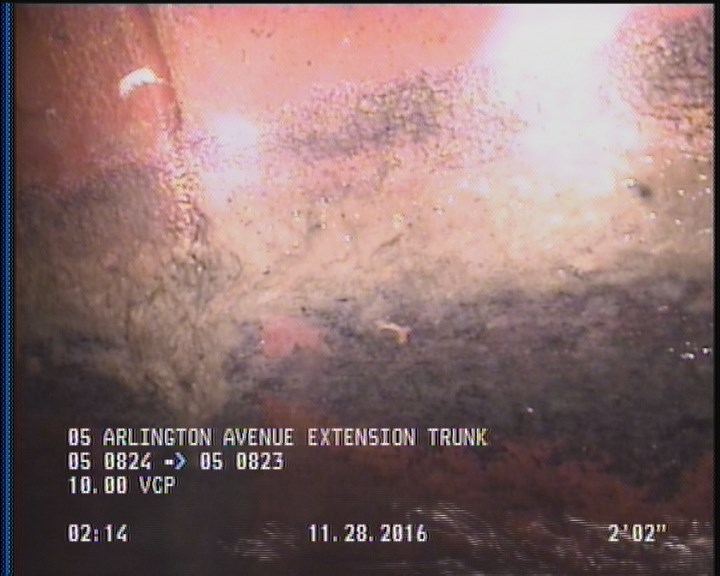

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

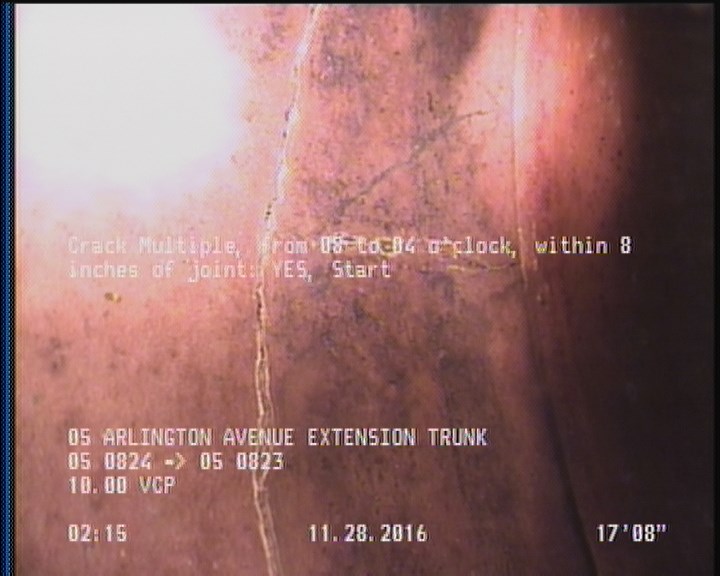

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    17.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

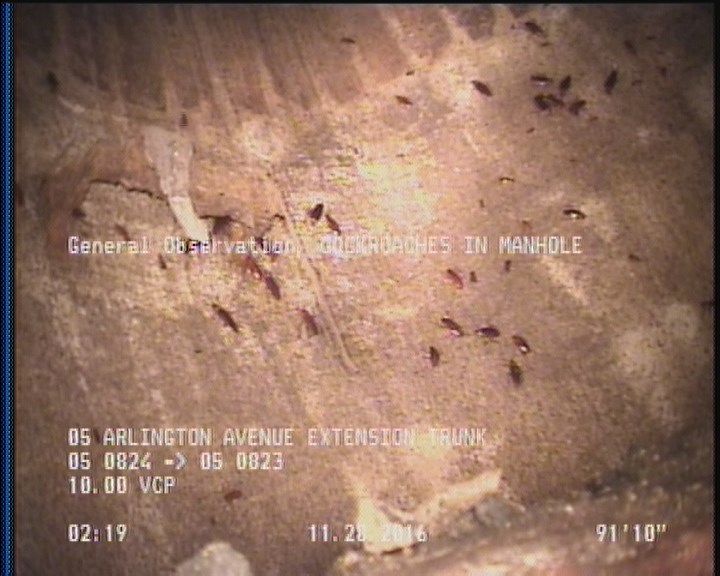

  • General Observation - COCKROACHES IN MANHOLE

    91.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P06054Work order 602600

Observations (15)

DistanceCodeObservation
2DAGS—
0AMH05 0824
91.9MGOCOCKROACHES IN MANHOLE
0MWL—
93.7MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MGOCOCKROACHES IN MANHOLE
51TFC—
0MWM—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
7.8TFC—
57.8TFC—
91.9DAGS—
93.7AMH05 0823
17.6CM—
91.9CM—

Properties (6)

additional_info
SC306414
custom_field_two
3
customer
LACSD
datetime
2016-11-28T01:14:50-08:00
documentation
PRO PIPE
is_lateral_inspection
false
