Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 12:11 PM

  • 05 0808_05 0967 _12022016_040048.mp4

Date
12/02/2016
W/O
602600
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00419
PipeID
P06039
Time
4:11 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4026
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
HOLLY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
WO_602600_TV05009_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 0808
Downstream MH
05 0967
Dir. of Survey
Downstream
Length Surveyed
352.2 ft.
Total Length
352.2 ft.
Structural Index
3
Structural Quick
3500
Structural Rating
15
O&M Index
2
O&M Quick
2M00
O&M Rating
140
Overall Index
2
Overall Quick
—
Overall Rating
155
Pipe schematic from manhole 05 0808 to 05 0967
MH: 05 0808MH: 05 0967downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 05 08080 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start34.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"37.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"80.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"83.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"135 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"137.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"151.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES185.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"187.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"234.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"237.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"242.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES284.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES285.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"288 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"335.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"341 ft. CM - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES345.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES350.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish350.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE352.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK352.2 ft. AMH - Downstream Manhole, Survey Ends - 05 0967

Observation photos (7)

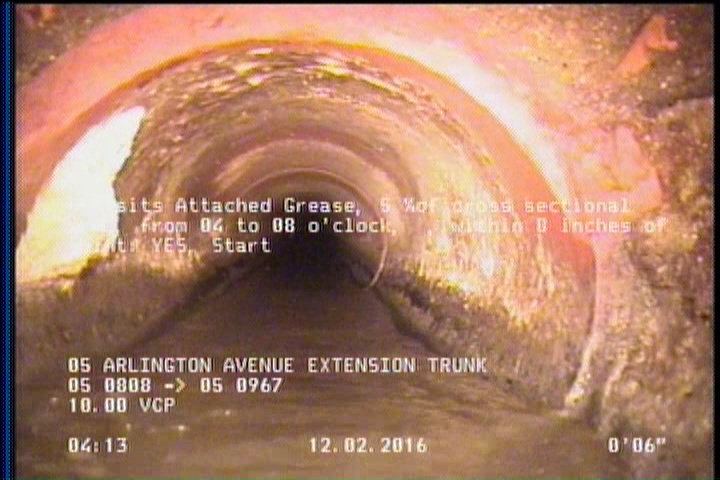

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    151.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    242.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    284.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

    341 ft. - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    345.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • General Observation - COCKROACHES IN MANHOLE

    350.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P06039Work order 602600

Observations (27)

DistanceCodeObservation
352.2MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MGOCOCKROACHES IN MANHOLE
0AMH05 0808
80.4TFC—
341CM—
151.2CM—
335.8TFC—
185.2TFC—
0MWM—
345.3CM—
0MWL—
242.9CM—
350.2DAGS—
237.5TFC—
350.2MGOCOCKROACHES IN MANHOLE
83.1TFC—
284.2CM—
187.1TFC—
285.1TFC—
37.3TFC—
288TFC—
34.4TFC—
352.2AMH05 0967
2DAGS—
234.9TFC—
135TFC—
137.7TFC—

Properties (6)

additional_info
SC306418
custom_field_two
4
customer
LACSD
datetime
2016-12-02T04:11:56-08:00
documentation
PRO PIPE
is_lateral_inspection
false
