Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 10:59 AM
05 2326_05 0811 _12022016_025949.mp4
- Date
- 12/02/2016
- W/O
- 602600
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00419
- PipeID
- P06043
- Time
- 2:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4026
- Sewer Name
- 05 ARLINGTON AVENUE EXTENSION TRUNK
- City
- HAWTHORNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_602600_TV05009_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 2326
- Downstream MH
- 05 0811
- Dir. of Survey
- Downstream
- Length Surveyed
- 129 ft.
- Total Length
- 129 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 50
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 53
Observation photos (2)

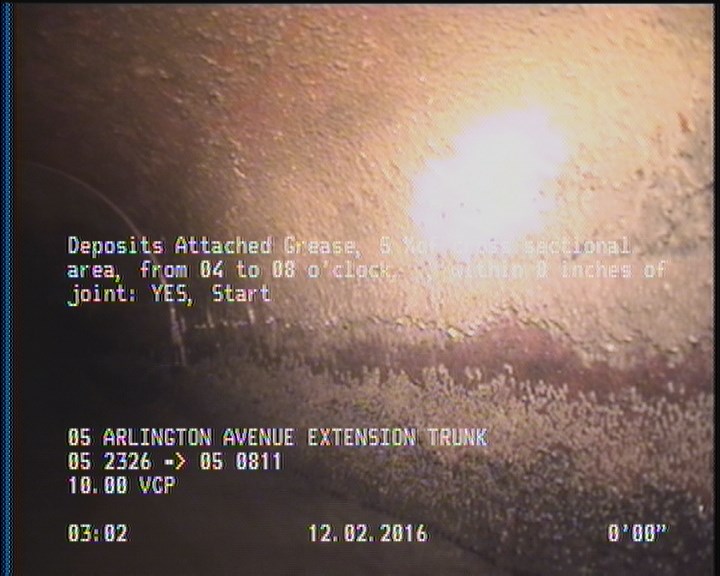

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

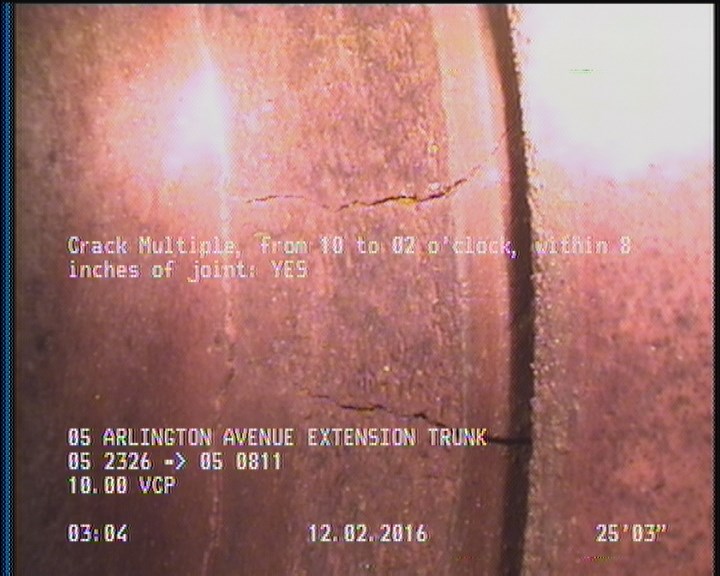

25.3 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 36.8 | TFC | — |
| 129 | AMH | 05 0811 |
| 0 | AMH | 05 2326 |
| 25.3 | CM | — |
| 127.3 | DAGS | — |
| 34 | TFA | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 86.9 | TF | — |
| 84.2 | TFA | — |
Properties (6)
- additional_info
- SC306418
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-02T02:59:29-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
