Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 11:41 AM

  • 05 0809_05 0808 _12022016_034126.mp4

Date
12/02/2016
W/O
602600
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00419
PipeID
P06040
Time
3:41 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4026
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
HOLLY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
WO_602600_TV05009_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 0809
Downstream MH
05 0808
Dir. of Survey
Downstream
Length Surveyed
340.3 ft.
Total Length
340.3 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
168
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
172
Pipe schematic from manhole 05 0809 to 05 0808
MH: 05 0809MH: 05 0808downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 08092 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start21.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"24.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"25.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES62.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start71.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"74.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"121.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"124.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"171.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"174.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"221.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"224.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"271.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"274.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"322.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"324.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"338.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish338.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish340.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE340.3 ft. AMH - Downstream Manhole, Survey Ends - 05 0808

Observation photos (4)

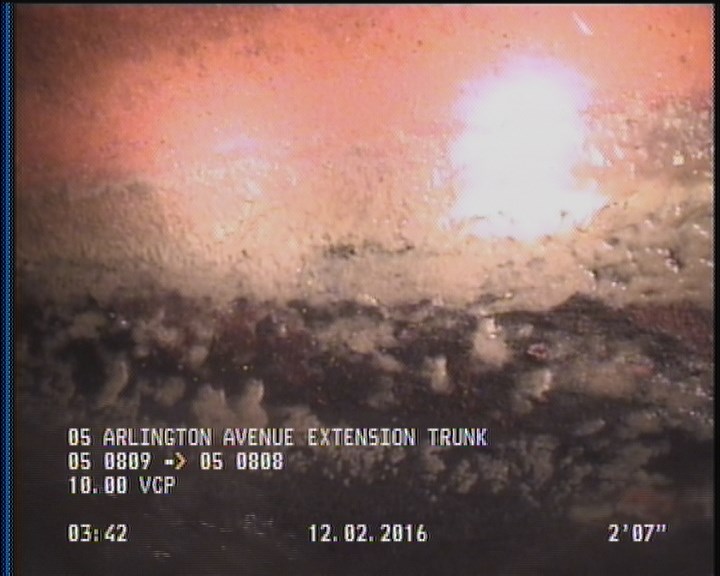

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

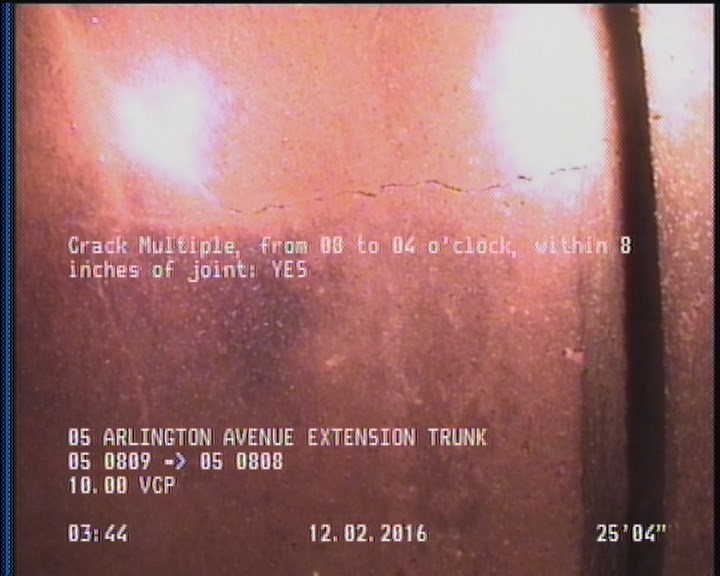

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    25.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

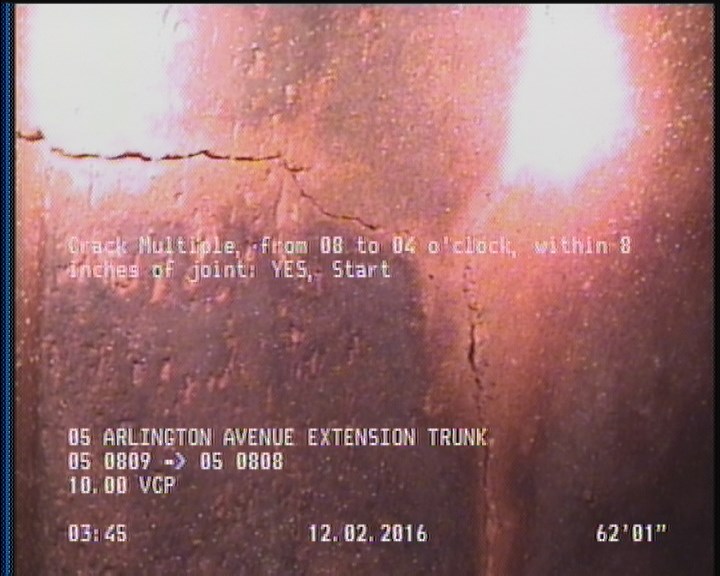

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    62.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

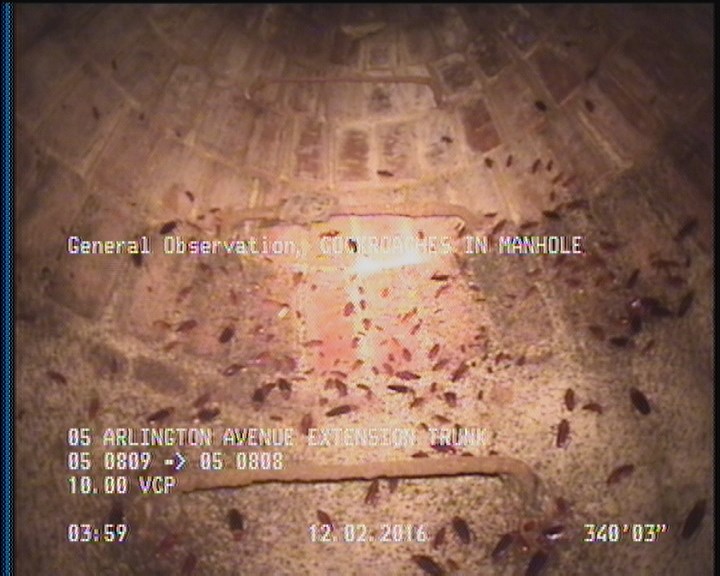

  • General Observation - COCKROACHES IN MANHOLE

    340.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P06040Work order 602600

Observations (24)

DistanceCodeObservation
174.3TF—
338.3DAGS—
25.4CM—
0MWM—
324.7TFC—
171.5TF—
0MWL—
121.3TF—
0AMH05 0809
124.2TFC—
24.1TFC—
221.8TF—
340.3MGOCOCKROACHES IN MANHOLE
62.1CM—
21.5TFC—
224.4TF—
322.2TFC—
71.2TFC—
271.9TFC—
74.2TF—
340.3AMH05 0808
274.5TFC—
2DAGS—
338.3CM—

Properties (6)

additional_info
SC306418
custom_field_two
3
customer
LACSD
datetime
2016-12-02T03:41:06-08:00
documentation
PRO PIPE
is_lateral_inspection
false
