Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 29, 2016, 06:55 AM

  • 05 0837_05 0836 _11282016_225551.mp4

Date
11/28/2016
W/O
602600
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00419
PipeID
P06067
Time
10:55 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4023
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
WO_602600_TV05009_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0837
Downstream MH
05 0836
Dir. of Survey
Downstream
Length Surveyed
164.1 ft.
Total Length
164.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2E00
O&M Rating
64
Overall Index
2
Overall Quick
—
Overall Rating
64
Pipe schematic from manhole 05 0837 to 05 0836
MH: 05 0837MH: 05 0836downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 08370 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start161.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish164.1 ft. MGO - General Observation - CAPPED CONNECTION AT MH 9 O'CLOCK164.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE164.1 ft. AMH - Downstream Manhole, Survey Ends - 05 0836

Observation photos (2)

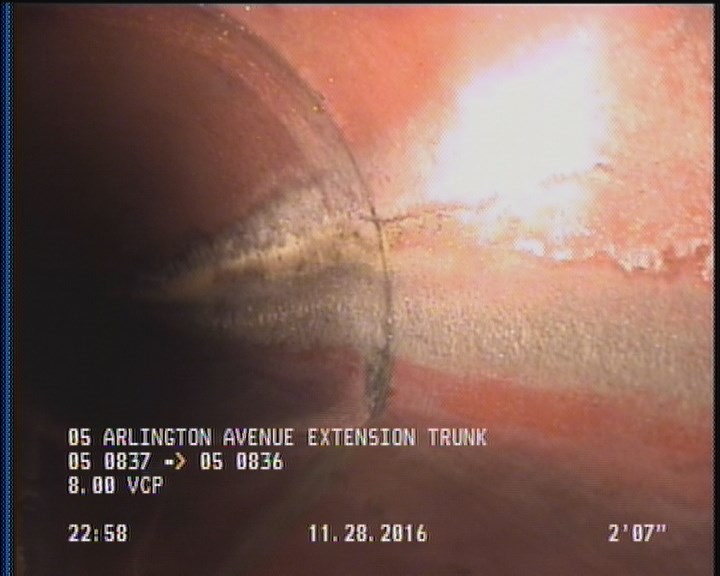

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

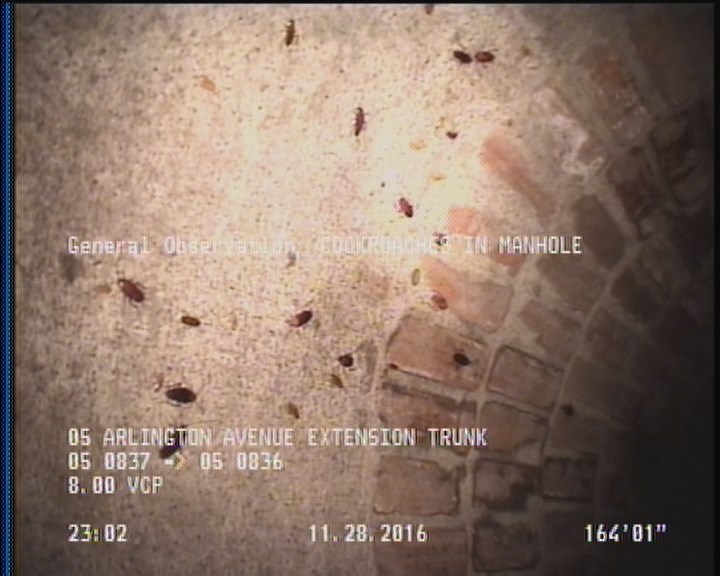

  • General Observation - COCKROACHES IN MANHOLE

    164.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P06067Work order 602600

Observations (10)

DistanceCodeObservation
161.7DAGS—
0MWM—
2DAGS—
0MGOCOCKROACHES IN MANHOLE
164.1MGOCAPPED CONNECTION AT MH 9 O'CLOCK
164.1MGOCOCKROACHES IN MANHOLE
0MWL—
164.1AMH05 0836
0AMH05 0837
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (6)

additional_info
SC306415
custom_field_two
4
customer
LACSD
datetime
2016-11-28T22:55:29-08:00
documentation
PRO PIPE
is_lateral_inspection
false
