Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 23, 2016, 08:08 AM

  • 05 0189_05 0188 _23112016_000839.mp4

Date
11/23/2016
W/O
602594
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05481
Time
12:08 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3833
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Capital Improvement Program Assesment
Project
WO_602594_TV05228_NOV2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0188
Downstream MH
05 0189
Dir. of Survey
Upstream
Length Surveyed
336.5 ft.
Total Length
336.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4132
O&M Rating
14
Overall Index
2
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 05 0188 to 05 0189
MH: 05 0188MH: 05 0189upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 018921.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"61 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"62.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"67.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"102.7 ft. RFC - Roots Fine Connection, at 10 o'clock102.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"152.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"157.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"196.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"196.3 ft. RFL - Roots Fine Lateral, at 02 o'clock205.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"251.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"251.7 ft. RFC - Roots Fine Connection, at 10 o'clock254.9 ft. RFC - Roots Fine Connection, at 02 o'clock254.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"303 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"306 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"306 ft. RMC - Roots Medium Connection, at 02 o'clock, 15 %, within 8 inches of joint: NO336.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK336.6 ft. MWM - Water Mark, 20 %of cross sectional area336.6 ft. AMH - Downstream Manhole, Survey Begins - 05 0188336.6 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (5)

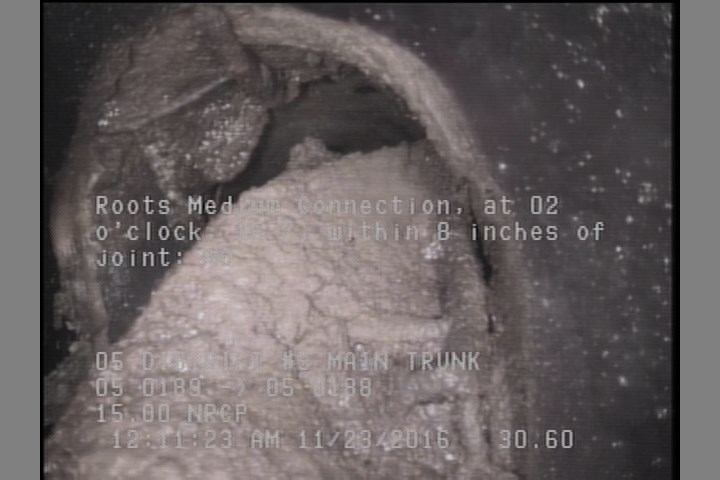

  • Roots Medium Connection, at 02 o'clock, 15 %, within 8 inches of joint: NO

    30.6 ft. - Roots Medium Connection, at 02 o'clock, 15 %, within 8 inches of joint: NO

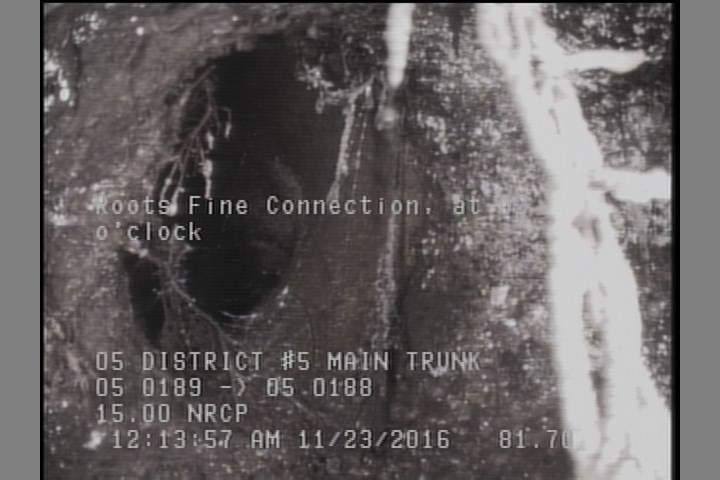

  • Roots Fine Connection, at 02 o'clock

    81.7 ft. - Roots Fine Connection, at 02 o'clock

  • Roots Fine Connection, at 10 o'clock

    84.9 ft. - Roots Fine Connection, at 10 o'clock

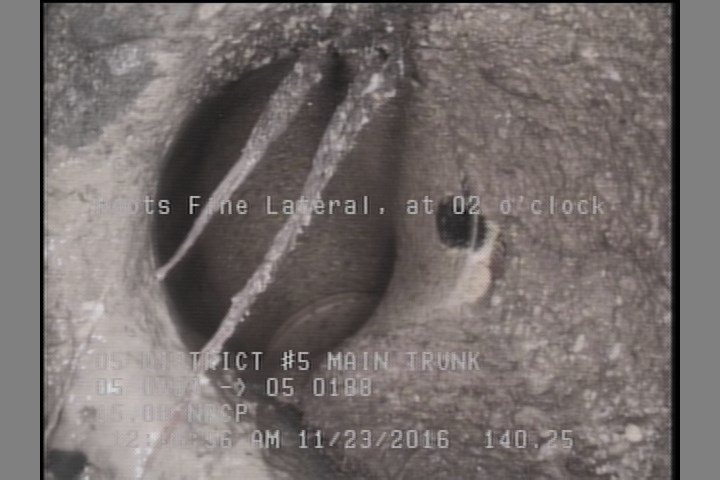

  • Roots Fine Lateral, at 02 o'clock

    140.3 ft. - Roots Fine Lateral, at 02 o'clock

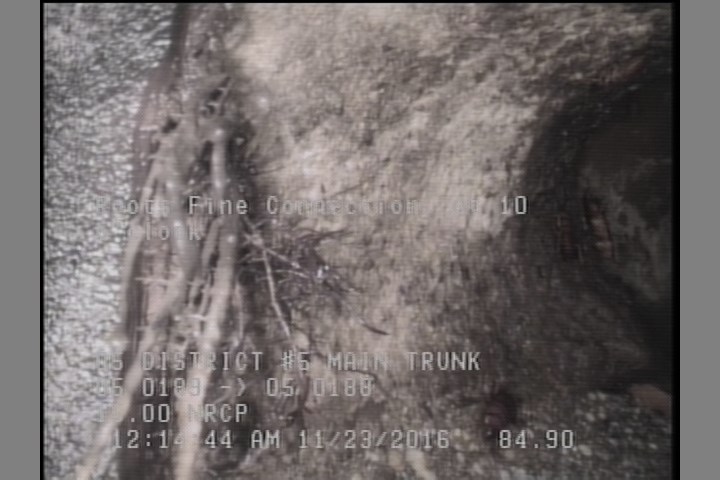

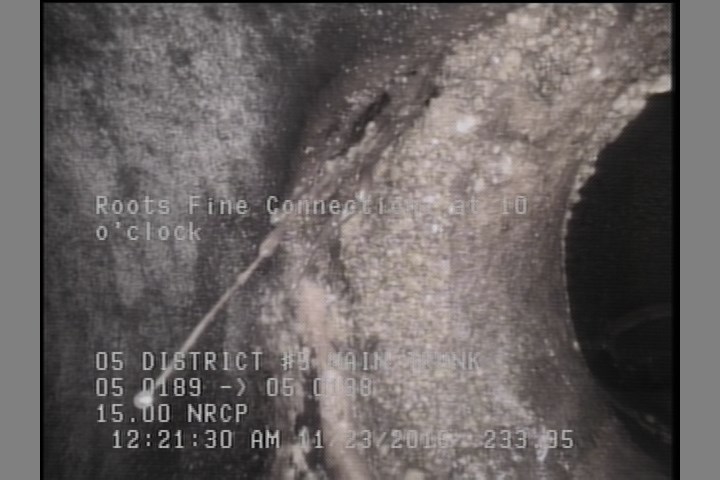

  • Roots Fine Connection, at 10 o'clock

    233.9 ft. - Roots Fine Connection, at 10 o'clock

All inspections of P05481Work order 602594

Observations (23)

DistanceCodeObservation
315.4TF—
30.6TF—
273.7TF—
269.3TF—
84.9TF—
0MGOCONNECTION AT MH 3 O'CLOCK
81.7RFC—
275.6TFC—
233.9RFC—
0MWM—
0AMH05 0188
130.8TF—
184.1TF—
30.6RMC—
233.9TF—
84.9RFC—
140.3TF—
336.6AMH05 0189
0MWL—
140.3RFL—
179.1TF—
33.6TF—
81.7TF—

Properties (7)

additional_info
SC304583
custom_field_two
4
customer
LACSD
datetime
2016-11-23T00:08:07-08:00
documentation
PROPIPE
is_lateral_inspection
false
lining
CIPP
