Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 23, 2016, 09:20 AM

  • 05 0190_05 0189 _23112016_012011.mp4

Date
11/23/2016
W/O
602594
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05482
Time
1:20 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3833
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Routine Assessment
Project
WO_602594_TV05228_NOV2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0190
Downstream MH
05 0189
Dir. of Survey
Downstream
Length Surveyed
322.1 ft.
Total Length
322.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3514
O&M Rating
19
Overall Index
2
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 05 0190 to 05 0189
MH: 05 0190MH: 05 0189downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 05 01900 ft. MWL - Water Level, 10 %of cross sectional area0.1 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH44.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"46.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"65.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"65.3 ft. RFL - Roots Fine Lateral, at 10 o'clock97.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"108.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"144 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"144 ft. RFL - Roots Fine Lateral, at 10 o'clock192.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"192.4 ft. RFC - Roots Fine Connection, at 10 o'clock194.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"194.5 ft. RFL - Roots Fine Lateral, at 02 o'clock240.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"243.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"286.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"292.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"292.1 ft. RMC - Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: NO297.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"297.8 ft. RMC - Roots Medium Connection, from 08 to 10 o'clock, 35 %, within 8 inches of joint: NO303.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"303.2 ft. RML - Roots Medium Lateral, at 02 o'clock, 25 %, within 8 inches of joint: NO322.1 ft. AMH - Downstream Manhole, Survey Ends - 05 0189

Observation photos (7)

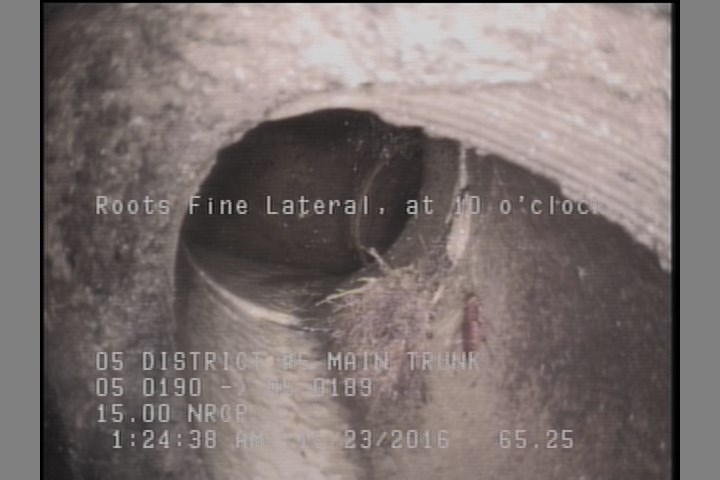

  • Roots Fine Lateral, at 10 o'clock

    65.3 ft. - Roots Fine Lateral, at 10 o'clock

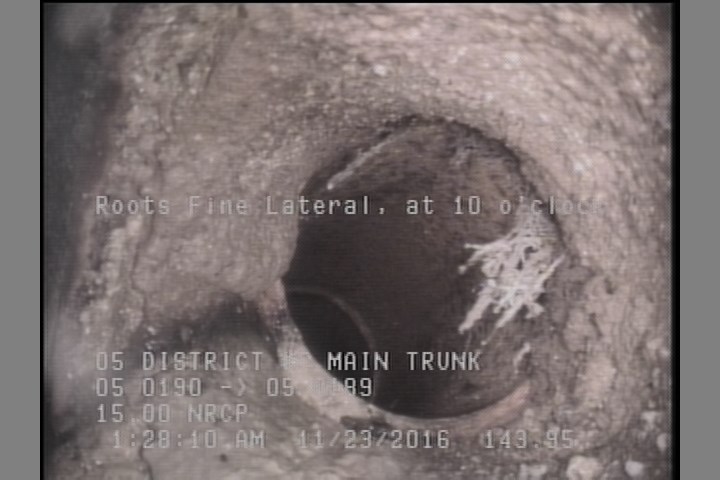

  • Roots Fine Lateral, at 10 o'clock

    144 ft. - Roots Fine Lateral, at 10 o'clock

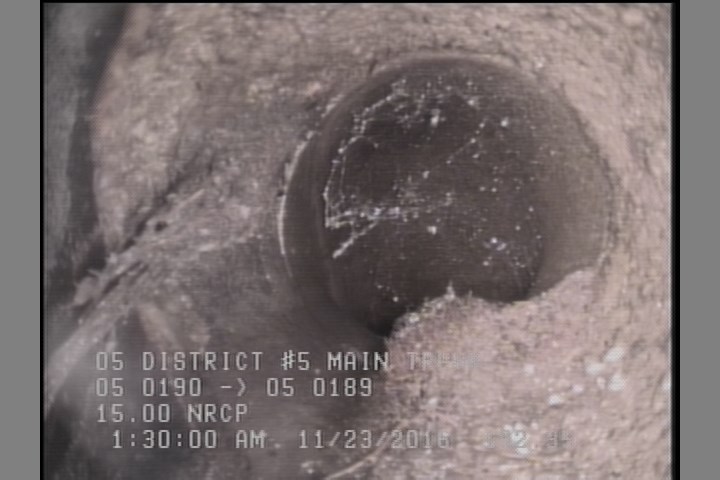

  • Roots Fine Connection, at 10 o'clock

    192.4 ft. - Roots Fine Connection, at 10 o'clock

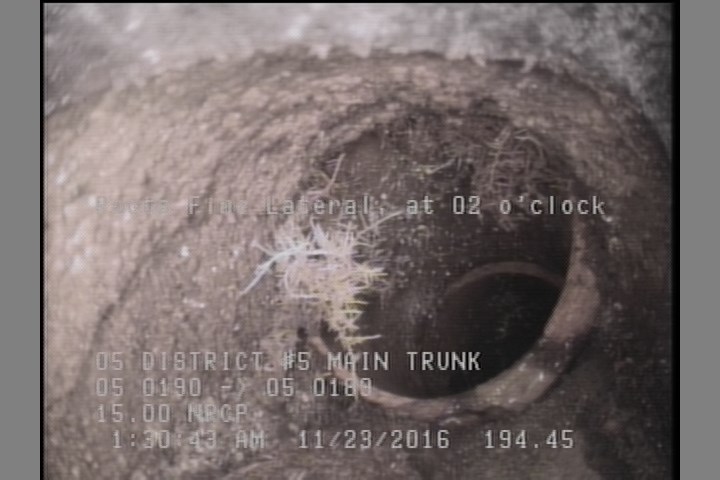

  • Roots Fine Lateral, at 02 o'clock

    194.5 ft. - Roots Fine Lateral, at 02 o'clock

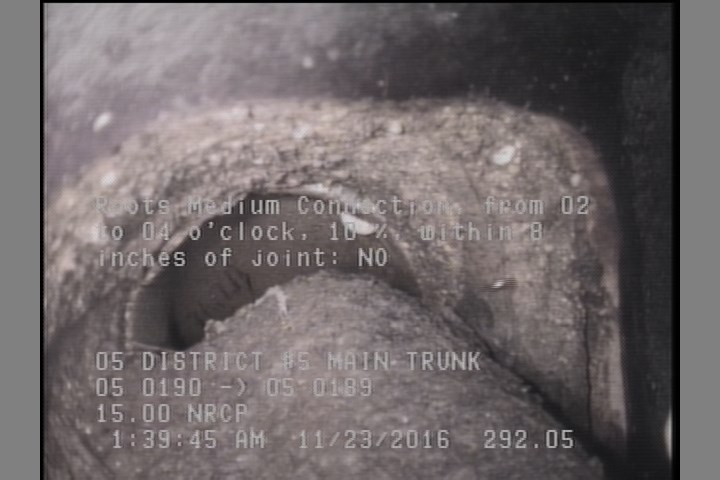

  • Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: NO

    292.1 ft. - Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: NO

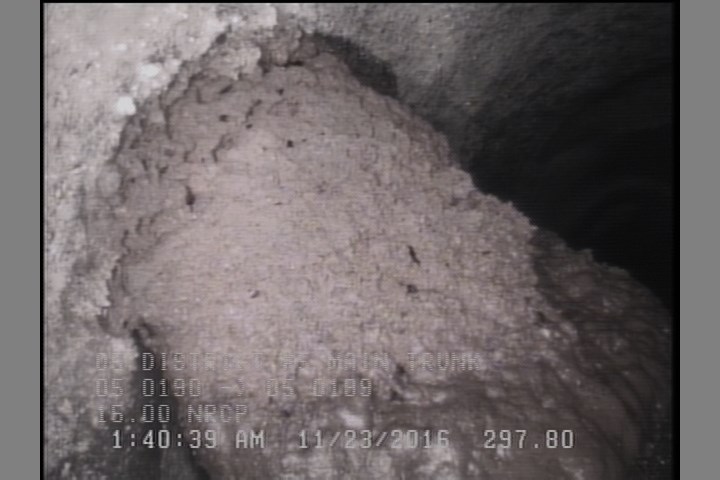

  • Roots Medium Connection, from 08 to 10 o'clock, 35 %, within 8 inches of joint: NO

    297.8 ft. - Roots Medium Connection, from 08 to 10 o'clock, 35 %, within 8 inches of joint: NO

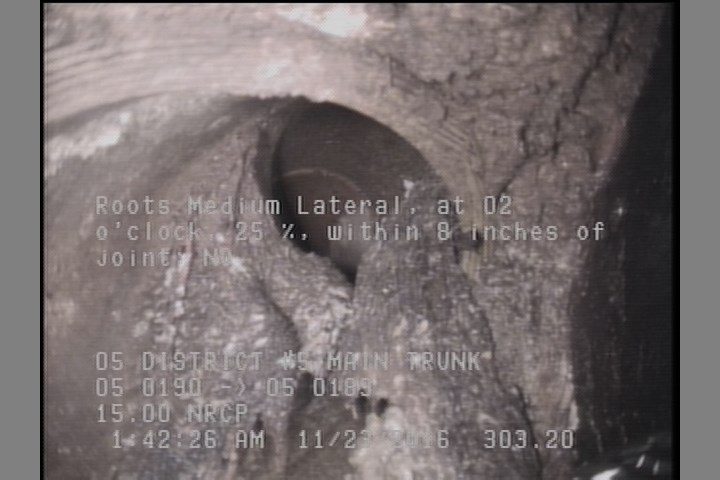

  • Roots Medium Lateral, at 02 o'clock, 25 %, within 8 inches of joint: NO

    303.2 ft. - Roots Medium Lateral, at 02 o'clock, 25 %, within 8 inches of joint: NO

All inspections of P05482Work order 602594

Observations (27)

DistanceCodeObservation
0MWM—
97.9TF—
240.7TF—
44.3TF—
192.4TF—
297.8TF—
144TF—
65.3TF—
0MGOCAPPED LATERAL 3 O'CLOCK @ MH
194.5TF—
292.1TF—
0AMH05 0190
46.1TF—
0.1MGOCAPPED LATERAL 9 O'CLOCK @ MH
192.4RFC—
303.2TF—
108.2TF—
243.1TF—
322.1AMH05 0189
286.8TF—
292.1RMC—
65.3RFL—
297.8RMC—
194.5RFL—
144RFL—
303.2RML—
0MWL—

Properties (7)

additional_info
SC304583
custom_field_two
4
customer
LACSD
datetime
2016-11-23T01:20:05-08:00
documentation
PROPIPE
is_lateral_inspection
false
lining
CIPP
