Wastewater/Activity/PacpInspection/1.0Dec 1, 2016, 07:08 AM
05 0089_05 0088 _30112016_230929.mp4
- Date
- 11/30/2016
- W/O
- 602594
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00431
- PipeID
- P05379
- Time
- 11:08 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3838
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- HAWTHORNE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_602594_TV05228_NOV2016
- Sewer Type
- Gravity
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- 05 0089
- Downstream MH
- 05 0088
- Dir. of Survey
- Downstream
- Length Surveyed
- 454 ft.
- Total Length
- 454 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (1)

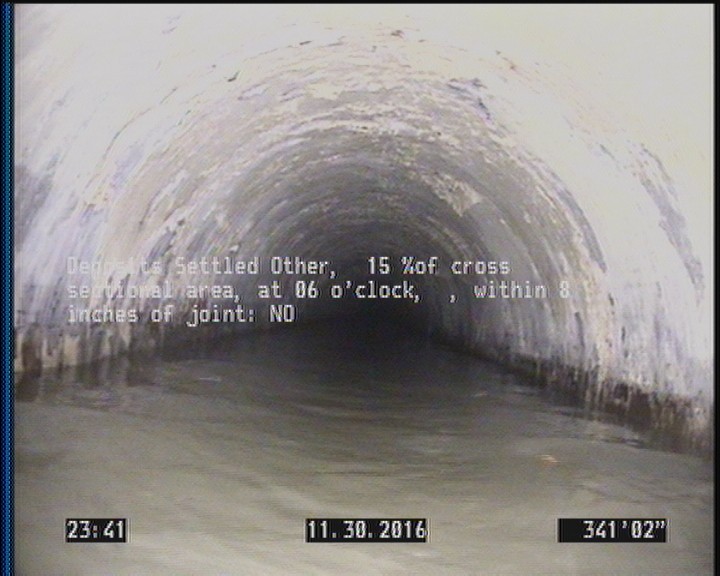

341.2 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 454 | MSA | CAM NOT PULLING SLIPPING ON PIPE |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 05 0089 |
| 341.2 | DSZ | — |
Properties (7)
- additional_info
- SC304588
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-11-30T23:08:55-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- lining
- FR POLY LINE
