Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 28, 2016, 09:14 AM

  • 05 0180_05 0179 _28112016_011510.mp4

Date
11/28/2016
W/O
602594
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05472
Time
1:14 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3834
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
WO_602594_TV05228_NOV2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0180
Downstream MH
05 0179
Dir. of Survey
Downstream
Length Surveyed
335.5 ft.
Total Length
335.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4131
O&M Rating
9
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 05 0180 to 05 0179
MH: 05 0180MH: 05 0179downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 01800 ft. MWL - Water Level, 10 %of cross sectional area78.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"82.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"84.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"169.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"171.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"203.3 ft. RFL - Roots Fine Lateral, at 02 o'clock203.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"252.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"252.4 ft. RFC - Roots Fine Connection, at 02 o'clock277 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"291.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"323.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"335.5 ft. AMH - Downstream Manhole, Survey Ends - 05 0179

Observation photos (2)

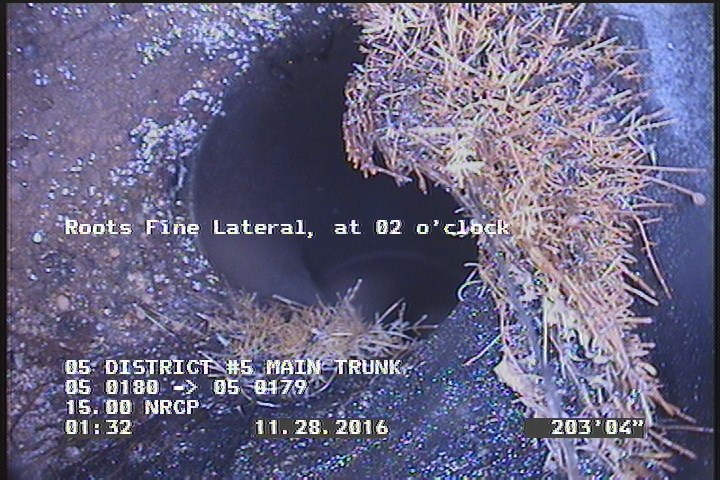

  • Roots Fine Lateral, at 02 o'clock

    203.3 ft. - Roots Fine Lateral, at 02 o'clock

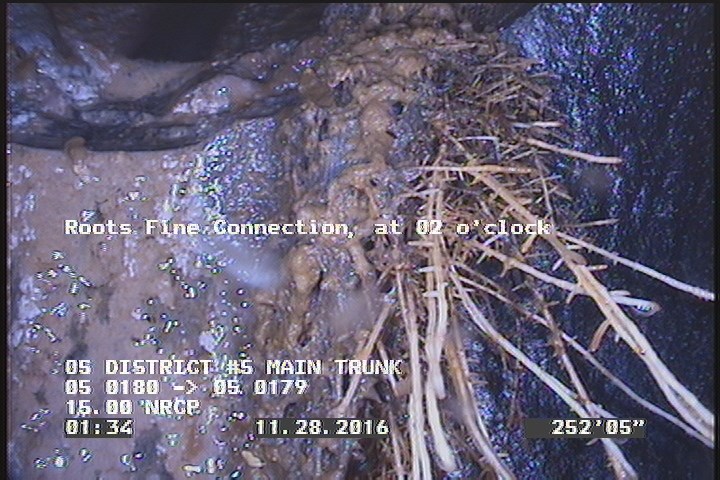

  • Roots Fine Connection, at 02 o'clock

    252.4 ft. - Roots Fine Connection, at 02 o'clock

All inspections of P05472Work order 602594

Observations (17)

DistanceCodeObservation
78.4TF—
84.1TF—
203.3RFL—
252.4TF—
291.8TF—
252.4RFC—
203.3TF—
323.9TF—
82.3TF—
169.6TF—
0MWM—
0AMH05 0180
171.3TF—
0MWL—
335.5AMH05 0179
277TF—
104.4TF—

Properties (7)

additional_info
SC304584
custom_field_two
4
customer
LACSD
datetime
2016-11-28T01:14:49-08:00
documentation
PROPIPE
is_lateral_inspection
false
lining
CIPP
