Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 23, 2016, 08:56 AM

  • 05 0191_05 0190 _23112016_010152.mp4

Date
11/23/2016
W/O
602594
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05483
Time
12:56 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3833
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Routine Assessment
Project
WO_602594_TV05228_NOV2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0191
Downstream MH
05 0190
Dir. of Survey
Downstream
Length Surveyed
351.3 ft.
Total Length
351.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
1300
O&M Rating
3
Overall Index
1
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 05 0191 to 05 0190
MH: 05 0191MH: 05 0190downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 01910 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area4.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"37.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"68.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"110.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"146.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"149.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"149.2 ft. RFL - Roots Fine Lateral, at 02 o'clock168.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"185.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"223.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"223.6 ft. RFL - Roots Fine Lateral, at 10 o'clock230.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"244.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"266.6 ft. RFL - Roots Fine Lateral, at 02 o'clock266.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"309.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"312.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"324.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"327.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"351.2 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH351.3 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH351.3 ft. AMH - Downstream Manhole, Survey Ends - 05 0190

Observation photos (3)

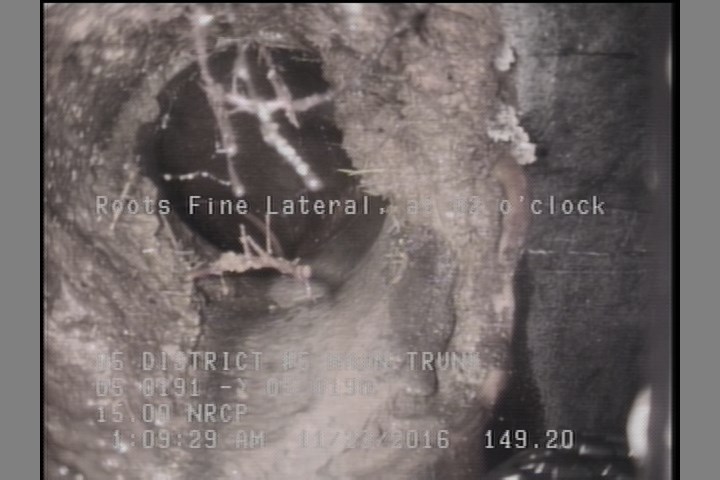

  • Roots Fine Lateral, at 02 o'clock

    149.2 ft. - Roots Fine Lateral, at 02 o'clock

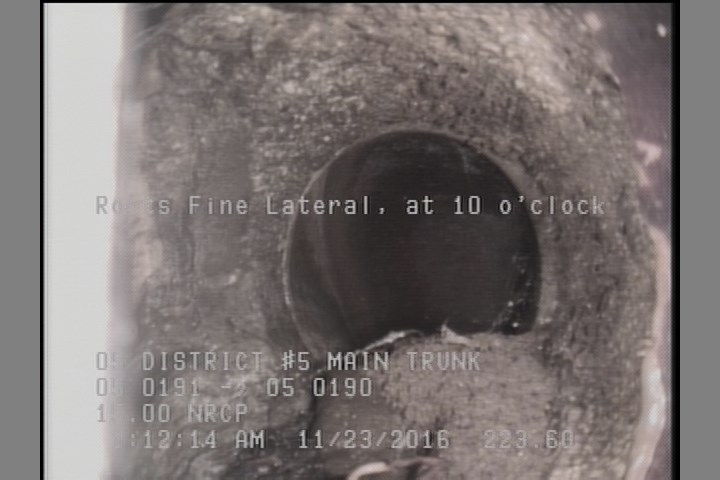

  • Roots Fine Lateral, at 10 o'clock

    223.6 ft. - Roots Fine Lateral, at 10 o'clock

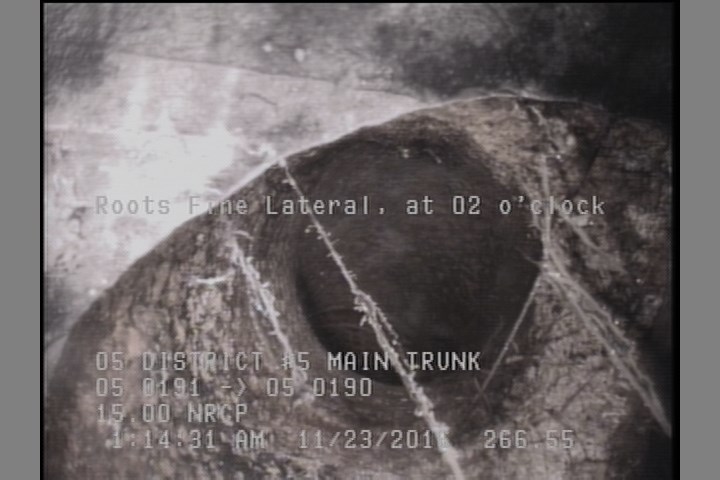

  • Roots Fine Lateral, at 02 o'clock

    266.6 ft. - Roots Fine Lateral, at 02 o'clock

All inspections of P05483Work order 602594

Observations (25)

DistanceCodeObservation
110.8TF—
351.3MGOCAPPED LATERAL 3 O'CLOCK @ MH
4.4TF—
68.3TF—
0AMH05 0191
223.6RFL—
266.6RFL—
149.2TF—
324.9TF—
266.6TF—
230.4TF—
309.6TF—
149.2RFL—
37.4TF—
0MWM—
351.2MGOCAPPED LATERAL 9 O'CLOCK @ MH
185.1TF—
312.2TF—
223.5TF—
168.7TF—
351.3AMH05 0190
146.4TF—
244.9TF—
327.5TF—
0MWL—

Properties (7)

additional_info
SC304583
custom_field_two
4
customer
LACSD
datetime
2016-11-23T00:56:43-08:00
documentation
PROPIPE
is_lateral_inspection
false
lining
CIPP
