Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 23, 2016, 07:38 AM

  • 05 0187_05 0186 _22112016_233847.mp4

Date
11/22/2016
W/O
602594
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05479
Time
11:38 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3833
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Routine Assessment
Project
WO_602594_TV05228_NOV2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0187
Downstream MH
05 0186
Dir. of Survey
Downstream
Length Surveyed
292.1 ft.
Total Length
292.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4234
O&M Rating
23
Overall Index
3
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 05 0187 to 05 0186
MH: 05 0187MH: 05 0186downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 018719.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"23.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"70.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"74.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"126.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"131.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"185.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"188.9 ft. RFC - Roots Fine Connection, at 10 o'clock190.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"238 ft. RFC - Roots Fine Connection, at 10 o'clock238.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"243.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"289 ft. RFC - Roots Fine Connection, from 08 to 10 o'clock289 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"292.1 ft. RMC - Roots Medium Connection, at 02 o'clock, 20 %, within 8 inches of joint: NO292.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"292.1 ft. MSA - Survey Abandoned - CAMERA FLIPPED OVER DUE TO ROOTS

Observation photos (4)

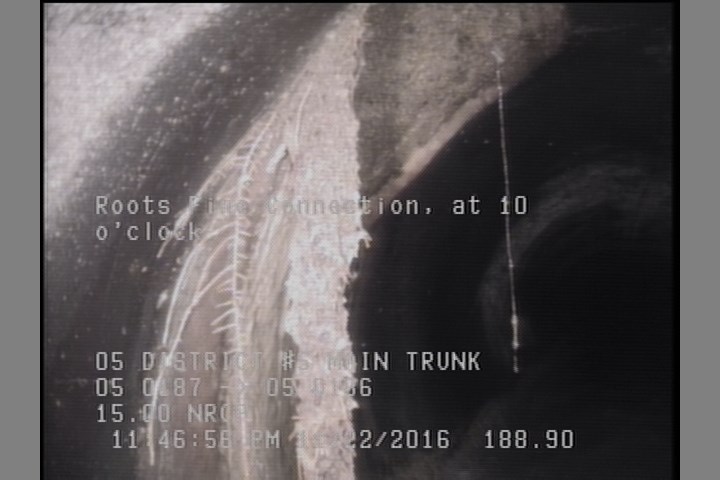

  • Roots Fine Connection, at 10 o'clock

    188.9 ft. - Roots Fine Connection, at 10 o'clock

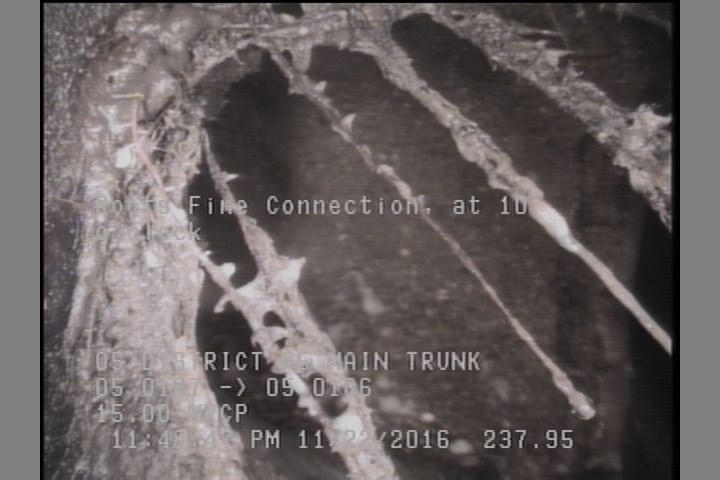

  • Roots Fine Connection, at 10 o'clock

    238 ft. - Roots Fine Connection, at 10 o'clock

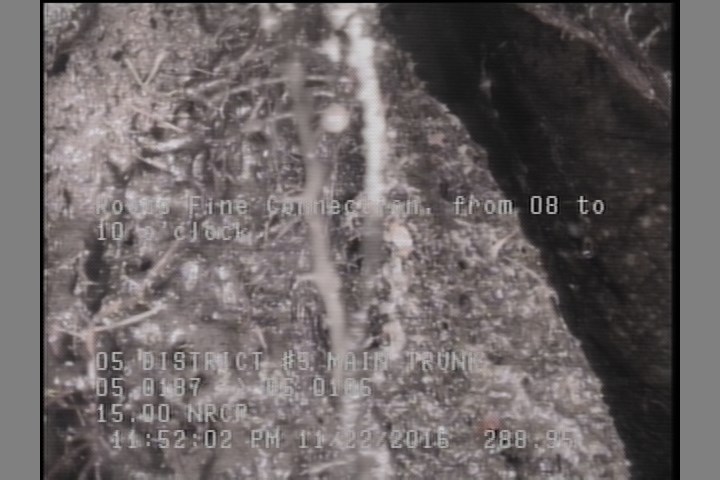

  • Roots Fine Connection, from 08 to 10 o'clock

    289 ft. - Roots Fine Connection, from 08 to 10 o'clock

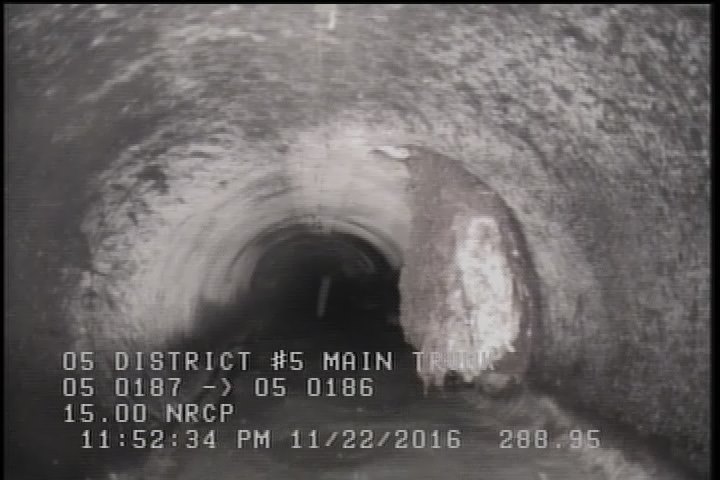

  • Roots Medium Connection, at 02 o'clock, 20 %, within 8 inches of joint: NO

    292.1 ft. - Roots Medium Connection, at 02 o'clock, 20 %, within 8 inches of joint: NO

All inspections of P05479Work order 602594

Observations (20)

DistanceCodeObservation
190.6TF—
243.7TF—
292.1RMC—
289RFC—
289TF—
131.9TF—
23.1TF—
292.1TF—
0MWL—
126.4TF—
188.9RFC—
185.3TF—
19.9TF—
0MWM—
74.3TF—
238.1TF—
292.1MSACAMERA FLIPPED OVER DUE TO ROOTS
70.8TF—
238RFC—
0AMH05 0187

Properties (7)

additional_info
SC304583
custom_field_two
5
customer
LACSD
datetime
2016-11-22T23:38:13-08:00
documentation
PROPIPE
is_lateral_inspection
false
lining
CIPP
