Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 11:45 AM
18 0658_18 0657 _12022016_040038.mp4
- Date
- 12/02/2016
- W/O
- 602450
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00696
- PipeID
- P14507
- Time
- 3:45 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3895
- Sewer Name
- 18 PHOEBE AVENUE TRUNK
- City
- LA MIRADA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_602450_TV18081_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 18 0657
- Downstream MH
- 18 0658
- Dir. of Survey
- Upstream
- Length Surveyed
- 297.5 ft.
- Total Length
- 297.6 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 116
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 124
Observation photos (3)

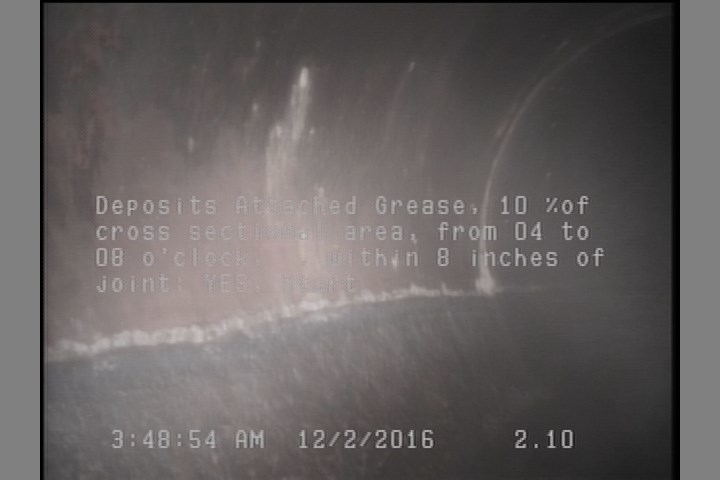

2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

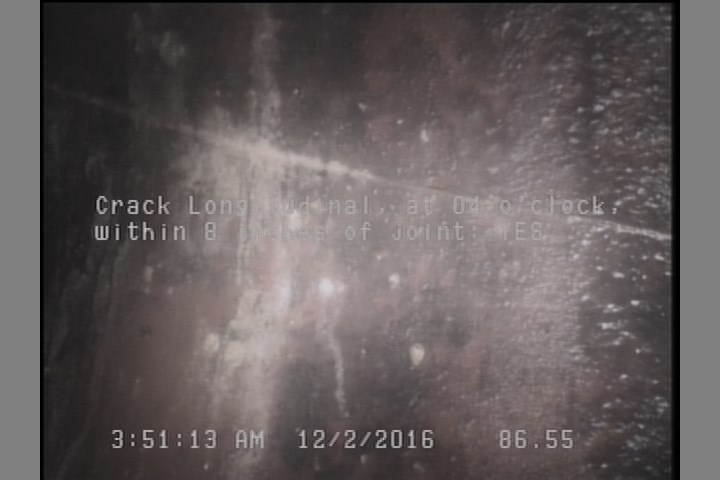

86.6 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

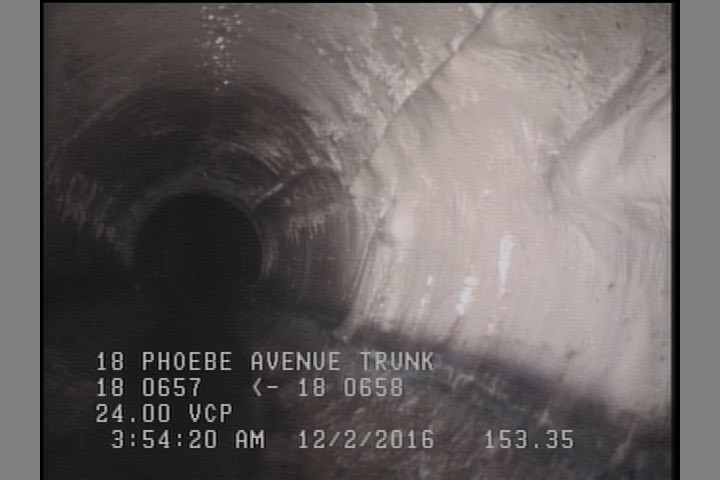

153.4 ft. - Lining Failure Wrinkled, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 91.7 | TFC | — |
| 2.1 | DAGS | — |
| 293.3 | DAGS | — |
| 86.6 | CL | — |
| 163.4 | MGO | END LINER |
| 289.5 | TFA | — |
| 86.6 | TFC | — |
| 0 | MWM | — |
| 138.8 | MGO | STARTLINER |
| 188.2 | TFA | — |
| 153.4 | LFW | — |
| 0 | AMH | 18 0657 |
| 0 | MWL | — |
| 297.6 | AMH | 18 0658 |
| 284.5 | TFC | — |
| 163.3 | LFW | — |
| 193.4 | TFC | — |
Properties (6)
- additional_info
- SC305229
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-02T03:45:34-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
