Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 08:51 AM

  • 18 0671_18 0670 _12022016_005857.mp4

Date
12/02/2016
W/O
602450
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00696
PipeID
P14520
Time
12:51 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3895
Sewer Name
18 PHOEBE AVENUE TRUNK
City
LA MIRADA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
36
Purpose
Routine Assessment
Project
WO_602450_TV18081_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0670
Downstream MH
18 0671
Dir. of Survey
Upstream
Length Surveyed
164.6 ft.
Total Length
164.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2E00
O&M Rating
64
Overall Index
2
Overall Quick
—
Overall Rating
67
Pipe schematic from manhole 18 0670 to 18 0671
MH: 18 0670MH: 18 0671upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 06711.9 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish16.3 ft. CM - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES, Finish23.2 ft. CM - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES, Start140.6 ft. MGO - General Observation - MAGNESIUM H.O. START162.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start164.6 ft. AMH - Downstream Manhole, Survey Begins - 18 0670164.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK ACTIVE164.6 ft. MWL - Water Level, 10 %of cross sectional area164.6 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

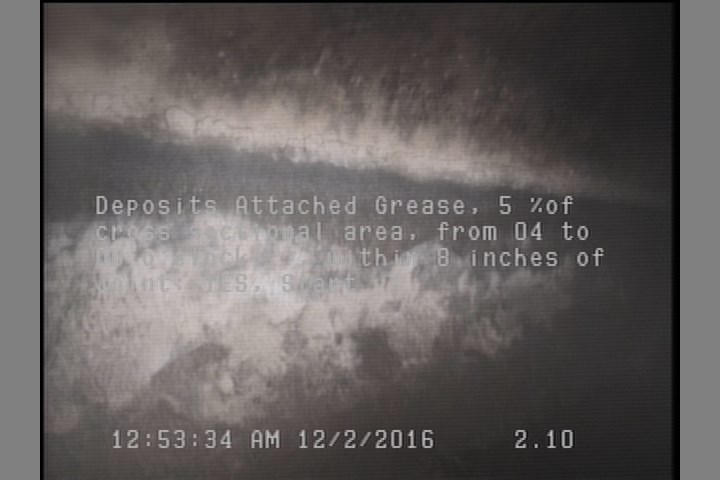

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

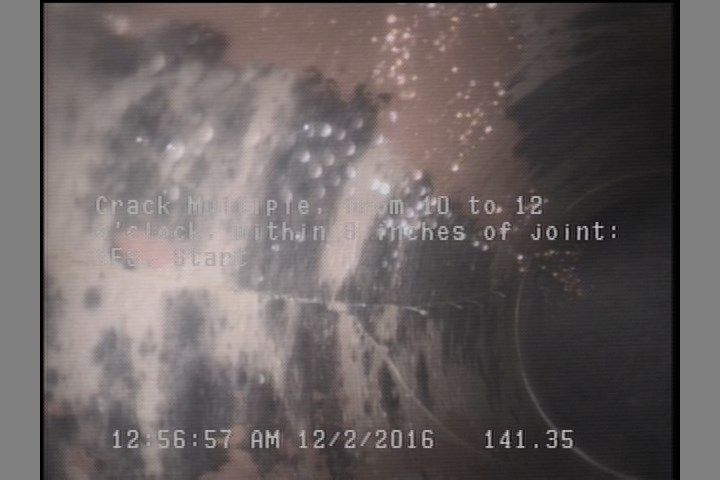

  • Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES, Start

    141.4 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P14520Work order 602450

Observations (11)

DistanceCodeObservation
148.3CM—
162.5DAGS—
0AMH18 0670
141.4CM—
24MGOMAGNESIUM H.O. START
0MGOCONNECTION AT MH 3 O'CLOCK ACTIVE
0MWL—
2.1DAGS—
0MWM—
164.6AMH18 0671
162.7MGOMAGNEZIUM H.O. FINISH

Properties (6)

additional_info
SC305229
custom_field_two
3
customer
LACSD
datetime
2016-12-02T00:51:41-08:00
documentation
PRO PIPE
is_lateral_inspection
false
