Wastewater/Activity/PacpInspection/1.0Nov 22, 2016, 06:32 AM
B 0564_B 0563 _11212016_225223.mp4
- Date
- 11/21/2016
- W/O
- 602270
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00101
- PipeID
- P09112
- Time
- 10:32 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3885
- Sewer Name
- B JOINT OUTFALL B - UNIT 7
- City
- MONTEREY PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_602270_TV15120_NOV2016
- Sewer Type
- Gravity
- Material
- CIP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- B 0564
- Downstream MH
- B 0563
- Dir. of Survey
- Downstream
- Length Surveyed
- 386.6 ft.
- Total Length
- 386.6 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 1
- O&M Quick
- 2113
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

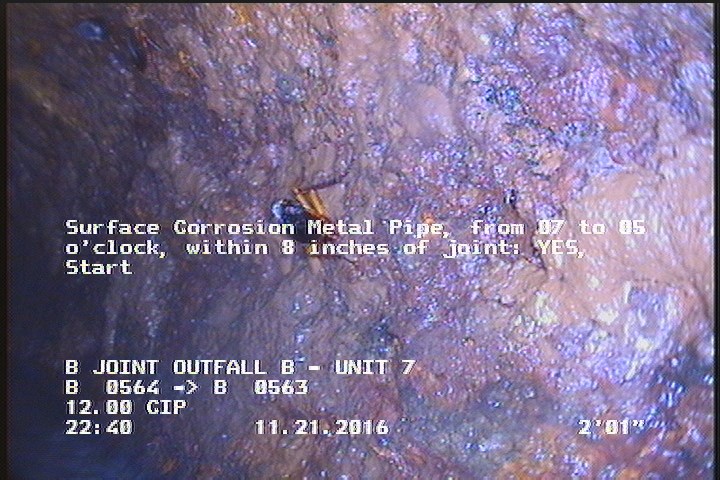

2.1 ft. - Surface Corrosion Metal Pipe, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

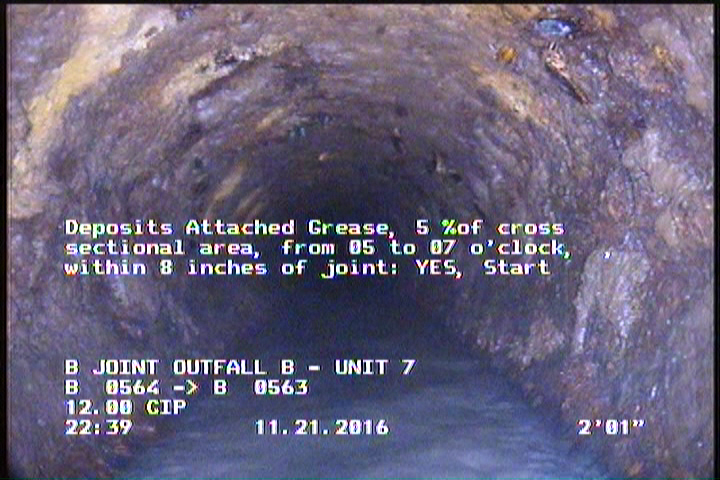

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0564 |
| 0 | MWL | — |
| 386.6 | VC | AT MH |
| 0 | VC | AT MH |
| 386.6 | AMH | B 0563 |
| 383.7 | SCP | — |
| 2.1 | SCP | — |
| 383.7 | DAGS | — |
| 2.1 | DAGS | — |
| 344.2 | VC | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC305218
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-21T22:32:39-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
