Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 29, 2016, 06:20 AM

  • E 0101_E 0067_28092016_224436.mp4

Date
09/28/2016
W/O
592161
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00030
PipeID
P11299
Time
11:20 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3594
Sewer Name
E JOINT OUTFALL E - UNIT 4
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_592161_TV01079_SEP2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
E 0101
Downstream MH
E 0067
Dir. of Survey
Downstream
Length Surveyed
281.3 ft.
Total Length
281.3 ft.
Structural Index
3
Structural Quick
513H
Structural Rating
140
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
144
Pipe schematic from manhole E 0101 to E 0067
MH: E 0101MH: E 0067downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 7 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - E 01012.2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start8 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES80.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish136.9 ft. SAV - Surface Aggregate Visible, at 02 o'clock, within 8 inches of joint: NO140.4 ft. SAV - Surface Aggregate Visible, at 10 o'clock, within 8 inches of joint: NO145.6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start278.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish281.3 ft. AMH - Downstream Manhole, Survey Ends - E 0101

Observation photos (6)

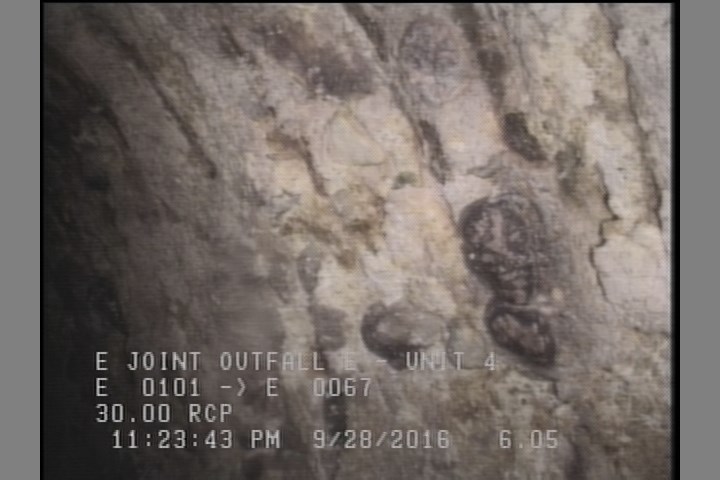

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

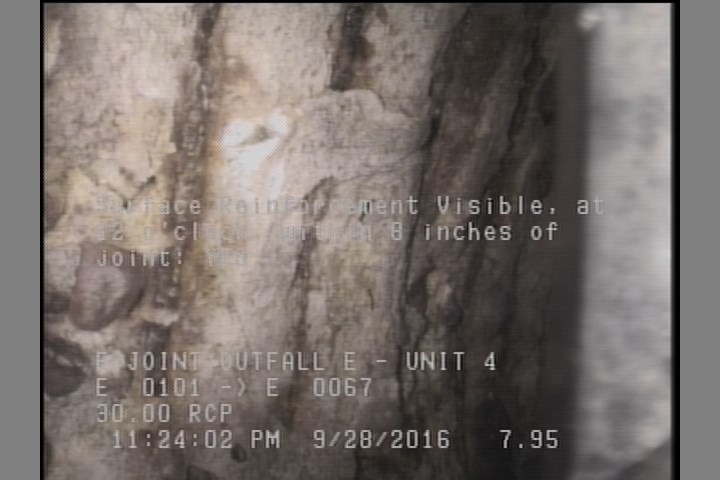

  • Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

    8 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

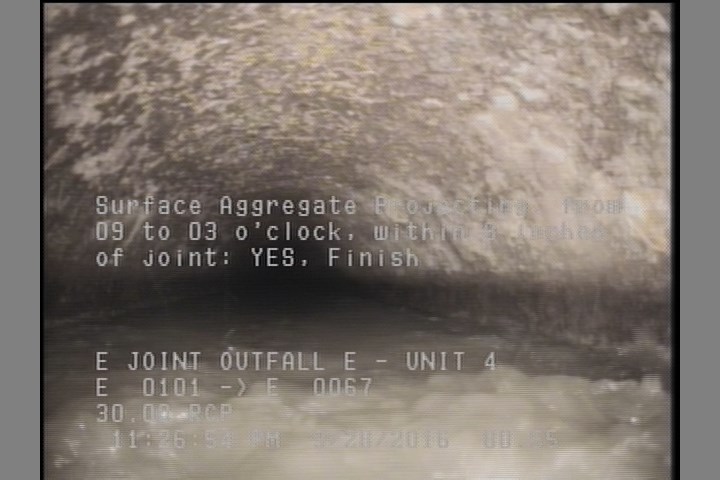

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

    80.6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

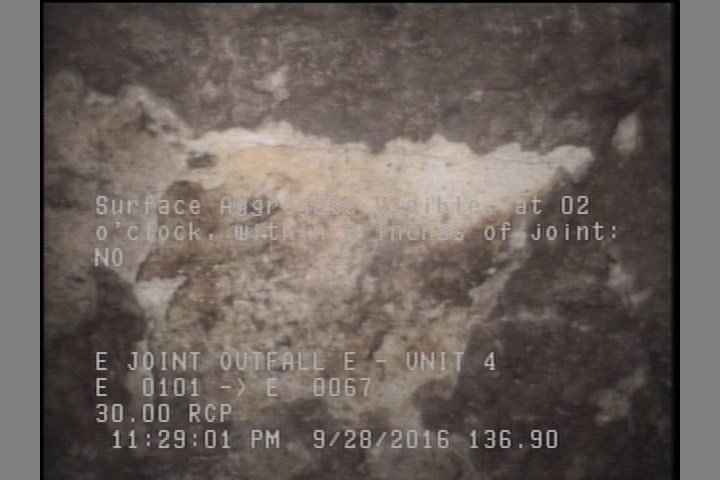

  • Surface Aggregate Visible, at 02 o'clock, within 8 inches of joint: NO

    136.9 ft. - Surface Aggregate Visible, at 02 o'clock, within 8 inches of joint: NO

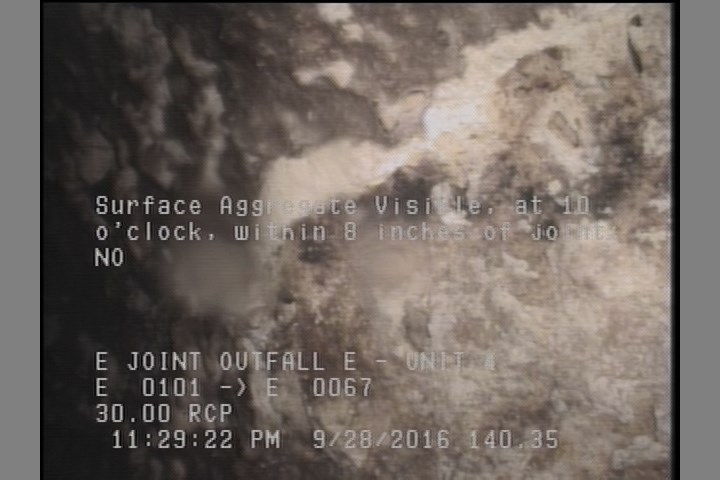

  • Surface Aggregate Visible, at 10 o'clock, within 8 inches of joint: NO

    140.4 ft. - Surface Aggregate Visible, at 10 o'clock, within 8 inches of joint: NO

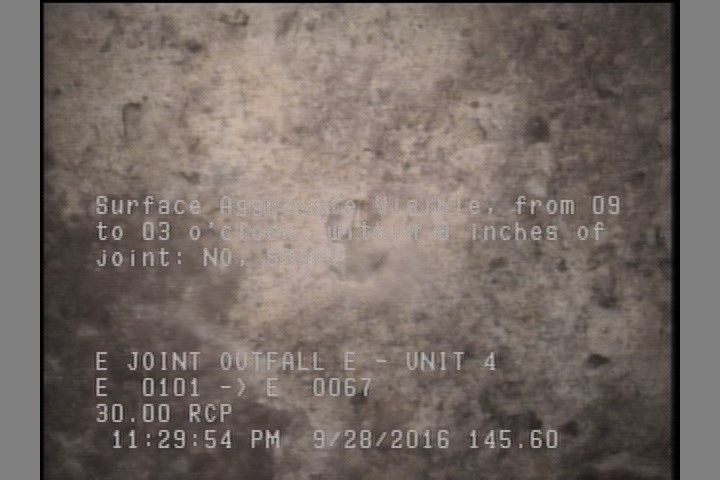

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

    145.6 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

All inspections of P11299Work order 592161

Observations (13)

DistanceCodeObservation
0MWM—
136.9SAV—
0MWL—
0MGOCONNECTION AT MH 7 O'CLOCK
0MGOCONNECTION AT MH 6 O'CLOCK
0AMHE 0101
8SRV—
281.3AMHE 0101
2.2SAP—
145.6SAV—
278.3SAV—
140.4SAV—
80.6SAP—

Properties (6)

additional_info
SC306189
custom_field_two
3
customer
LACSD
datetime
2016-09-28T23:20:07-07:00
documentation
PROPIPE
is_lateral_inspection
false
