Wastewater/Activity/PacpInspection/1.0Sep 30, 2016, 05:06 AM
01 0710_01 0709_29092016_220703.mp4
- Date
- 09/29/2016
- W/O
- 591536
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00199
- PipeID
- P01419
- Time
- 10:06 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3596
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- HUNTINGTON PARK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_591536_TV01117_SEP2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 01 0710
- Downstream MH
- 01 0709
- Dir. of Survey
- Downstream
- Length Surveyed
- 467.5 ft.
- Total Length
- 467.5 ft.
- Structural Index
- 3
- Structural Quick
- 3Q00
- Structural Rating
- 267
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 267
Observation photos (2)

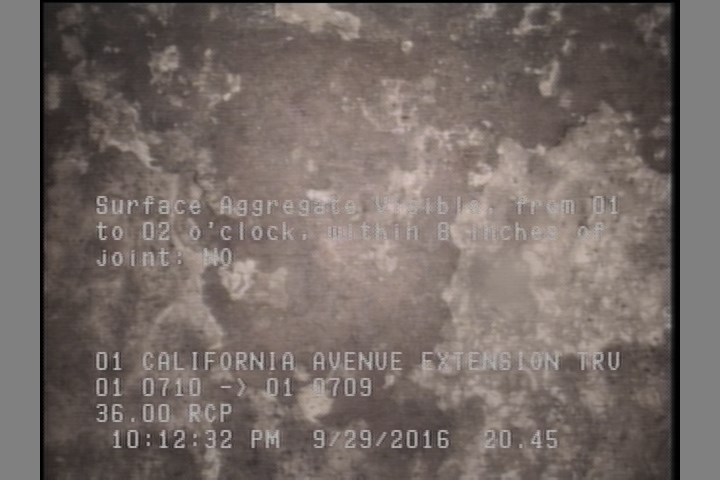

20.5 ft. - Surface Aggregate Visible, from 01 to 02 o'clock, within 8 inches of joint: NO

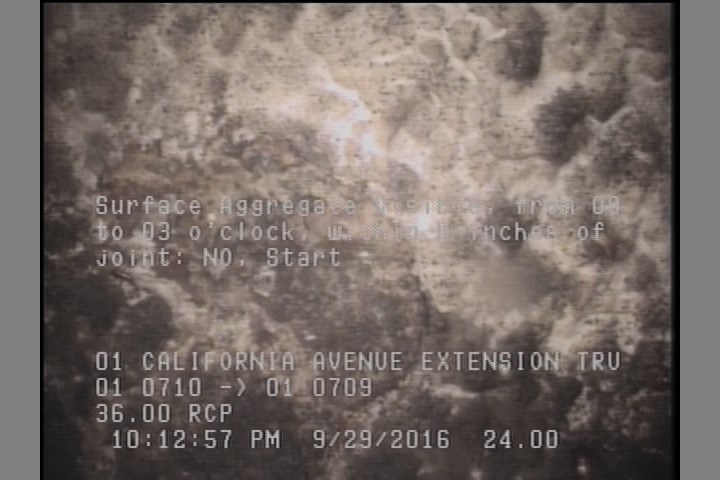

24 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 24 | SAV | — |
| 0 | AMH | 01 0710 |
| 0 | MWM | — |
| 8.3 | MGO | MAG COAT 40% |
| 464.8 | SAV | — |
| 467.5 | AMH | 01 0709 |
| 20.5 | SAV | — |
Properties (6)
- additional_info
- SC306191
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-09-29T22:06:46-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
