Wastewater/Activity/PacpInspection/1.0Oct 4, 2016, 08:39 AM
H 0107_01 0715_04102016_013948.mp4
- Date
- 10/04/2016
- W/O
- 591536
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00199
- PipeID
- P02173
- Time
- 1:39 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3598
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- SOUTH GATE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_591536_TV01117_SEP2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 0107
- Downstream MH
- 01 0715
- Dir. of Survey
- Downstream
- Length Surveyed
- 6.9 ft.
- Total Length
- 6.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

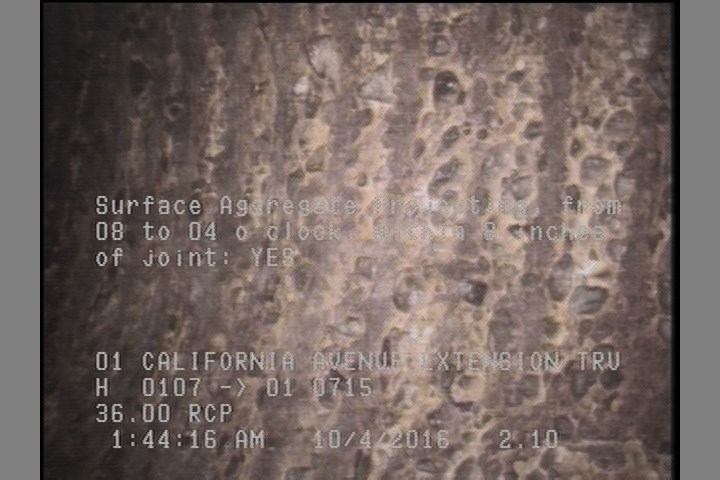

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

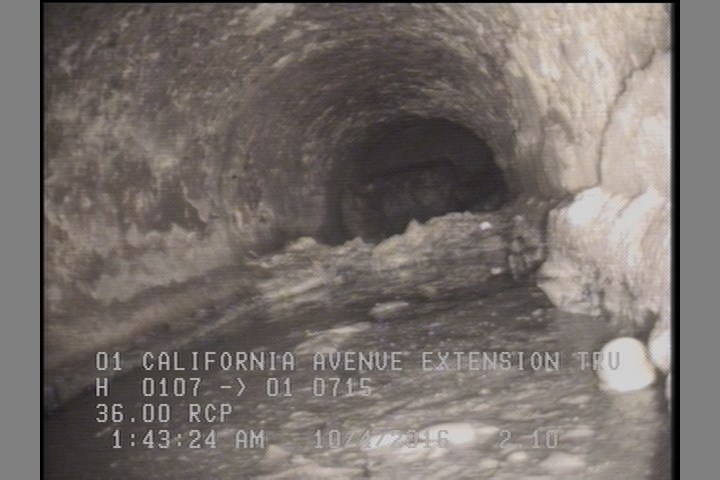

2.1 ft. - Deposits Settled Other, 20 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAP | — |
| 0 | AMH | H 0107 |
| 6.9 | AMH | 01 0715 ZOOMED IN |
| 0 | MWM | — |
| 2.1 | DSZ | — |
| 0 | MWL | — |
| 6.9 | SAP | — |
Properties (6)
- additional_info
- SC306193
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-04T01:39:09-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
