Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 30, 2016, 07:32 AM

  • 01 0704_01 0703_30092016_003236.mp4

Date
09/30/2016
W/O
591536
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00199
PipeID
P01413
Time
12:32 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3596
Sewer Name
01 CALIFORNIA AVENUE EXTENSION TRUNK
City
SOUTH GATE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Routine Assessment
Project
WO_591536_TV01117_SEP2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
01 0704
Downstream MH
01 0703
Dir. of Survey
Downstream
Length Surveyed
458.8 ft.
Total Length
458.8 ft.
Structural Index
3
Structural Quick
3Q00
Structural Rating
273
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
273
Pipe schematic from manhole 01 0704 to 01 0703
MH: 01 0704MH: 01 0703downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 07040 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start2.1 ft. MGO - General Observation - MAG COAT 50%58.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start58.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish458.8 ft. AMH - Downstream Manhole, Survey Ends - 01 0703458.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK458.8 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish

Observation photos (2)

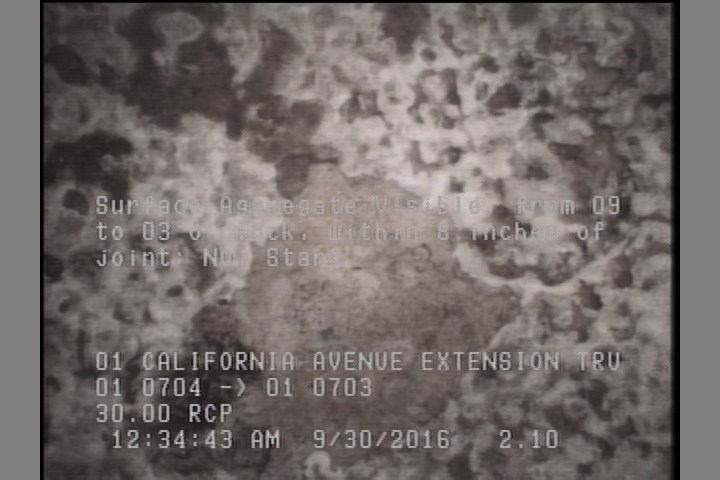

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

    2.1 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

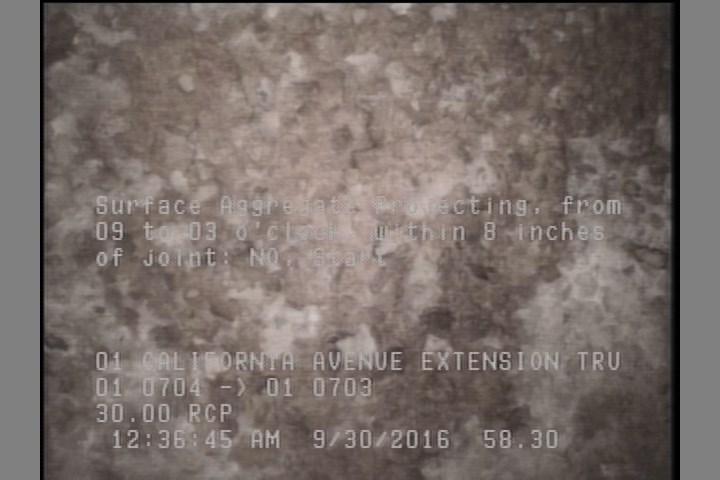

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

    58.3 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

All inspections of P01413Work order 591536

Observations (10)

DistanceCodeObservation
58.3SAP—
0AMH01 0704
458.8AMH01 0703
58.3SAV—
0MWM—
0MWL—
2.1SAV—
458.8MGOCONNECTION AT MH 9 O'CLOCK
2.1MGOMAG COAT 50%
458.8SAP—

Properties (6)

additional_info
SC306191
custom_field_two
3
customer
LACSD
datetime
2016-09-30T00:32:05-07:00
documentation
PROPIPE
is_lateral_inspection
false
