Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 4, 2016, 10:57 AM

  • G 0196_01 0668_04102016_035711.mp4

Date
10/04/2016
W/O
591536
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00199
PipeID
P19970
Time
3:57 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3598
Sewer Name
01 CALIFORNIA AVENUE EXTENSION TRUNK
City
LYNWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_591536_TV01117_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
G 0196
Downstream MH
01 0668
Dir. of Survey
Downstream
Length Surveyed
9.8 ft.
Total Length
9.8 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole G 0196 to 01 0668
MH: G 0196MH: 01 0668downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - G 01960 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area3.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO3.2 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES7.9 ft. LL - Alignment Left, 50 %9.8 ft. AMH - Downstream Manhole, Survey Ends - 01 0668

Observation photos (3)

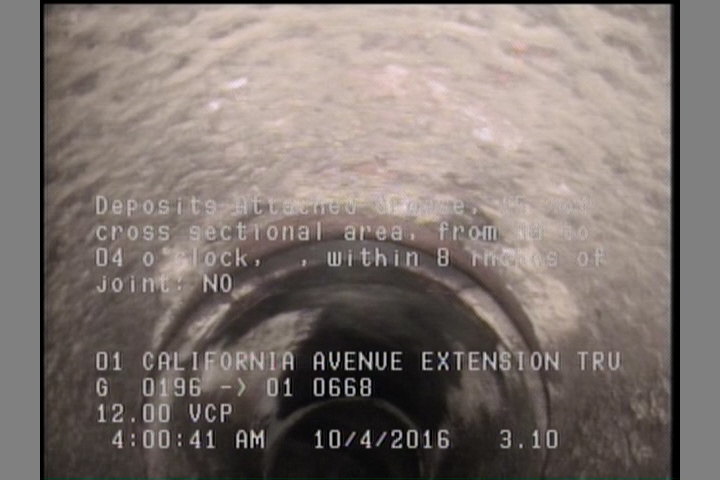

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

    3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

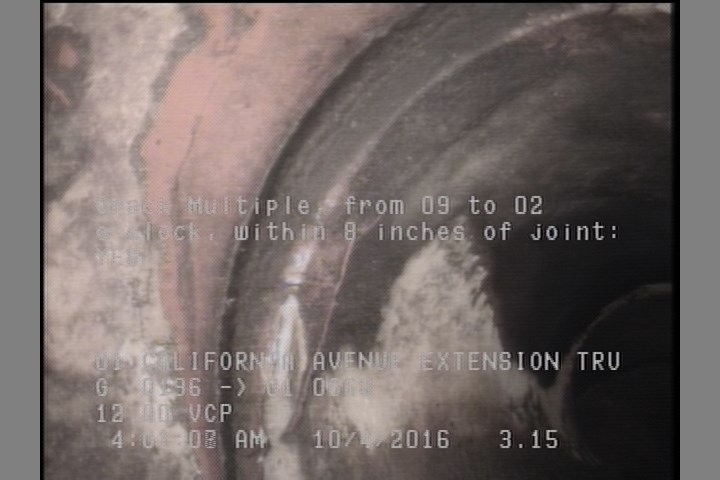

  • Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

    3.2 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

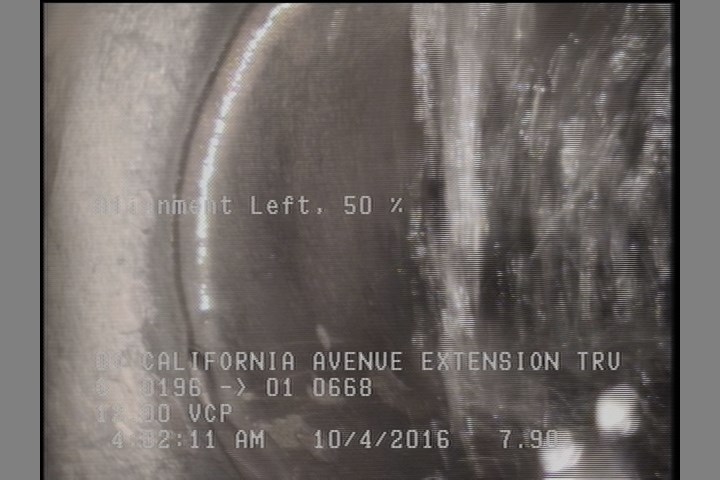

  • Alignment Left, 50 %

    7.9 ft. - Alignment Left, 50 %

All inspections of P19970Work order 591536

Observations (8)

DistanceCodeObservation
0MGOCONNECTION AT MH 3 O'CLOCK
0AMHG 0196
0MWL—
3.2CM—
9.8AMH01 0668
7.9LL—
3.1DAGS—
0MWM—

Properties (6)

additional_info
SC306193
custom_field_two
3
customer
LACSD
datetime
2016-10-04T03:57:05-07:00
documentation
PROPIPE
is_lateral_inspection
false
