Wastewater/Activity/PacpInspection/1.0Sep 30, 2016, 08:00 AM
01 0700_01 0699_30092016_010116.mp4
- Date
- 09/30/2016
- W/O
- 591536
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00199
- PipeID
- P01409
- Time
- 1:00 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3596
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- SOUTH GATE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_591536_TV01117_SEP2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 01 0700
- Downstream MH
- 01 0699
- Dir. of Survey
- Downstream
- Length Surveyed
- 418 ft.
- Total Length
- 418 ft.
- Structural Index
- 3
- Structural Quick
- 3P2A
- Structural Rating
- 271
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 271
Observation photos (4)

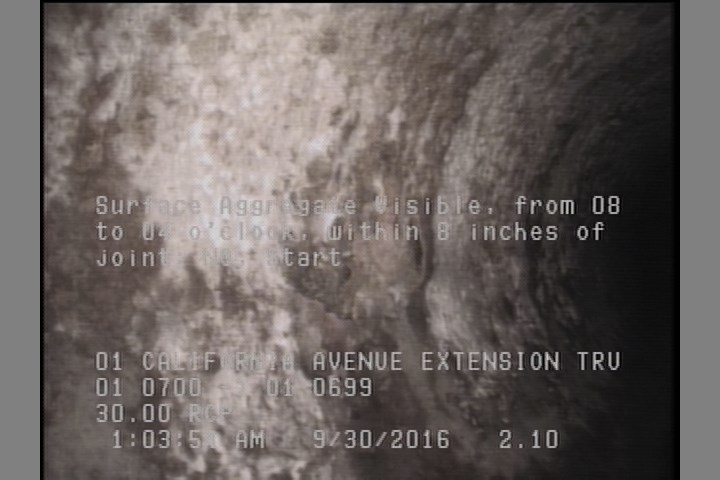

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

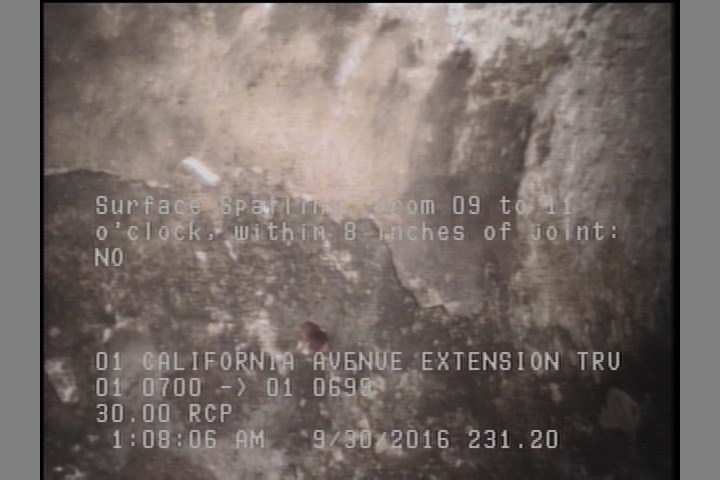

231.2 ft. - Surface Spalling, from 09 to 11 o'clock, within 8 inches of joint: NO

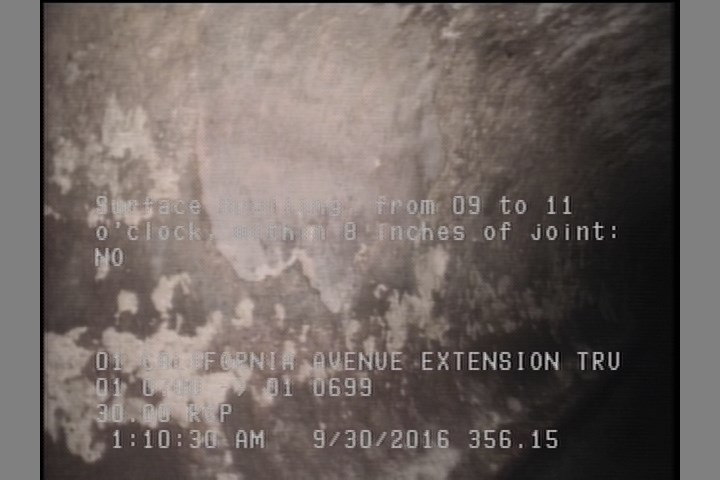

356.2 ft. - Surface Spalling, from 09 to 11 o'clock, within 8 inches of joint: NO

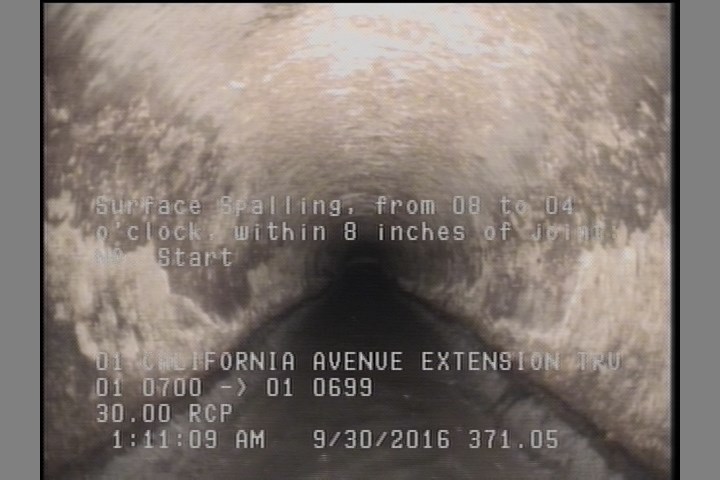

371.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.1 | SAV | — |
| 2.1 | MGO | MAG COAT 50% |
| 356.2 | SSS | — |
| 0 | MWL | — |
| 371.1 | SSS | — |
| 418 | AMH | 01 0699 |
| 418 | SSS | — |
| 418 | SAV | — |
| 0 | AMH | 01 0700 |
| 231.2 | SSS | — |
Properties (6)
- additional_info
- SC306191
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-09-30T01:00:41-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
