Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2018, 08:47 AM

  • 22 0246_22 0245 _11012018_004757.mp4

Date
01/11/2018
W/O
679679
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16528
Time
12:47 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5410
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_679679_TV22160_JAN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0245
Downstream MH
22 0246
Dir. of Survey
Upstream
Length Surveyed
305.5 ft.
Total Length
305.5 ft.
Structural Index
3
Structural Quick
3K2K
Structural Rating
305
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
305
Pipe schematic from manhole 22 0245 to 22 0246
MH: 22 0245MH: 22 0246upstream0 ft. MGO - General Observation - CAPPED LATERAL 12 O'CLOCK @ MH0 ft. AMH - Upstream Manhole, Survey Ends - 22 02460 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish18.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"52.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"55.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"79.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"82.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"144.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"145.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"211.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"213.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"257.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"263.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"303.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start303.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start305.5 ft. AMH - Downstream Manhole, Survey Begins - 22 0245305.5 ft. MWM - Water Mark, 25 %of cross sectional area305.5 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (2)

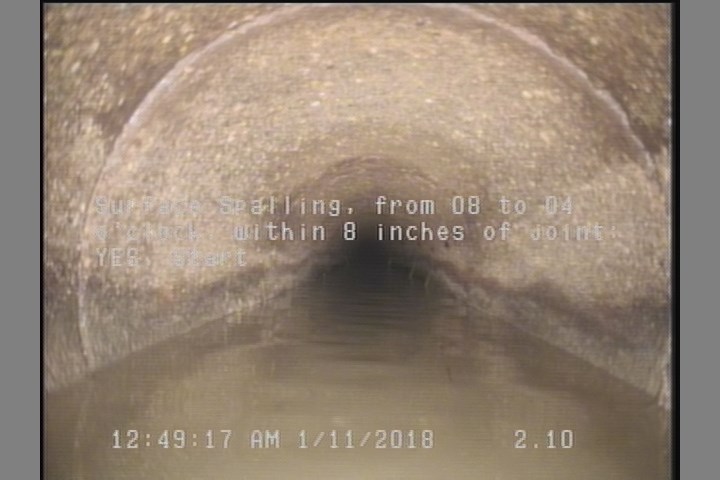

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

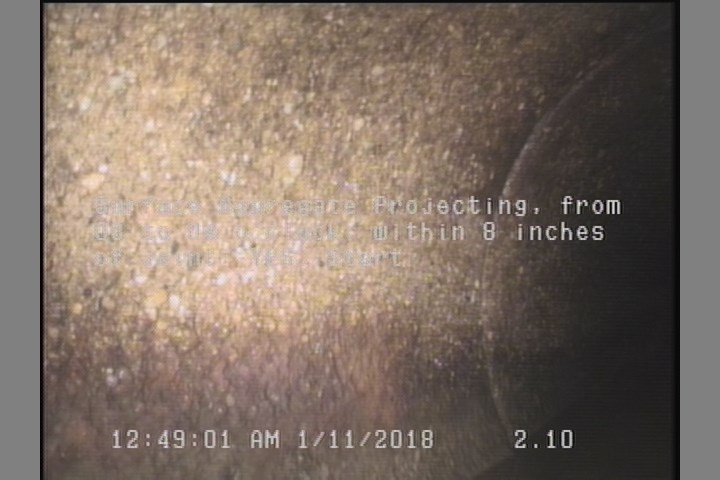

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16528Work order 679679

Observations (20)

DistanceCodeObservation
253.4TFC—
305.3SAP—
0AMH22 0245
305.5MGOCAPPED LATERAL 12 O'CLOCK @ MH
287.2TFC—
2.1SSS—
160.1TFC—
48TF—
2.1SAP—
250.2TF—
94.1TFC—
91.8TFC—
0MWM—
226.1TF—
42TFC—
223.1TFC—
305.5AMH22 0246
161.4TFC—
305.5SSS—
0MWL—

Properties (6)

additional_info
SC346784
custom_field_two
3
customer
LACSD
datetime
2018-01-11T00:47:33-08:00
documentation
PROPIPE
is_lateral_inspection
false
