Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2018, 07:18 AM

  • 22 0248_22 0247 _10012018_231836.mp4

Date
01/10/2018
W/O
679679
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16530
Time
11:18 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5410
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_679679_TV22160_JAN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0248
Downstream MH
22 0247
Dir. of Survey
Downstream
Length Surveyed
294.8 ft.
Total Length
294.8 ft.
Structural Index
3
Structural Quick
3K2J
Structural Rating
288
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
291
Pipe schematic from manhole 22 0248 to 22 0247
MH: 22 0248MH: 22 0247downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02480 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area2.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start11.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"52.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"83.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"104.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"159.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"183.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"184.6 ft. RFB - Roots Fine Barrell, at 12 o'clock204.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"218.1 ft. RFJ - Roots Fine Joint, from 10 to 12 o'clock, within 8 inches of joint: YES223.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"250.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"293.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish294.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK294.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish294.8 ft. AMH - Downstream Manhole, Survey Ends - 22 0247

Observation photos (3)

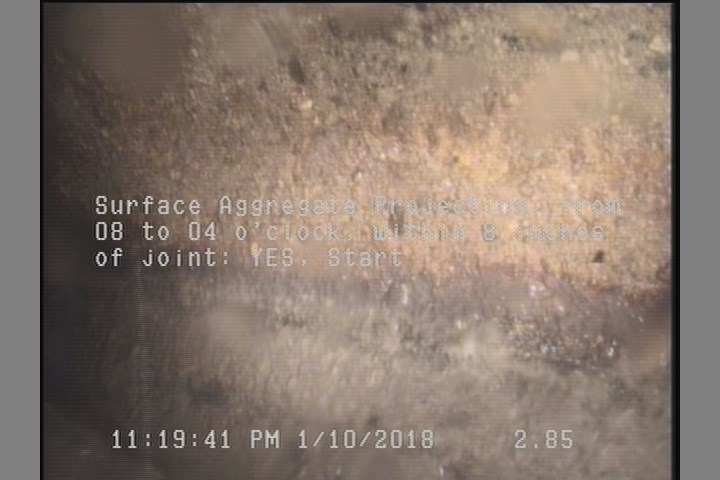

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

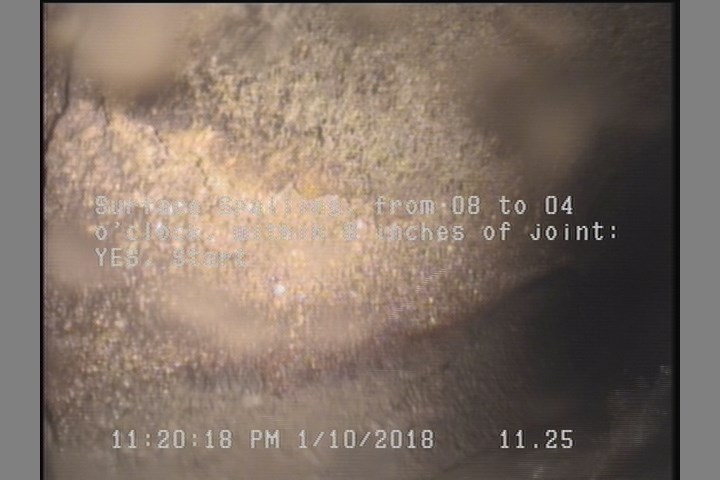

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

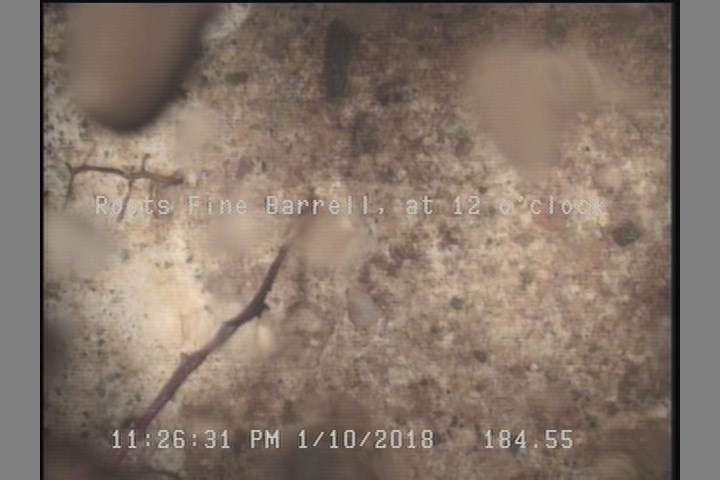

  • Roots Fine Barrell, at 12 o'clock

    184.6 ft. - Roots Fine Barrell, at 12 o'clock

All inspections of P16530Work order 679679

Observations (21)

DistanceCodeObservation
0AMH22 0248
223.1TFC—
294.8MGOCONNECTION AT MH 3 O'CLOCK
183.7TFC—
159.1TFC—
128.9TFC—
184.6RFB—
83.2TFC—
104.6TFC—
218.1RFJ—
2.9SAP—
52.8TFC—
204.8TFC—
11.3SSS—
31TFC—
250.7TFC—
294.8SSS—
0MWL—
293.2SAP—
0MWM—
294.8AMH22 0247

Properties (6)

additional_info
SC346784
custom_field_two
2
customer
LACSD
datetime
2018-01-10T23:18:08-08:00
documentation
PROPIPE
is_lateral_inspection
false
