Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2018, 10:56 AM

  • 22 0294_22 0293_08012018_025626.mp4

Date
01/08/2018
W/O
679260
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16580
Time
2:56 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5406
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
32
Purpose
Routine Assessment
Project
WO_679260_TV22014_JAN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0294
Downstream MH
22 0293
Dir. of Survey
Downstream
Length Surveyed
380.3 ft.
Total Length
380.3 ft.
Structural Index
3
Structural Quick
3N2N
Structural Rating
375
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
378
Pipe schematic from manhole 22 0294 to 22 0293
MH: 22 0294MH: 22 0293downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 02943.4 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start5.1 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start37.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"86.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"183.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"248.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"248.7 ft. RML - Roots Medium Lateral, at 10 o'clock, 25 %, within 8 inches of joint: YES309.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"334.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"380.2 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish380.2 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish380.3 ft. AMH - Downstream Manhole, Survey Ends - 22 0293380.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

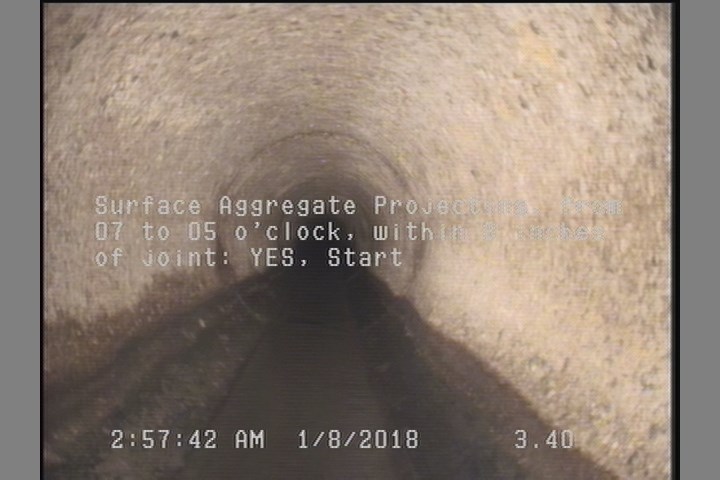

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    3.4 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

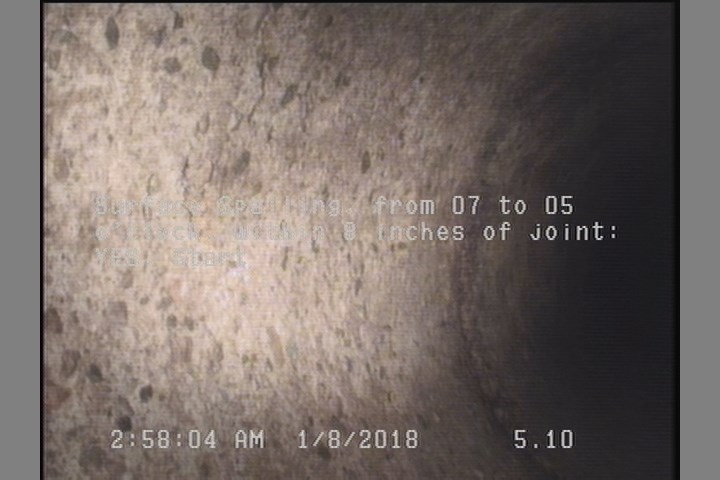

  • Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    5.1 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

All inspections of P16580Work order 679260

Observations (17)

DistanceCodeObservation
37.9TF—
0MWL—
248.7TF—
0MGOCONNECTION AT MH 3 O'CLOCK
334.8TF—
380.2SAP—
3.4SAP—
380.3AMH22 0293
380.3MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
5.1SSS—
0AMH22 0294
309.5TFC—
183.4TF—
248.7RML—
380.2SSS—
86.3TF—

Properties (6)

additional_info
SC346780
custom_field_two
2
customer
LACSD
datetime
2018-01-08T02:56:16-08:00
documentation
PROPIPE
is_lateral_inspection
false
