Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2018, 10:30 AM

  • 22 0296_22 0295_08012018_023026.mp4

Date
01/08/2018
W/O
679260
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16582
Time
2:30 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5406
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
32
Purpose
Routine Assessment
Project
WO_679260_TV22014_JAN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0296
Downstream MH
22 0295
Dir. of Survey
Downstream
Length Surveyed
313.5 ft.
Total Length
313.5 ft.
Structural Index
3
Structural Quick
3K2K
Structural Rating
308
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
308
Pipe schematic from manhole 22 0296 to 22 0295
MH: 22 0296MH: 22 0295downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02960 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 5 %of cross sectional area2.1 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start7.7 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start43.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"55.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"125.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"178.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"230.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"259.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"310.8 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish310.8 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish313.5 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK313.5 ft. AMH - Downstream Manhole, Survey Ends - 22 0295

Observation photos (2)

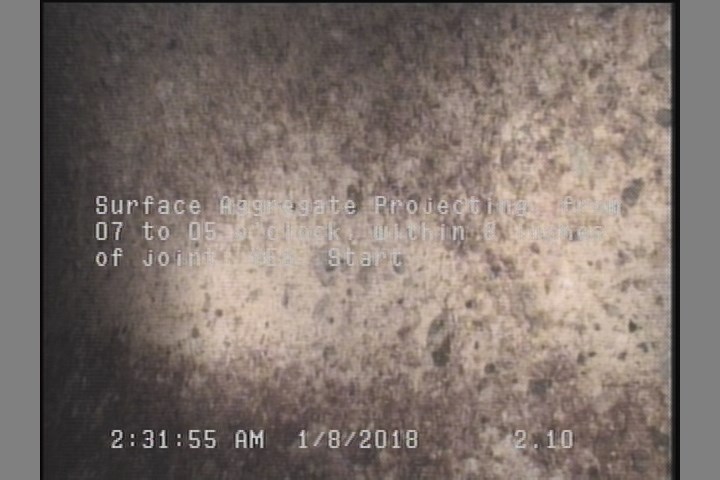

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

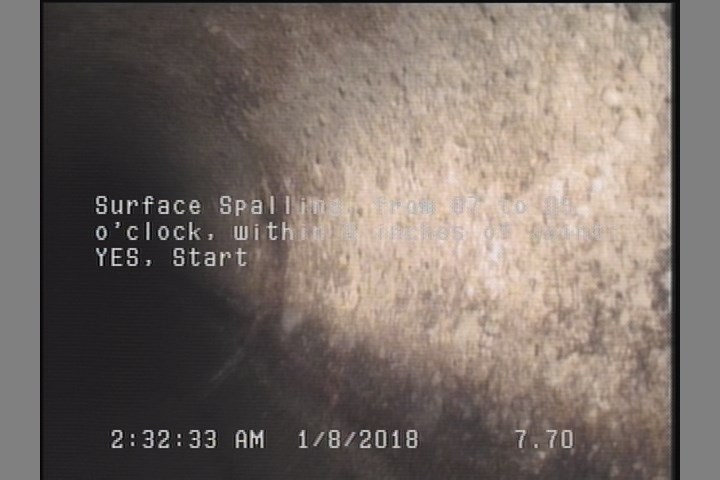

  • Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    7.7 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

All inspections of P16582Work order 679260

Observations (16)

DistanceCodeObservation
0AMH22 0296
43.6TFC—
230.8TF—
125.3TF—
0MWM—
313.5MGOCONNECTION AT MH 3 O'CLOCK
178.1TF—
259.4TFC—
7.7SSS—
2.1SAP—
310.8SSS—
313.5AMH22 0295
310.8SAP—
55.7TF—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—

Properties (6)

additional_info
SC346780
custom_field_two
2
customer
LACSD
datetime
2018-01-08T02:30:07-08:00
documentation
PROPIPE
is_lateral_inspection
false
