Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 13, 2017, 07:26 PM

  • A 0420_ A 0419_13112017_113428.mpg

Date
11/13/2017
W/O
668747
Weather
Dry
Operator/Surveyor
E RUIZ
Sewer ID
Z00322
PipeID
P08080
Time
11:26 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5134
Sewer Name
A JOA-1A LONG BEACH WRP SLUDGE GRAVITY SEWER
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
11
Purpose
Routine Assessment
Project
WO_668747_TV19010_NOV2017
Sewer Type
Siphon
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
A 0419
Downstream MH
A 0420
Dir. of Survey
Upstream
Length Surveyed
94 ft.
Total Length
94 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4131
O&M Rating
10
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole A 0419 to A 0420
MH: A 0419MH: A 0420upstream0 ft. MSA - Survey Abandoned - ROOTS IN LINE0 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish0 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR, Finish3.3 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR3.4 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Finish45.3 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start87 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start94 ft. AMH - Downstream Manhole, Survey Begins - A 041994 ft. MWM - Water Mark, 60 %of cross sectional area94 ft. MWL - Water Level, 30 %of cross sectional area

Observation photos (4)

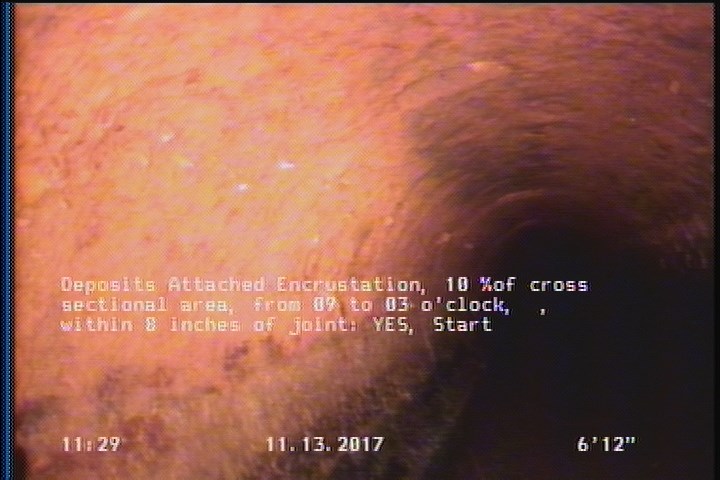

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    7 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

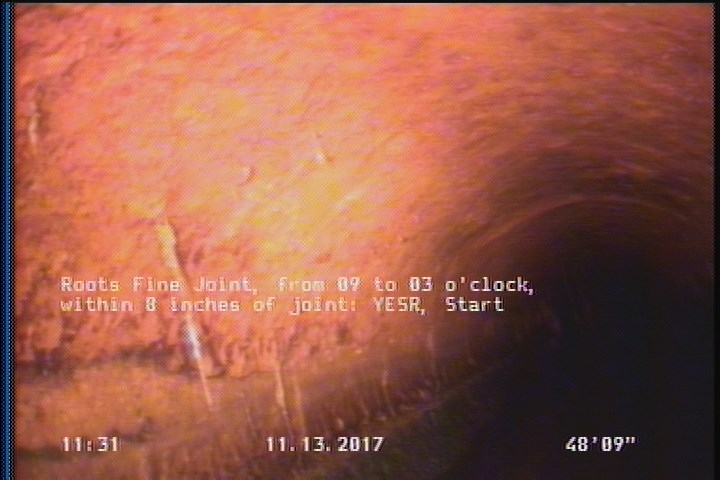

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

    48.7 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

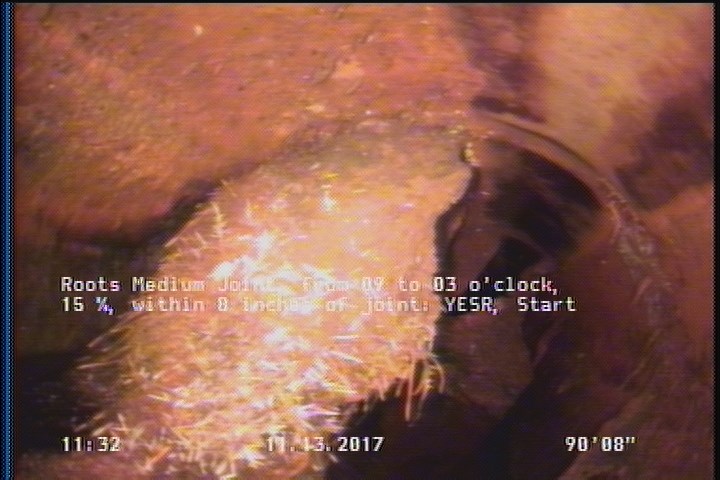

  • Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR

    90.7 ft. - Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR

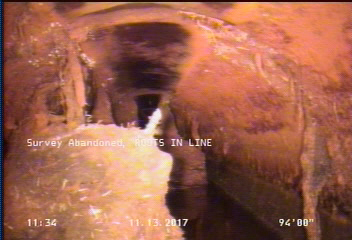

  • Survey Abandoned - ROOTS IN LINE

    94 ft. - Survey Abandoned - ROOTS IN LINE

All inspections of P08080Work order 668747

Observations (10)

DistanceCodeObservation
90.7RMJ—
94MSAROOTS IN LINE
0AMHA 0419
94DAE—
94RMJ—
48.7RFJ—
0MWM—
0MWL—
90.6RFJ—
7DAE—

Properties (6)

additional_info
SC348342
custom_field_two
2
customer
LACSD
datetime
2017-11-13T11:26:28-08:00
documentation
PROPIPE
is_lateral_inspection
false
