Wastewater/Activity/PacpInspection/1.0Oct 25, 2017, 06:18 AM
A 0414_A 0413 _24102017_223435.mpg
- Date
- 10/24/2017
- W/O
- 668747
- Weather
- Dry
- Operator/Surveyor
- E RUIZ
- Sewer ID
- Z00322
- PipeID
- P08074
- Time
- 11:18 PM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5112
- Sewer Name
- A JOA-1A LONG BEACH WRP SLUDGE GRAVITY SEWER
- City
- LONG BEACH
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_668747_TV19010_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- A 0414
- Downstream MH
- A 0413
- Dir. of Survey
- Downstream
- Length Surveyed
- 374.1 ft.
- Total Length
- 374.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

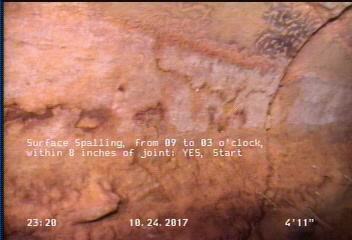

4.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

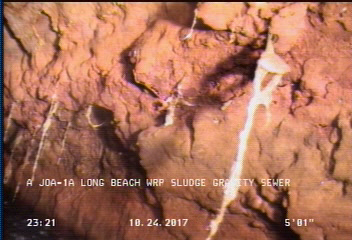

5 ft. - Deposits Attached Other, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 132 | DSZ | SLUDGE |
| 0 | MWM | — |
| 371 | SSS | — |
| 189.2 | TFA | — |
| 371 | DAZ | — |
| 5 | DAZ | — |
| 374.1 | AMH | A 0413 |
| 371 | DSZ | — |
| 0 | MWL | — |
| 0 | AMH | A 0414 |
| 4.9 | SSS | — |
Properties (6)
- additional_info
- SC348320
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-24T23:18:56-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
