Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 31, 2018, 04:38 PM

  • 18 1006_18 1005_1312018_092044.mp4

Date
01/31/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00677
PipeID
P14860
Time
8:38 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7616
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 1
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20180131SHO_LA_HABRA_HEIGHTS_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 1006
Downstream MH
18 1005
Dir. of Survey
Downstream
Length Surveyed
266.3 ft.
Total Length
266.3 ft.
Structural Index
3
Structural Quick
5341
Structural Rating
60
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
61
Pipe schematic from manhole 18 1006 to 18 1005
MH: 18 1006MH: 18 1005downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - 3 ACTIVE CONNECTING IN THE MH, @ 3, 6 & 9 O CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 09200 ft. MWL - Water Level, 20 %of cross sectional area8 ft. CM - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES19.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES43.6 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES59.3 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES62.2 ft. CM - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES71.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES74.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES77.3 ft. BVV - Broken Void Visible, at 12 o'clock, within 8 inches of joint: YES - POSSIBLE SOIL VISIBLE AS WELL98.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES113.5 ft. SSS - Surface Spalling, at 12 o'clock, within 8 inches of joint: YES119 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES125.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES129.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6" - OPEN137 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES149.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES155.2 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES168.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN172.7 ft. CC - Crack Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES181.5 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES199.7 ft. B - Broken, from 08 to 10 o'clock, within 8 inches of joint: YES226.6 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR227.7 ft. FC - Fracture Circumferential, from 10 to 05 o'clock, within 8 inches of joint: YES227.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"229.4 ft. B - Broken, from 07 to 08 o'clock, within 8 inches of joint: YES230.4 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6" - OPEN256.3 ft. HVV - Hole Void Visible, from 08 to 09 o'clock, within 8 inches of joint: YES266.3 ft. AMH - Downstream Manhole, Survey Ends - 1000

Observation photos (7)

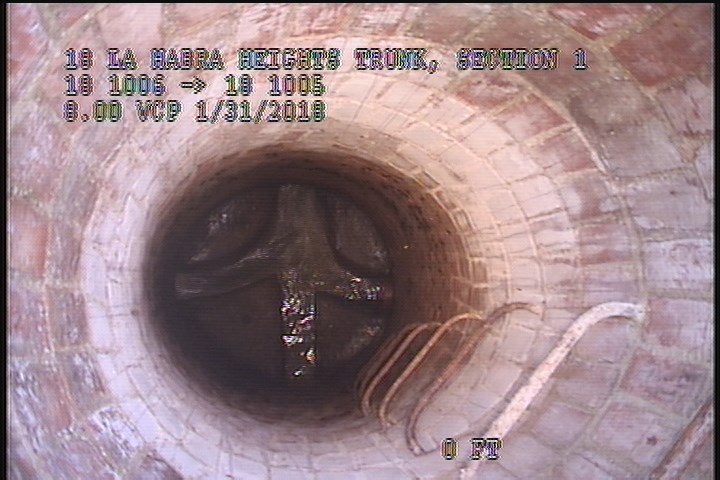

  • General Observation - 3 ACTIVE CONNECTING IN THE MH, @ 3, 6 & 9 O CLOCK

    0 ft. - General Observation - 3 ACTIVE CONNECTING IN THE MH, @ 3, 6 & 9 O CLOCK

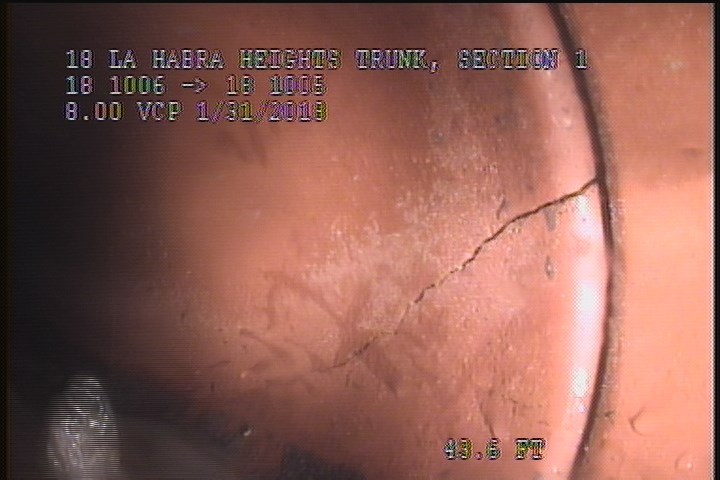

  • Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

    43.6 ft. - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

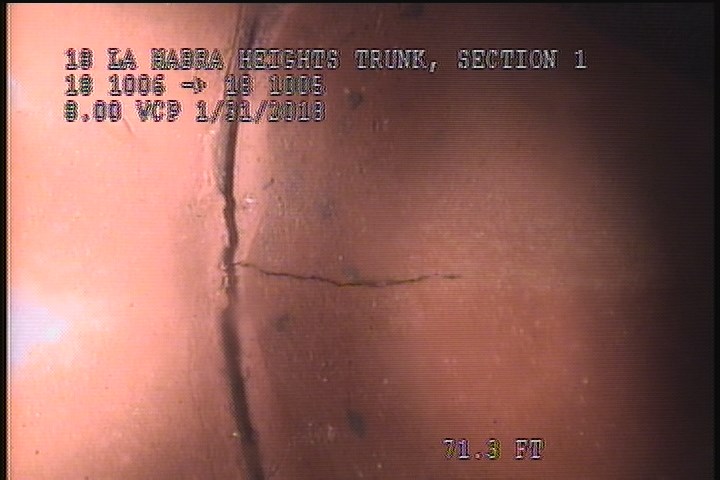

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    71.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Broken Void Visible, at 12 o'clock, within 8 inches of joint: YES - POSSIBLE SOIL VISIBLE AS WELL

    77.3 ft. - Broken Void Visible, at 12 o'clock, within 8 inches of joint: YES - POSSIBLE SOIL VISIBLE AS WELL

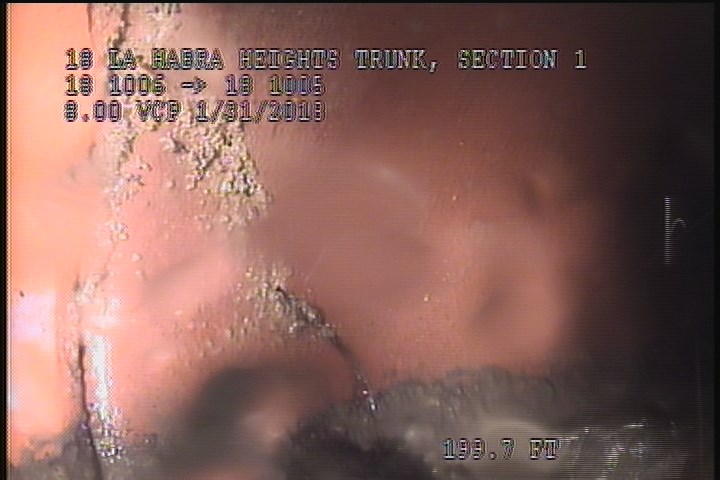

  • Broken, from 08 to 10 o'clock, within 8 inches of joint: YES

    199.7 ft. - Broken, from 08 to 10 o'clock, within 8 inches of joint: YES

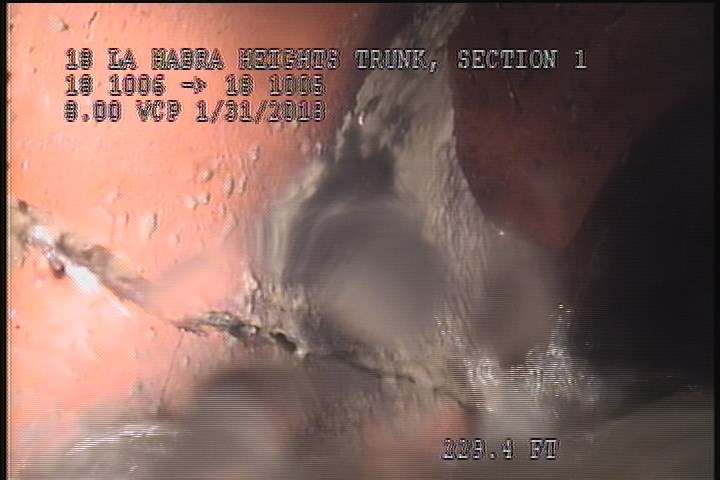

  • Broken, from 07 to 08 o'clock, within 8 inches of joint: YES

    229.4 ft. - Broken, from 07 to 08 o'clock, within 8 inches of joint: YES

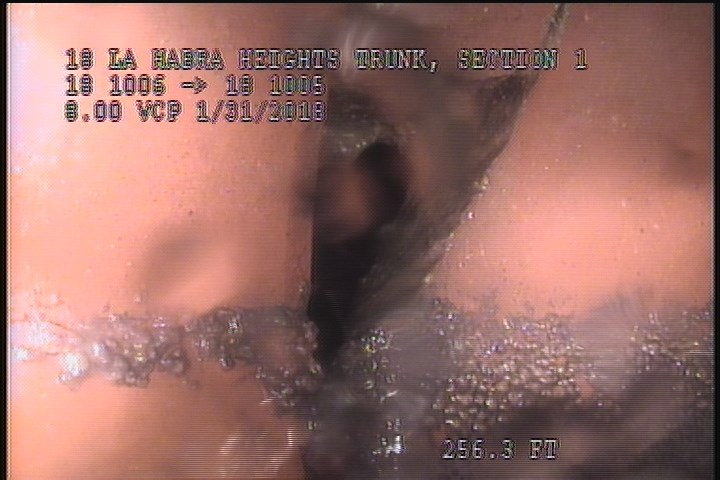

  • Hole Void Visible, from 08 to 09 o'clock, within 8 inches of joint: YES

    256.3 ft. - Hole Void Visible, from 08 to 09 o'clock, within 8 inches of joint: YES

All inspections of P14860Work order PENDING

Observations (31)

DistanceCodeObservation
137CM—
227.7FC—
266.3AMH1000
168.3TFOPEN
0MWM—
172.7CC—
71.3FL—
155.2CM—
199.7B—
0MGO3 ACTIVE CONNECTING IN THE MH, @ 3, 6 & 9 O CLOCK
0AMH0920
256.3HVV—
74.4CL—
181.5CL—
77.3BVVPOSSIBLE SOIL VISIBLE AS WELL
125.6CL—
19.7CL—
226.6RFJ—
230.4TFOPEN
59.3CM—
129.4TFOPEN
43.6FC—
119CM—
98.4CL—
62.2CM—
149.3CM—
8CM—
113.5SSS—
0MWL—
229.4B—
227.9TFA—

Properties (7)

additional_info
RFIR
custom_field_three
BROKEN PIPE AND HOLES
custom_field_two
1
customer
LACSD
datetime
2018-01-31T08:38:25-08:00
documentation
OBREGON, PARAISO
is_lateral_inspection
false
