Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 09:26 AM

  • Section#6_01 0947_01 0946__1302018__G6939.mp4

Date
01/30/2018
W/O
0686794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01784
Time
1:26 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6939
Sewer Name
01 WRIGHT ROAD TRUNK
City
SOUTH GATE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20180127MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0947
Downstream MH
01 0946
Dir. of Survey
Downstream
Length Surveyed
295.8 ft.
Total Length
295.8 ft.
Structural Index
3
Structural Quick
413[
Structural Rating
674
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
678
Pipe schematic from manhole 01 0947 to 01 0946
MH: 01 0947MH: 01 0946downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:20AM3.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE6.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT6.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H12.1 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL12.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL16.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H16.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLL19.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL21.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL24.7 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SL27.3 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H27.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL29.6 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS29.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS29.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL29.6 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS29.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS50.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT93.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE108.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H127 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H148.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H184.5 ft. MWM - Water Mark, 50 %of cross sectional area253.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H265.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H284.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H294.8 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 10% HAIRLINE AT JOINTS294.8 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 10% SLIGHT AT JOINTS294.8 ft. MGO - General Observation - MH CONN STUB 9:00294.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% SLIGHT AT JOINTS294.8 ft. MGO - General Observation - MH CONN ACTIVE 3:00294.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H294.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% HAIRLINE AT JOINTS295.8 ft. AMH - Downstream Manhole, Survey Ends - 4:55AM

Observation photos (2)

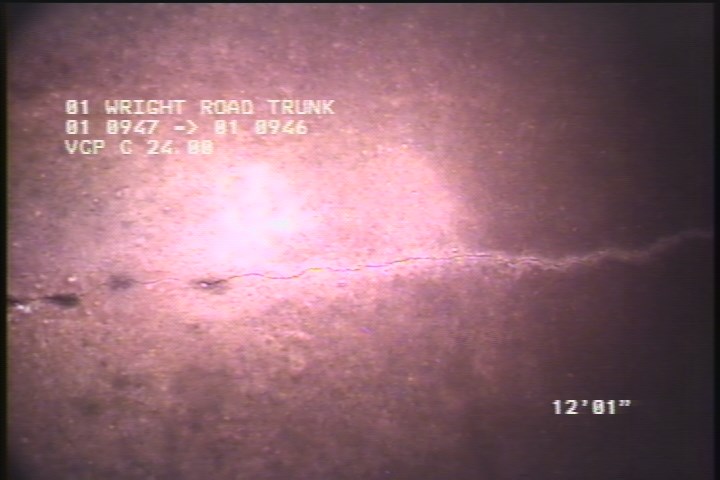

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL

    12.1 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL

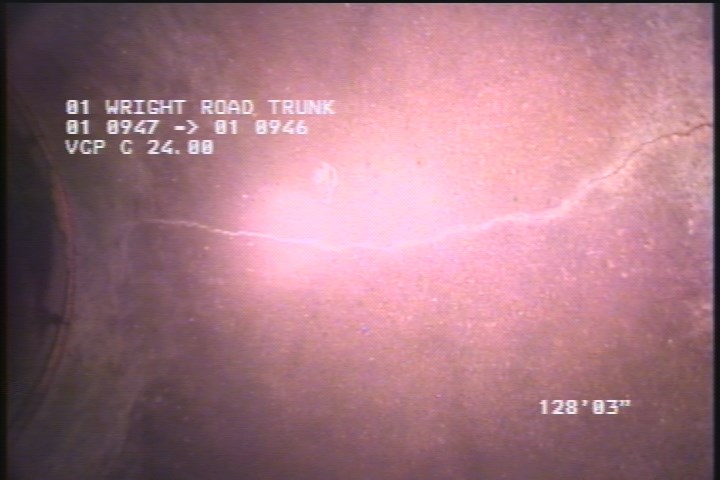

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    127 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P01784Work order 0686794

Observations (37)

DistanceCodeObservation
0MWM—
93.5FLHAIRLINE
294.8FL10% HAIRLINE AT JOINTS
6.3FCSLIGHT
295.8AMH4:55AM
265.1FLH
0MWL—
29.6FLSLIGHT AT JOINTS
29.6FCSLIGHT AT JOINTS
50.2FLSLIGHT
12.1FCSL
21.9FCSL
294.8FL10% SLIGHT AT JOINTS
6.3FLH
24.7FCSL
294.8MGOMH CONN STUB 9:00
0AMH4:20AM
3.7FMHAIRLINE
16.9FCH
27.3FCH
108.1FLH
294.8FC70% SLIGHT AT JOINTS
294.8MGOMH CONN ACTIVE 3:00
19.3FCSL
27.3FCSL
16.9FCSLL
29.6FCSL
29.6FLHAIRLINE AT JOINTS
184.5MWM—
12.1FLSL
284.4FLH
253.6FLH
294.8FLH
294.8FC40% HAIRLINE AT JOINTS
29.6FCHAIRLINE AT JOINTS
127FLH
148.1FLH

Properties (6)

custom_field_three
SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-01-30T01:26:15-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
