Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 09:15 AM

  • Section#3_01 0950_01 0949__1302018__G6936.mp4

Date
01/30/2018
W/O
0686794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01787
Time
1:15 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6936
Sewer Name
01 WRIGHT ROAD TRUNK
City
SOUTH GATE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20180127MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0950
Downstream MH
01 0949
Dir. of Survey
Downstream
Length Surveyed
287.8 ft.
Total Length
287.8 ft.
Structural Index
3
Structural Quick
413a
Structural Rating
770
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
770
Pipe schematic from manhole 01 0950 to 01 0949
MH: 01 0950MH: 01 0949downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:25AM3 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT10.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H13.2 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT13.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL15.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL15.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H18.9 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H20.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL25.8 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL28.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT31.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SL39.3 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H40.9 ft. FL - Fracture Longitudinal, at 09 TO 03 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS40.9 ft. FL - Fracture Longitudinal, at 09 TO 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS41 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS41 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS41.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H41.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL90.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT203.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT213.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT244 ft. MGO - General Observation - SLIGHT FRACTURE287.1 ft. MGO - General Observation - MH CONN ACTIVE 9:00287.1 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - 50% HAIRLINE AT JOINTS287.1 ft. FL - Fracture Longitudinal, at 09 TO 03 o'clock, within 8 inches of joint: YES, Finish - 10% HAIRLINE AT JOINTS287.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT287.1 ft. FL - Fracture Longitudinal, at 09 TO 03 o'clock, within 8 inches of joint: YES, Finish - 10% SLIGHT AT JOINTS287.1 ft. MGO - General Observation - MH CONN STUB 3:00287.1 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - 50% SLIGHT AT JOINTS287.8 ft. AMH - Downstream Manhole, Survey Ends - 2:10AM

Observation photos (5)

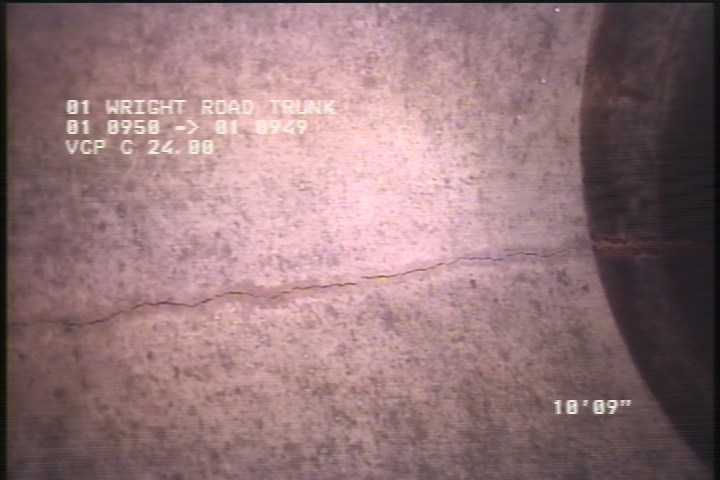

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

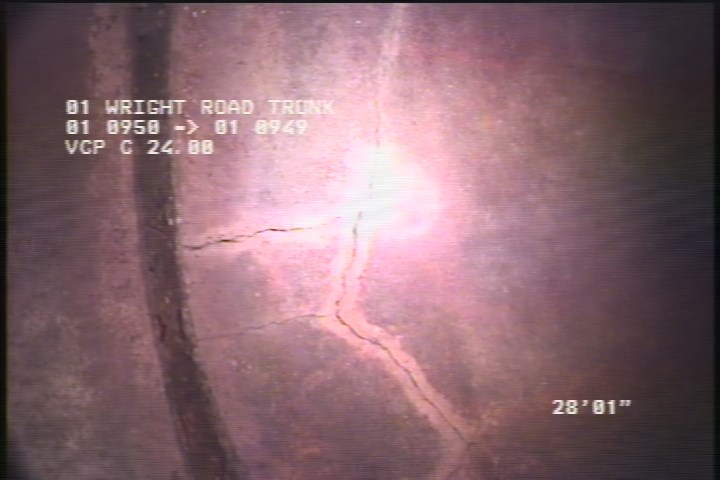

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT

    28.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT

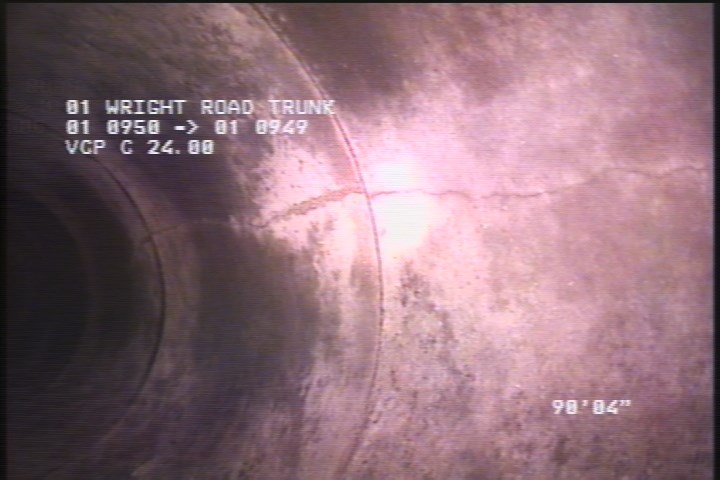

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT

    90.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT

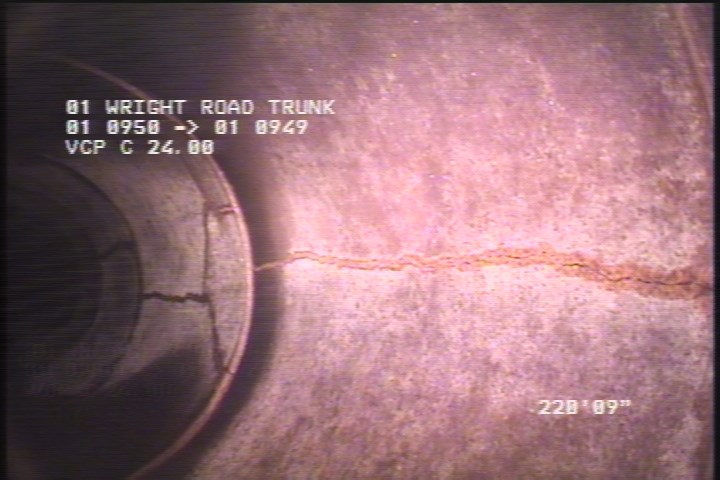

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    213.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

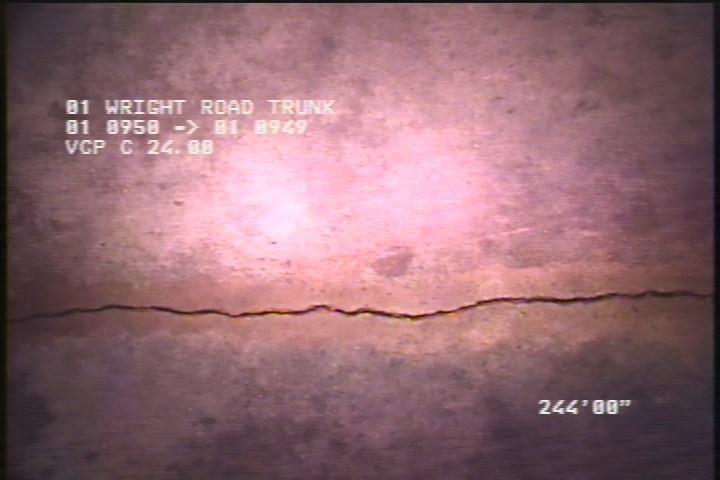

  • General Observation - SLIGHT FRACTURE

    244 ft. - General Observation - SLIGHT FRACTURE

All inspections of P01787Work order 0686794

Observations (34)

DistanceCodeObservation
287.1MGOMH CONN ACTIVE 9:00
41.1FCH
40.9FLHAIRLINE AT JOINTS
0MWM—
287.1FC50% HAIRLINE AT JOINTS
287.1FL10% HAIRLINE AT JOINTS
213.9FLSLIGHT
28.1FMSLIGHT
15.5FLSL
40.9FLSLIGHT AT JOINTS
41FCHAIRLINE AT JOINTS
287.1FLSLIGHT
287.1FL10% SLIGHT AT JOINTS
39.3FCH
3FCHAIRLINE
20.9FCSL
287.1MGOMH CONN STUB 3:00
244MGOSLIGHT FRACTURE
90.4FLSLIGHT
41.1FCSL
15.5FCH
4FLSLIGHT
203.5FLSLIGHT
287.1FC50% SLIGHT AT JOINTS
18.9FCH
287.8AMH2:10AM
10.7FLH
25.8FCSL
0MWL—
41FCSLIGHT AT JOINTS
0AMH1:25AM
31.2FCSL
13.2FCSLIGHT
13.2FCSL

Properties (6)

custom_field_three
LONG SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-01-30T01:15:12-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
