Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 12:45 PM

  • Section#1_08 0074_08 0073__1262018__G6934.mp4

Date
01/26/2018
W/O
0684555
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00076
Time
4:45 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6934
Sewer Name
08 MAIN STREET TRUNK
City
CARSON
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Maintenance Related
Project
20180126MDM_MAIN_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0074
Downstream MH
08 0073
Dir. of Survey
Downstream
Length Surveyed
331.9 ft.
Total Length
331.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 08 0074 to 08 0073
MH: 08 0074MH: 08 0073downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:25AM18.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB43.8 ft. MGO - General Observation - 12" VCP69.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN110.4 ft. DSZ - Deposits Settled Other, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - SCALE118.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB138.6 ft. MGP - General Photograph169.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE189.8 ft. MGO - General Observation - 12" VCP223.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB253.8 ft. DSZ - Deposits Settled Other, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SCALE258.1 ft. DSZ - Deposits Settled Other, 3 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SCALE284.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB331.2 ft. MGO - General Observation - MH CONN 9:00 ACTIVE331.2 ft. MGO - General Observation - MH CONN 3:00 OPEN331.9 ft. AMH - Downstream Manhole, Survey Ends - 6:00AM

Observation photos (6)

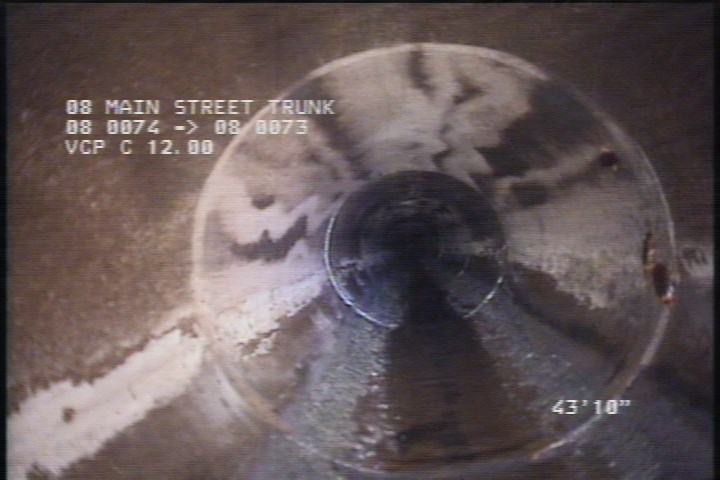

  • General Observation - 12" VCP

    43.8 ft. - General Observation - 12" VCP

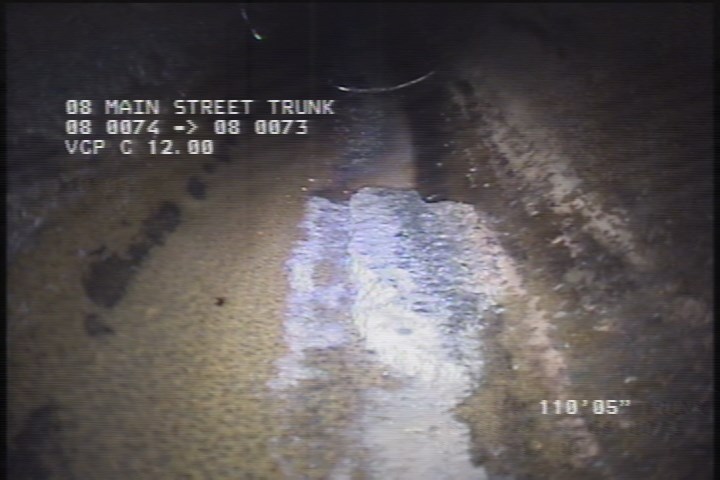

  • Deposits Settled Other, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - SCALE

    110.4 ft. - Deposits Settled Other, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - SCALE

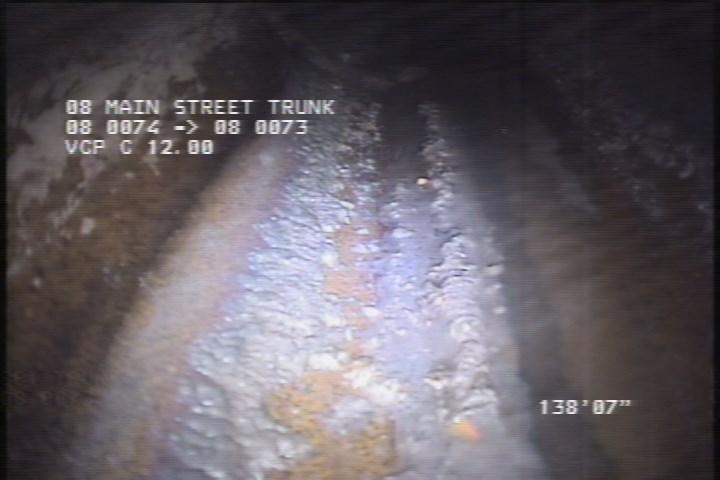

  • General Photograph

    138.6 ft. - General Photograph

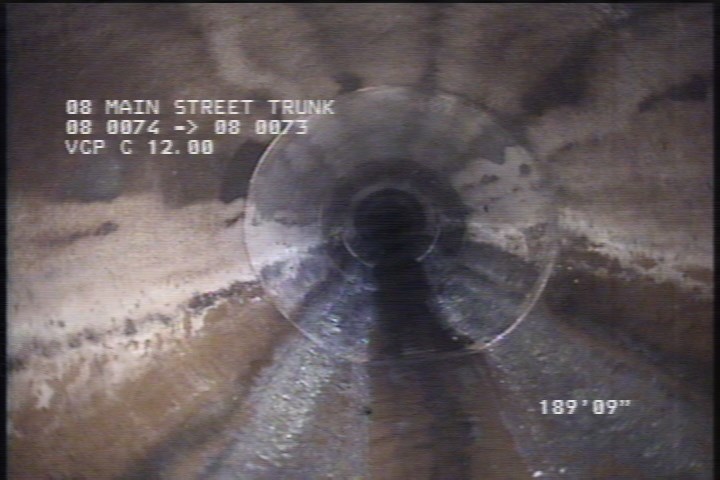

  • General Observation - 12" VCP

    189.8 ft. - General Observation - 12" VCP

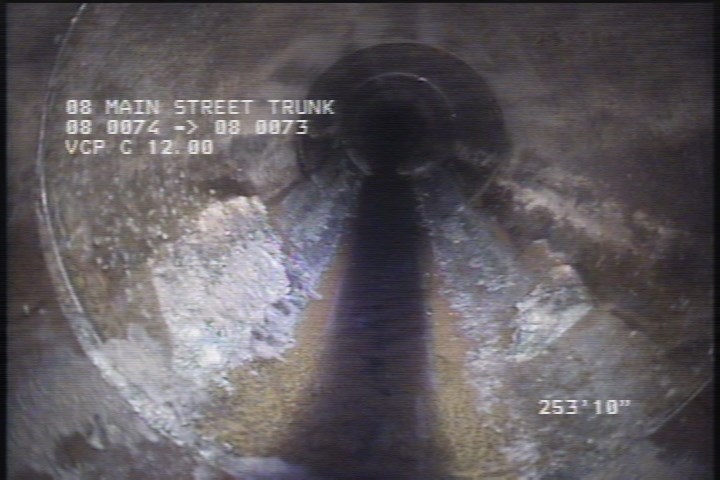

  • Deposits Settled Other, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SCALE

    253.8 ft. - Deposits Settled Other, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SCALE

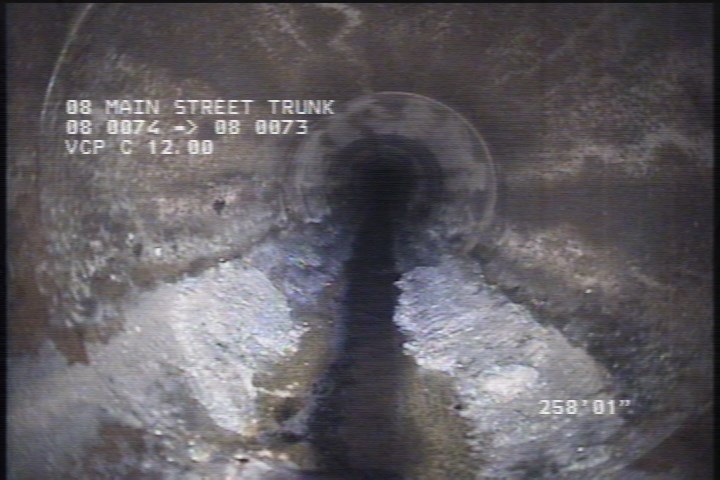

  • Deposits Settled Other, 3 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SCALE

    258.1 ft. - Deposits Settled Other, 3 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SCALE

All inspections of P00076Work order 0684555

Observations (18)

DistanceCodeObservation
0MWL—
284.4TFCSTUB
253.8DSZSCALE
43.8MGO12" VCP
189.8MGO12" VCP
223.8TFCSTUB
18.7TFSTUB
169.3TFACTIVE
331.2MGOMH CONN 9:00 ACTIVE
0MWM—
331.2MGOMH CONN 3:00 OPEN
110.4DSZSCALE
258.1DSZSCALE
0AMH5:25AM
331.9AMH6:00AM
69.6TFOPEN
118.2TFSTUB
138.6MGP—

Properties (5)

additional_info
POST CLEANING INSPECTION ONLY
customer
LACSD
datetime
2018-01-26T04:45:08-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
