Wastewater/Activity/PacpInspection/1.0May 3, 2017, 08:05 AM
B 0630_15 0600_532017_012200.mp4
- Date
- 05/03/2017
- W/O
- 0624373
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00107
- PipeID
- P09296
- Time
- 1:05 AM
- Certificate
- U-1-14-06O22543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0514
- Sewer Name
- B JOINT OUTFALL B - UNIT 8D
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- 20170503MDM_JOINT_OUTFALL_B_UNIT_8D
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- B 0630
- Downstream MH
- 15 0600
- Dir. of Survey
- Downstream
- Length Surveyed
- 10.4 ft.
- Total Length
- 10.4 ft.
- Structural Index
- 3
- Structural Quick
- 4121
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

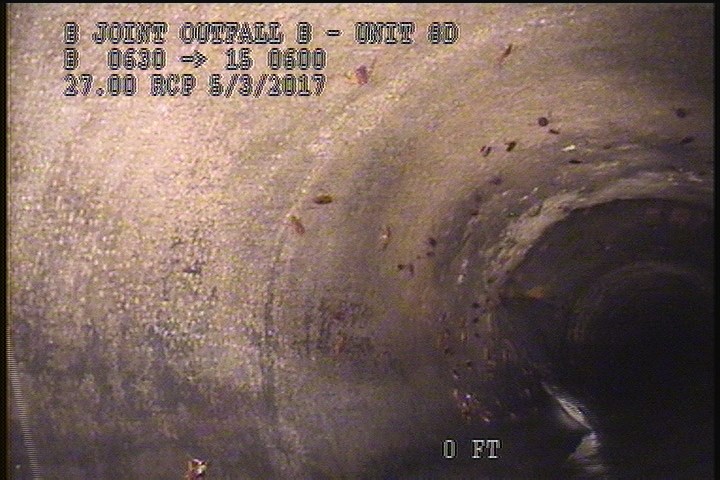

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - FLAKING CONCRETE

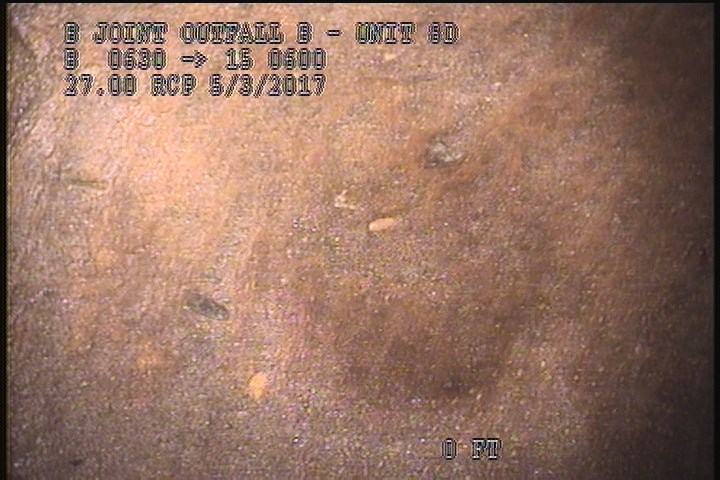

2.5 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | Conn. @ Mh, 3 O' Clock. OPEN |
| 0 | MWM | — |
| 2.5 | SAM | SEVERE AGG SPORATIC |
| 10.4 | AMH | 1:15AM |
| 10.2 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 10.2 | SSS | SWOLLEN,FLACKING CONCRETE |
| 0 | MWL | — |
| 10.2 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0 | AMH | 1:05AM |
| 2 | SSS | FLAKING CONCRETE |
Properties (6)
- custom_field_three
- SPALLING CONCRETE-FEW SEVERE AGG
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-03T01:05:27-07:00
- documentation
- MARTIN,REVELES,OLIVER 111
- is_lateral_inspection
- false
