Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 4, 2017, 07:41 AM

  • B 0623_B 0622_542017_021611.mp4

Date
05/04/2017
W/O
0624373
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00107
PipeID
P09288
Time
12:41 AM
Certificate
U-1-14-06O22543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0515
Sewer Name
B JOINT OUTFALL B - UNIT 8D
City
TEMPLE CITY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
20170503MDM_JOINT_OUTFALL_B_UNIT_8D
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
B 0623
Downstream MH
B 0622
Dir. of Survey
Downstream
Length Surveyed
152.9 ft.
Total Length
152.9 ft.
Structural Index
3
Structural Quick
3322
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole B 0623 to B 0622
MH: B 0623MH: B 0622downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:15AM0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 30% START 9:00 TO 3:002 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SWOLLEN,FLAKING CONCRETE45 ft. SSS - Surface Spalling, from 09 to 10 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT109.5 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC117 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC125.7 ft. SAV - Surface Aggregate Visible, from 11 to 12 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC128.9 ft. SAV - Surface Aggregate Visible, from 11 to 12 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG SPORATIC152.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SWOLLEN ,FLAKING CONCRETE152.2 ft. MGO - General Observation - MAG COAT 30% FINISH152.9 ft. AMH - Downstream Manhole, Survey Ends - 2:40AM

Observation photos (6)

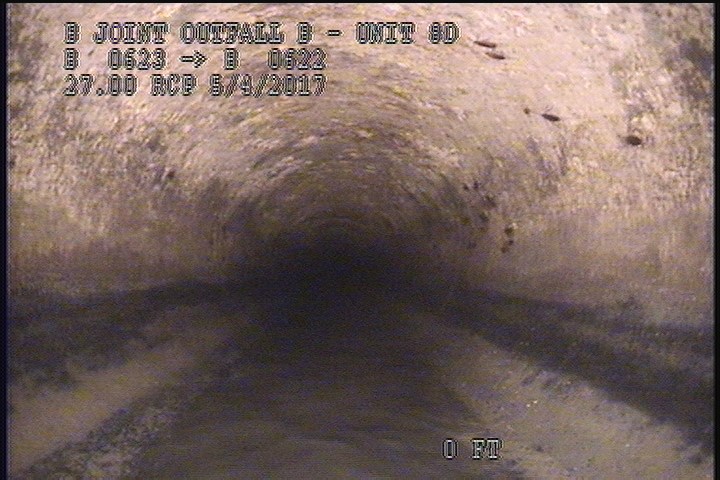

  • General Observation - MAG COAT 30% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 30% START 9:00 TO 3:00

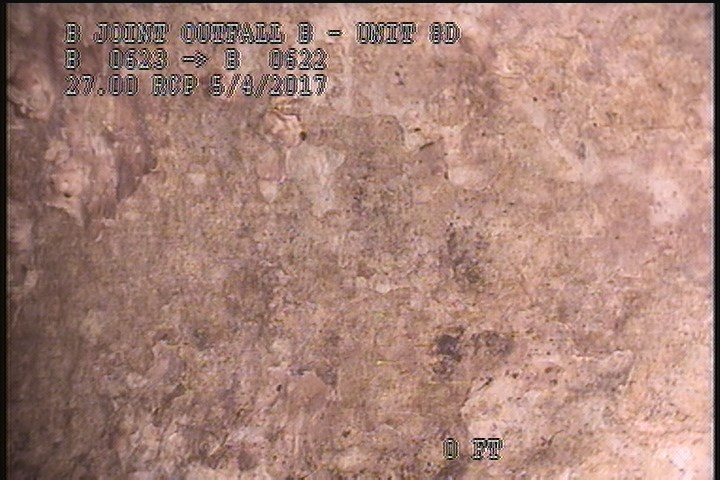

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SWOLLEN,FLAKING CONCRETE

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SWOLLEN,FLAKING CONCRETE

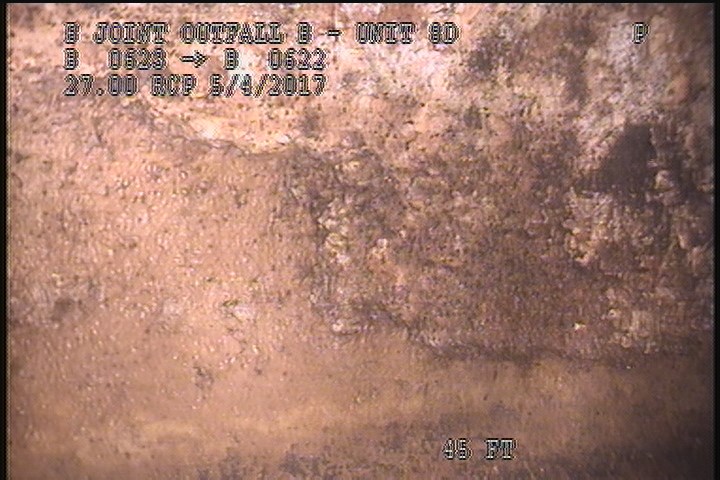

  • Surface Spalling, from 09 to 10 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

    45 ft. - Surface Spalling, from 09 to 10 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

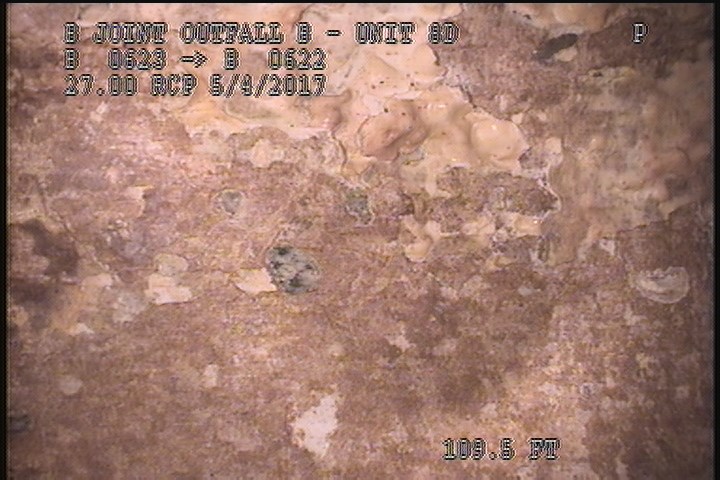

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    109.5 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

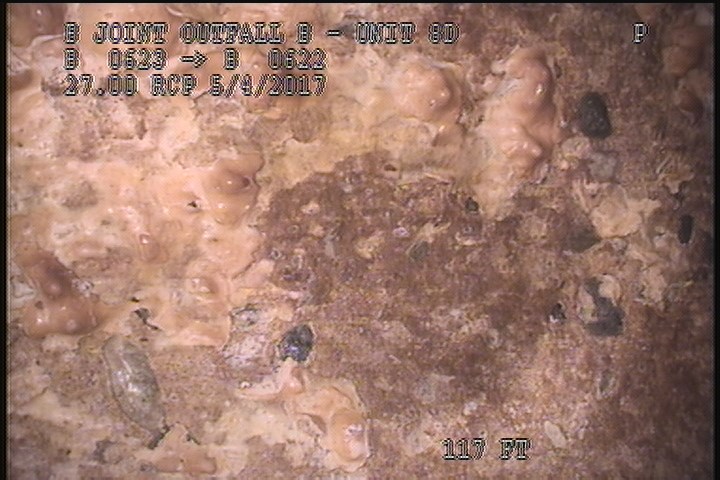

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

    117 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

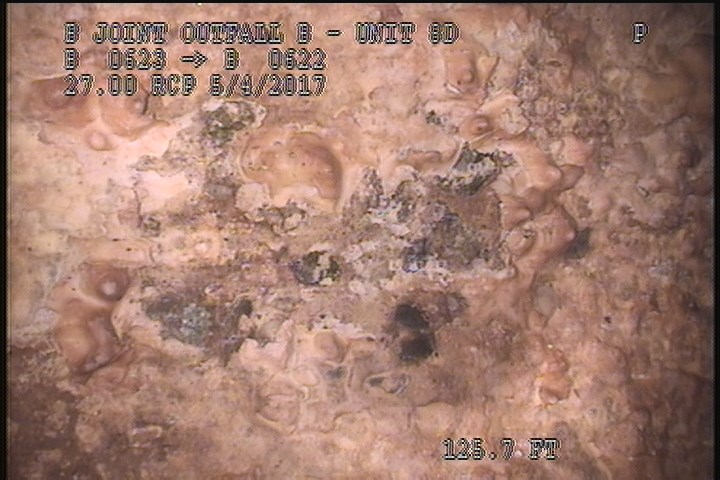

  • Surface Aggregate Visible, from 11 to 12 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

    125.7 ft. - Surface Aggregate Visible, from 11 to 12 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

All inspections of P09288Work order 0624373

Observations (13)

DistanceCodeObservation
152.2SSSSWOLLEN ,FLAKING CONCRETE
0MWL—
2MGOMAG COAT 30% START 9:00 TO 3:00
152.2MGOMAG COAT 30% FINISH
0AMH2:15AM
125.7SAVSEVERE AGG SPORATIC
0MWM—
45SSSPEELING LAITANCE COAT
109.5SAVSEVERE AGG SPORATIC
128.9SAVSEVERE AGG SPORATIC
152.9AMH2:40AM
2SSSSWOLLEN,FLAKING CONCRETE
117SAVSEVERE AGG SPORATIC

Properties (6)

custom_field_three
SPALLING CONCRETE - FEW SEVERE AGG
custom_field_two
4
customer
LACSD
datetime
2017-05-04T00:41:51-07:00
documentation
MARTIN,REVELES,OLIVER 111
is_lateral_inspection
false
