Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 28, 2017, 07:39 AM

  • D 0184_D 0171_4282017_005407.mp4

Date
04/28/2017
W/O
0624559
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00157
PipeID
P10061
Time
12:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0510
Sewer Name
D JOINT OUTFALL D - UNIT 6 RELIEF
City
HAWTHORN
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
20170428MDM_JOINT_OUTFALL_D_UNIT_6_RELIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
D 0184
Downstream MH
D 0171
Dir. of Survey
Downstream
Length Surveyed
70.2 ft.
Total Length
70.2 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole D 0184 to D 0171
MH: D 0184MH: D 0171downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:40AM8 ft. MGO - General Observation - 8" VCP10.4 ft. MGO - General Observation - RELIEF IS REVERSE FLOW WITH STOPLOG GROOVES39.1 ft. JSM - Joint Separated Medium - SEALED39.1 ft. JOM - Joint Offset Medium41.4 ft. FS - Fracture Spiral, from 07 to 12 o'clock, within 8 inches of joint: YES, Start43 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT44.8 ft. FS - Fracture Spiral, from 07 to 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT62.2 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT62.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE70.2 ft. AMH - Downstream Manhole, Survey Ends - 1:00AM

Observation photos (4)

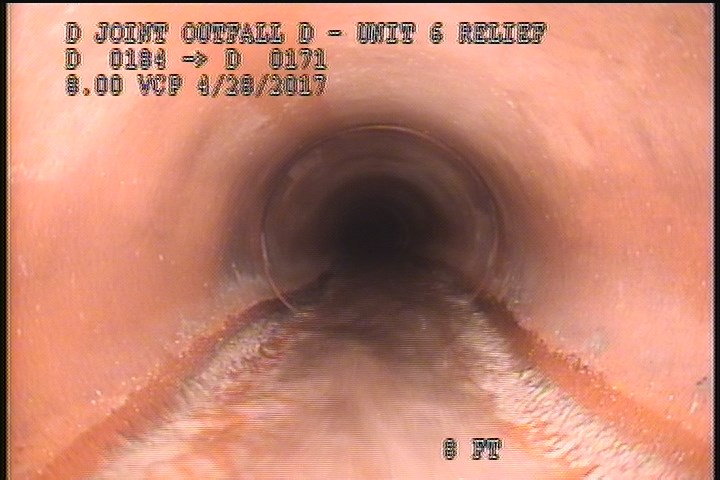

  • General Observation - RELIEF IS REVERSE FLOW WITH STOPLOG GROOVES

    10.4 ft. - General Observation - RELIEF IS REVERSE FLOW WITH STOPLOG GROOVES

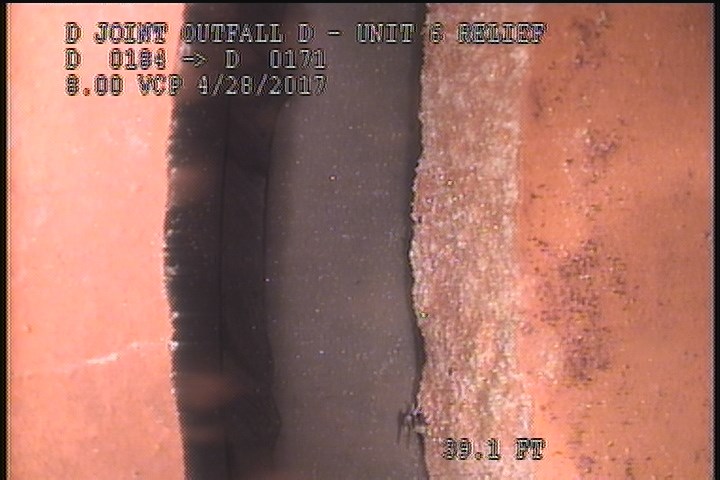

  • Joint Separated Medium - SEALED

    39.1 ft. - Joint Separated Medium - SEALED

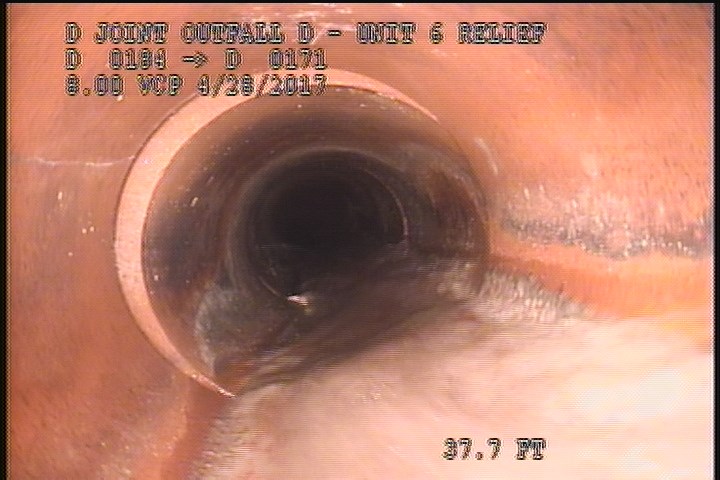

  • Joint Offset Medium

    39.1 ft. - Joint Offset Medium

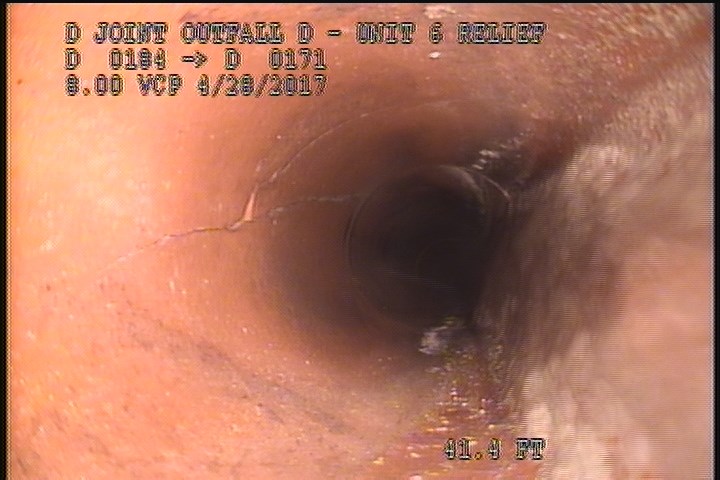

  • Fracture Spiral, from 07 to 12 o'clock, within 8 inches of joint: YES, Start

    41.4 ft. - Fracture Spiral, from 07 to 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P10061Work order 0624559

Observations (13)

DistanceCodeObservation
43FCSLIGHT
41.4FS—
0MWM—
62.2FCSLIGHT
70.2AMH1:00AM
10.4MGORELIEF IS REVERSE FLOW WITH STOPLOG GROOVES
39.1JSMSEALED
0MWL—
44.8FSSLIGHT
0AMH12:40AM
39.1JOM—
62.2FCHAIRLINE
8MGO8" VCP

Properties (7)

custom_field_three
SLIGHT SPIRAL FRACTURE JOINT TO JOINT
custom_field_two
2
customer
LACSD
datetime
2017-04-28T00:39:31-07:00
documentation
MARTIN,REVELES,OLIVER 111
is_lateral_inspection
false
year_laid
19820204
