Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 1, 2017, 04:04 PM

  • 05 1127_05 1126_512017_094507.mp4

Date
05/01/2017
W/O
0630075
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00489
PipeID
P06363
Time
9:04 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7392
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 2
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20170427MI_MONETA_EXTENSION_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1126
Downstream MH
05 1127
Dir. of Survey
Upstream
Length Surveyed
341.9 ft.
Total Length
341.9 ft.
Structural Index
3
Structural Quick
3522
Structural Rating
20
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 05 1126 to 05 1127
MH: 05 1126MH: 05 1127upstream0 ft. AMH - Upstream Manhole, Survey Ends - 10:25 AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish4.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES30.8 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"34.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open88.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"92.2 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"113 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES137.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"143.4 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"188.5 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"193.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open245 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"248.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open264 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES285.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES294.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"302.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open322 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES330.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES338.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start339.6 ft. CC - Crack Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES341.9 ft. MWM - Water Mark, 40 %of cross sectional area341.9 ft. MWL - Water Level, 25 %of cross sectional area341.9 ft. AMH - Downstream Manhole, Survey Begins - 09:45 AM

Observation photos (5)

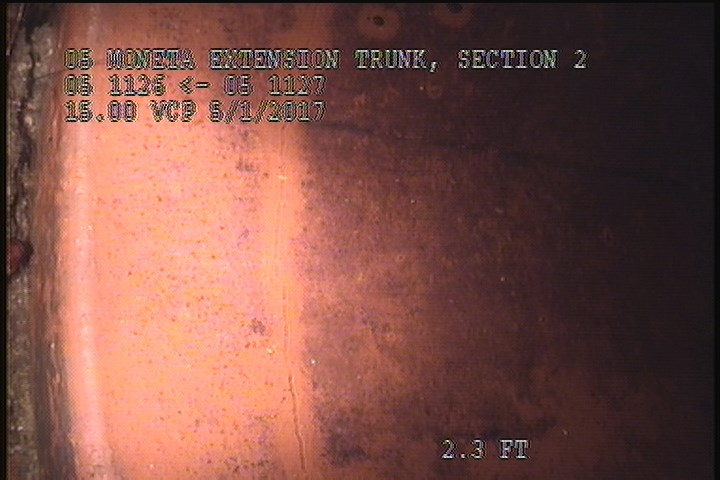

  • Crack Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES

    2.3 ft. - Crack Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES

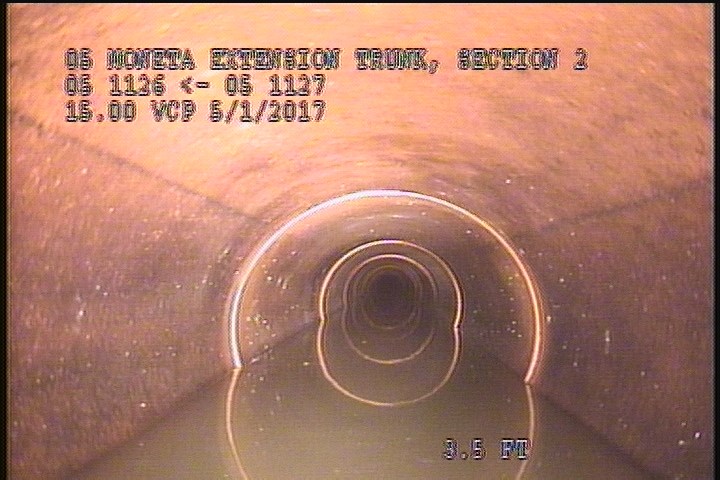

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

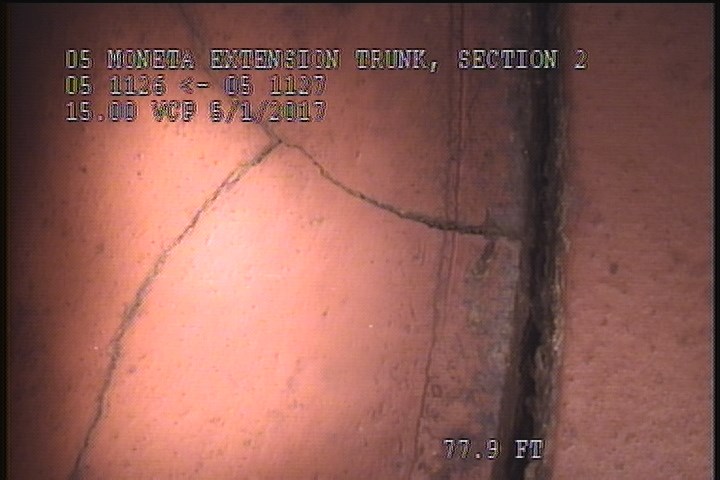

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    77.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

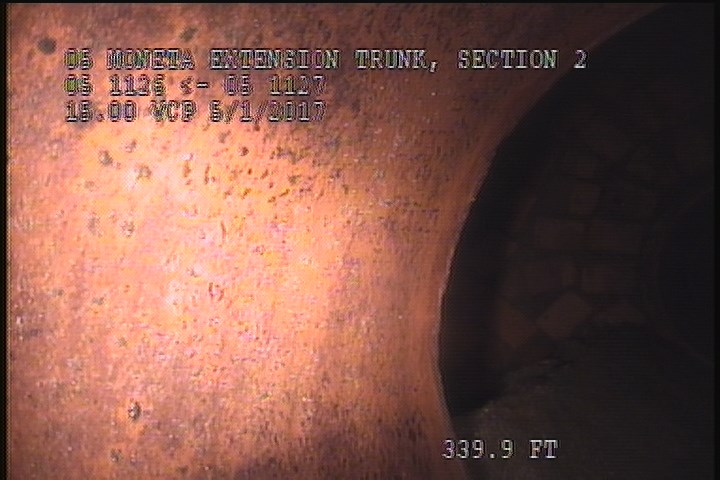

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    339.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

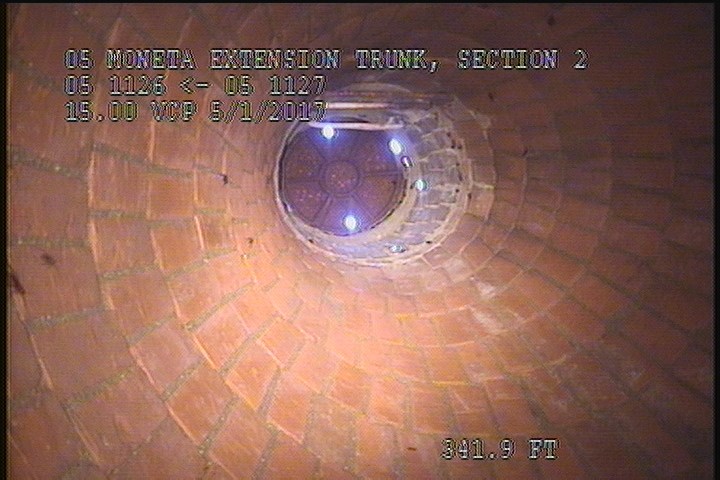

  • Upstream Manhole, Survey Ends - 10:25 AM

    341.9 ft. - Upstream Manhole, Survey Ends - 10:25 AM

All inspections of P06363Work order 0630075

Observations (25)

DistanceCodeObservation
11.2CM—
77.9CM—
339.9SSS—
3.5SSS—
0MWM—
2.3CC—
337.7CM—
148.6TBOpen
96.9TBA—
19.9CL—
311.1TBA—
56.8CM—
93.2TBOpen
198.5TBC—
228.9CM—
47.3TBA—
307.2TBOpen
153.4TBA—
253.5TBA—
341.9AMH10:25 AM
204.1TBA—
39TBOpen
0MWL—
0AMH09:45 AM
249.7TBA—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2017-05-01T09:04:49-07:00
documentation
IGNACIO, FRANKLIN
is_lateral_inspection
false
