Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2016, 09:10 AM

  • 05 2163_05 2162_1252016_013440.mp4

Date
01/25/2016
W/O
0536424
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00509
PipeID
P07305
Time
1:10 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0028
Sewer Name
05 PRAIRIE AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
20160122MDM_PRAIRIE_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
05 2163
Downstream MH
05 2162
Dir. of Survey
Downstream
Length Surveyed
161.6 ft.
Total Length
161.6 ft.
Structural Index
2
Structural Quick
2300
Structural Rating
6
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 05 2163 to 05 2162
MH: 05 2163MH: 05 2162downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:10AM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 90% 9:00 TO 3:00 START2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT SWOLLEN BLISTERING39.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - LAITANCE COAT SWOLLEN53 ft. MGO - General Observation - MAG COAT 98% START 8:00 TO 4:00105.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BLISTERING LAITANCE COAT161.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish161.2 ft. MGO - General Observation - MAG COAT98% FINISH161.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish161.6 ft. AMH - Downstream Manhole, Survey Ends - 1:30AM

Observation photos (6)

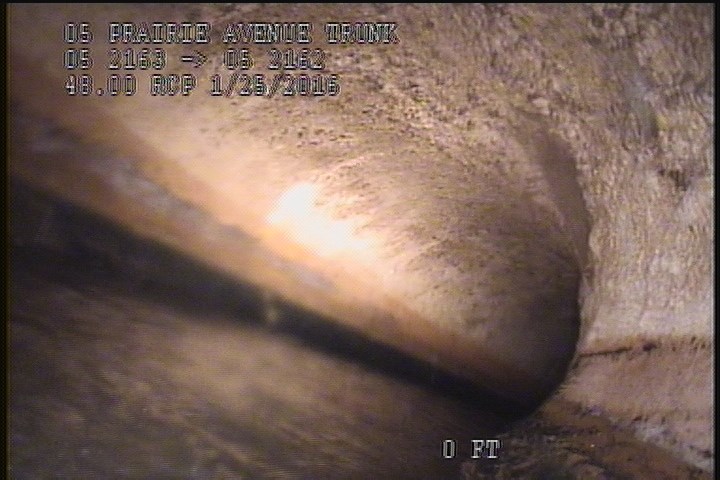

  • General Observation - MAG COAT 90% 9:00 TO 3:00 START

    2 ft. - General Observation - MAG COAT 90% 9:00 TO 3:00 START

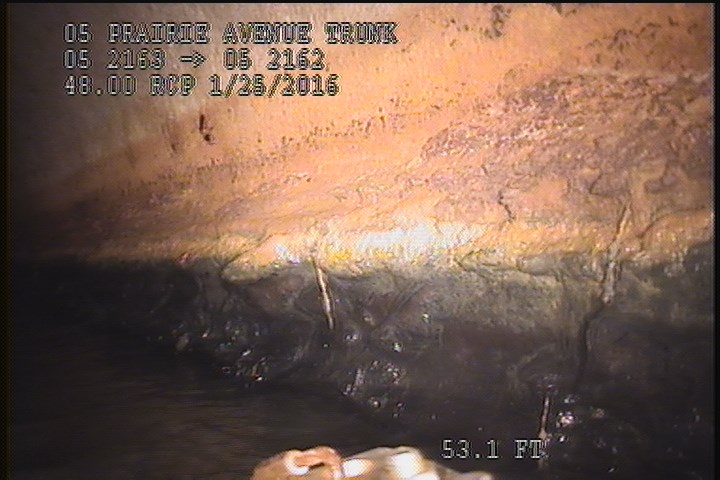

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

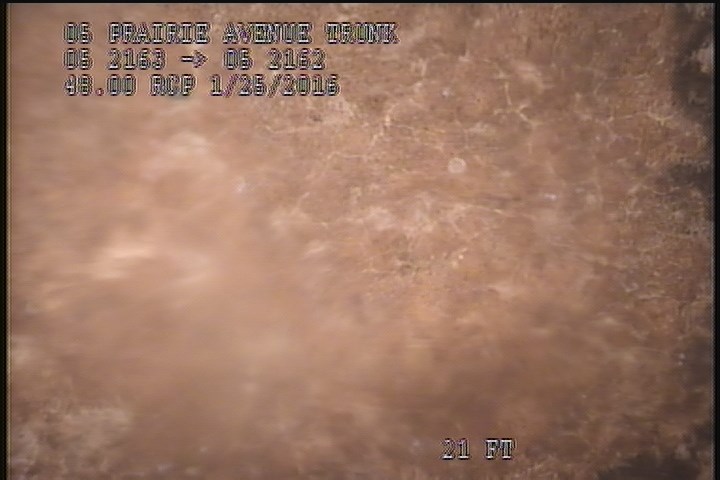

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT SWOLLEN BLISTERING

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT SWOLLEN BLISTERING

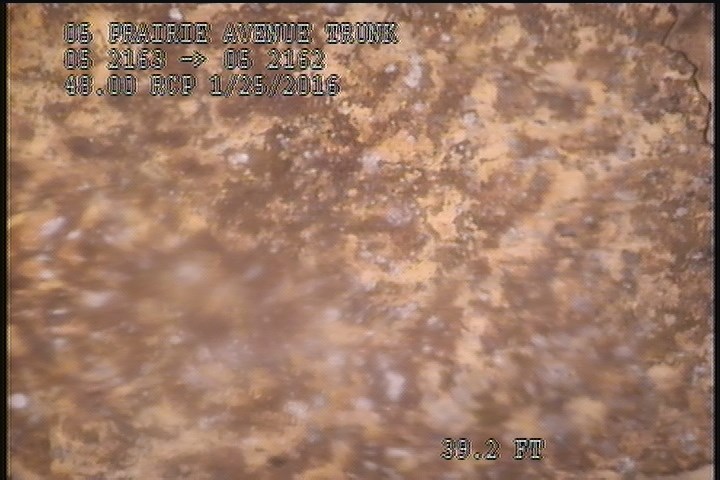

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - LAITANCE COAT SWOLLEN

    39.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - LAITANCE COAT SWOLLEN

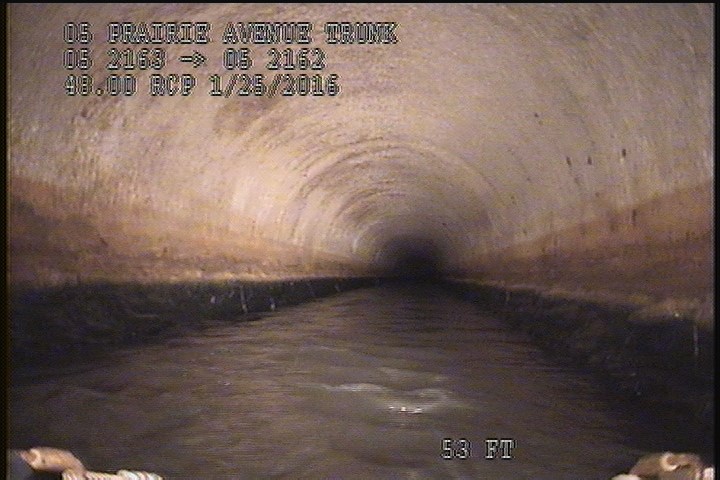

  • General Observation - MAG COAT 98% START 8:00 TO 4:00

    53 ft. - General Observation - MAG COAT 98% START 8:00 TO 4:00

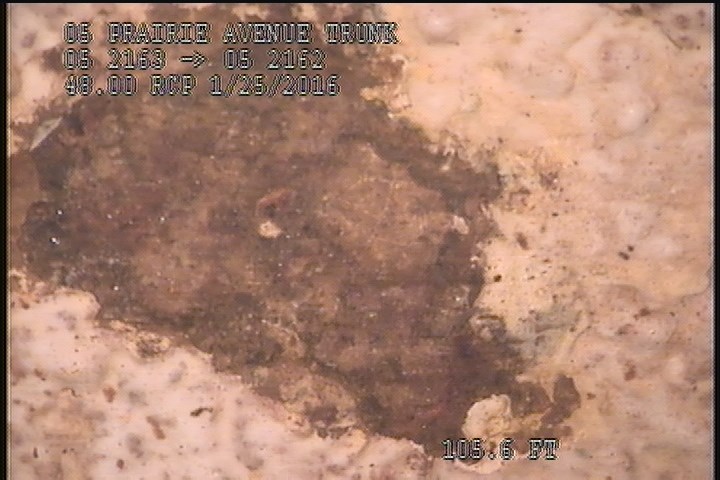

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BLISTERING LAITANCE COAT

    105.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BLISTERING LAITANCE COAT

All inspections of P07305Work order 0536424

Observations (13)

DistanceCodeObservation
0AMH1:10AM
0MWL—
105.6SSSBLISTERING LAITANCE COAT
53MGOMAG COAT 98% START 8:00 TO 4:00
0MWM—
2MGOMAG COAT 90% 9:00 TO 3:00 START
161.2SSS—
161.2MGOMAG COAT98% FINISH
2DAGS—
161.2DAGS—
39.2SSSLAITANCE COAT SWOLLEN
161.6AMH1:30AM
2SSSLAITANCE COAT SWOLLEN BLISTERING

Properties (6)

custom_field_three
SPALLING LAITANCE COAT
custom_field_two
4
customer
LACSD
datetime
2016-01-25T01:10:00-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
