Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 22, 2016, 04:58 PM

  • A 0465_A 0464_1222016_112023.mp4

Date
01/22/2016
W/O
PENDING
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00315
PipeID
P07701
Time
8:58 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0029
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR
City
TORRANCE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
30
Purpose
Maintenance Related
Project
20160122AM_JOA_1A_DISTRICT_5_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
66 in.
Upstream MH
A 0465
Downstream MH
A 0464
Dir. of Survey
Downstream
Length Surveyed
120.4 ft.
Total Length
120.4 ft.
Structural Index
4
Structural Quick
5245
Structural Rating
54
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
54
Pipe schematic from manhole A 0465 to A 0464
MH: A 0465MH: A 0464downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:11 AM, WEST AIRLINE INSPECTION ONLY0 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE9.1 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES23.5 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES29 ft. B - Broken, from 10 to 03 o'clock, within 8 inches of joint: YES34 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES38.6 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES55 ft. B - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES60.3 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES65 ft. FM - Fracture Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES75.5 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES81.1 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES86.5 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES90.9 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES95.8 ft. FM - Fracture Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES100.8 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES106.6 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES119.3 ft. MGO - General Observation - MULTIPLE CRACKS THROUGHOUT THE REACH119.3 ft. MGO - General Observation - MODERATE DEBRIS THROUGHOUT THE REACH120.4 ft. AMH - Downstream Manhole, Survey Ends - 11:55 AM

Observation photos (6)

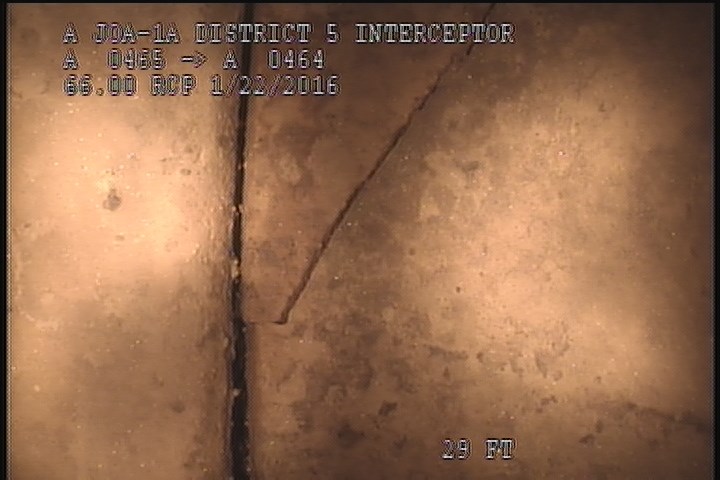

  • Broken, from 10 to 03 o'clock, within 8 inches of joint: YES

    29 ft. - Broken, from 10 to 03 o'clock, within 8 inches of joint: YES

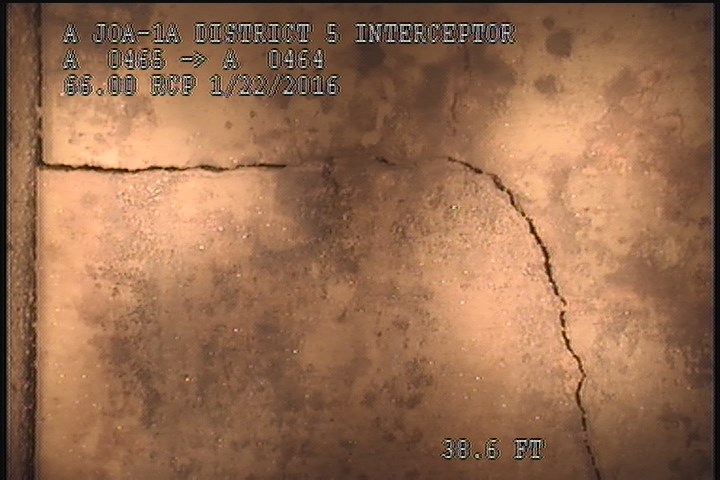

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    38.6 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

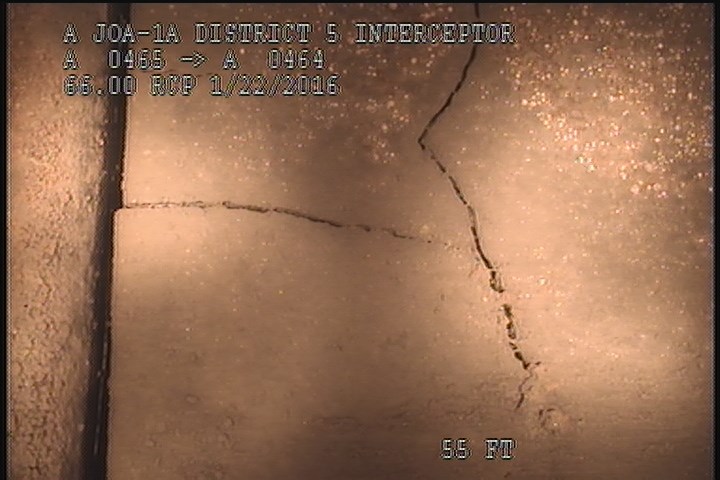

  • Broken, from 12 to 12 o'clock, within 8 inches of joint: YES

    55 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES

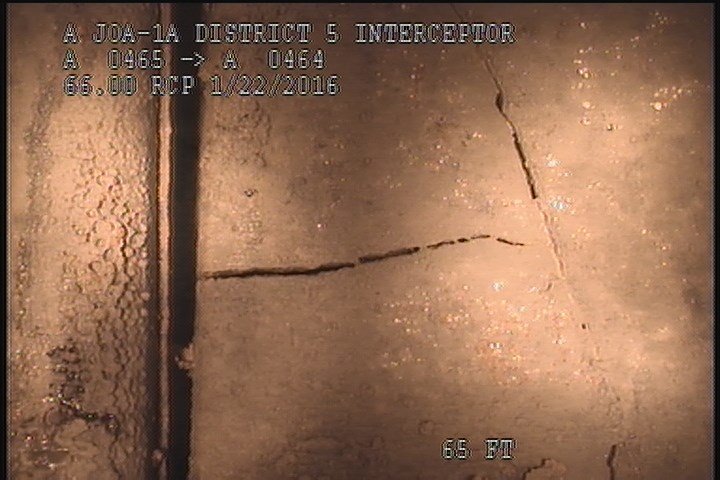

  • Fracture Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES

    65 ft. - Fracture Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES

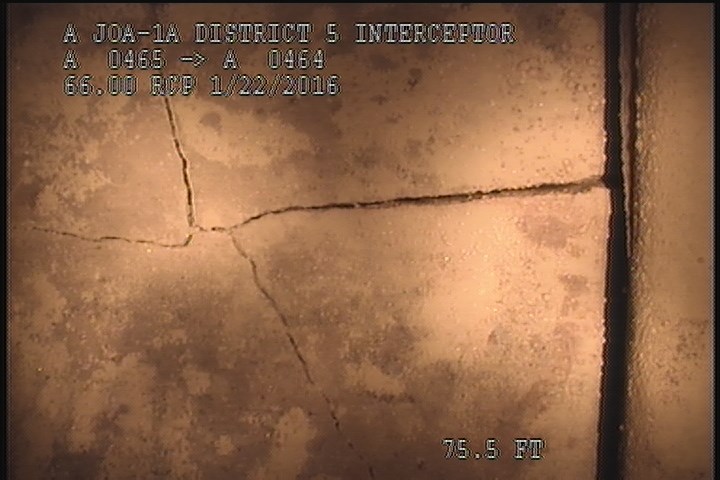

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    75.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

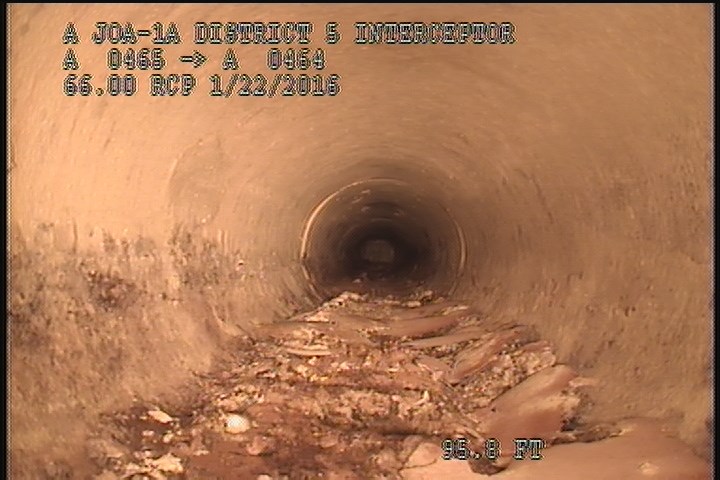

  • General Observation - MODERATE DEBRIS THROUGHOUT THE REACH

    119.3 ft. - General Observation - MODERATE DEBRIS THROUGHOUT THE REACH

All inspections of P07701Work order PENDING

Observations (20)

DistanceCodeObservation
38.6FM—
119.3MGOMULTIPLE CRACKS THROUGHOUT THE REACH
106.6CM—
55B—
86.5FM—
9.1CM—
0AMH11:11 AM, WEST AIRLINE INSPECTION ONLY
60.3CM—
90.9CM—
75.5FM—
0MWLDRY LINE
23.5CM—
120.4AMH11:55 AM
119.3MGOMODERATE DEBRIS THROUGHOUT THE REACH
29B—
34CM—
95.8FM—
100.8CM—
65FM—
81.1CM—

Properties (7)

additional_info
AIRLINE INSPECTION ONLY, WEST BARREL
custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-01-22T08:58:58-08:00
documentation
MIRANDA, FRANKLIN, MIRABAL
is_lateral_inspection
false
