Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2016, 09:45 PM

  • 02 2437_02 1881A_1112016_135131.mp4

Date
01/11/2016
W/O
0547412
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00246
PipeID
P26492
Time
1:45 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7038
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
20160107AM_DOUGLAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 2437
Downstream MH
02 1881A
Dir. of Survey
Downstream
Length Surveyed
17.3 ft.
Total Length
17.3 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 02 2437 to 02 1881A
MH: 02 2437MH: 02 1881Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:50 PM0 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE0 ft. MWM - Water Mark, 5 %of cross sectional area3.1 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES7.1 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES9.8 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES16.8 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH16.8 ft. MGO - General Observation - MULTIPLE CRACKS THROUGHOUT THE REACH16.8 ft. MGO - General Observation - ABANDONED MH.17.3 ft. AMH - Downstream Manhole, Survey Ends - NO MANHOLE STACK OR COVER

Observation photos (2)

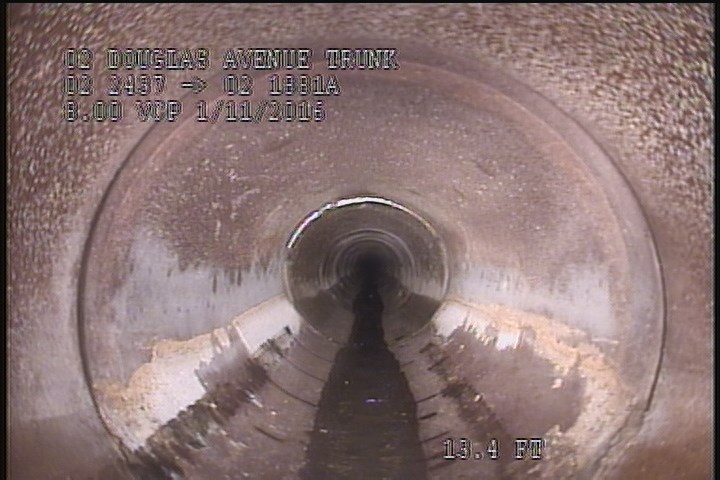

  • General Observation - ABANDONED MH.

    16.8 ft. - General Observation - ABANDONED MH.

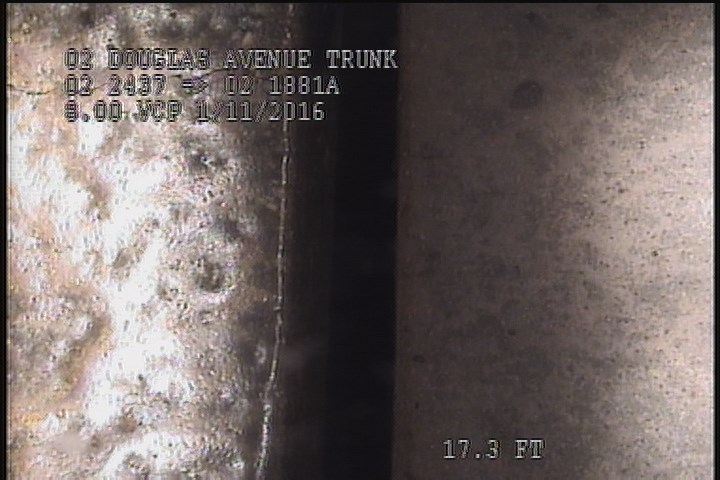

  • Downstream Manhole, Survey Ends - NO MANHOLE STACK OR COVER

    17.3 ft. - Downstream Manhole, Survey Ends - NO MANHOLE STACK OR COVER

All inspections of P26492Work order 0547412

Observations (10)

DistanceCodeObservation
16.8MGOSLIGHT GREASE THROUGHOUT THE REACH
0AMH1:50 PM
0MWLDRY LINE
0MWM—
16.8MGOMULTIPLE CRACKS THROUGHOUT THE REACH
17.3AMHNO MANHOLE STACK OR COVER
16.8MGOABANDONED MH.
9.8CM—
7.1CM—
3.1CM—

Properties (7)

additional_info
MH. 1881A IS AN ABANDONED MANHOLE
custom_field_three
MULTIPLE CRACKS
custom_field_two
3
customer
LACSD
datetime
2016-01-11T13:45:10-08:00
documentation
MIRANDA, SHADLER, FRANKLIN
is_lateral_inspection
false
