Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2016, 08:36 PM

  • 02 1940_02 1883_1112016_123858.mp4

Date
01/11/2016
W/O
0547412
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00246
PipeID
P04236
Time
12:36 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7038
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
20160107AM_DOUGLAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 1940
Downstream MH
02 1883
Dir. of Survey
Downstream
Length Surveyed
44.6 ft.
Total Length
44.6 ft.
Structural Index
3
Structural Quick
3621
Structural Rating
20
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 02 1940 to 02 1883
MH: 02 1940MH: 02 1883downstream0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:37 PM1.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES6.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES11.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES14.4 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES19.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES31.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES32.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"39.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES40.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"44.2 ft. MGO - General Observation - MULTIPLE CRACKS THROUGHOUT THE REACH44.2 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH44.6 ft. AOC - Drop Connection, Survey Ends - 12:51 PM

Observation photos (2)

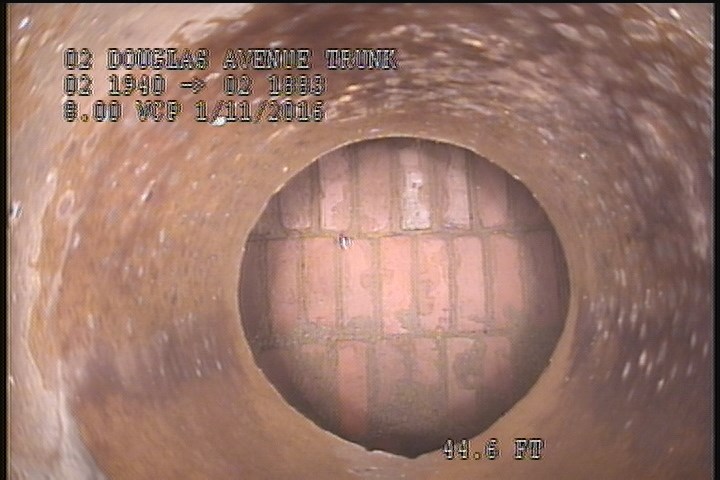

  • General Observation - SLIGHT GREASE THROUGHOUT THE REACH

    44.2 ft. - General Observation - SLIGHT GREASE THROUGHOUT THE REACH

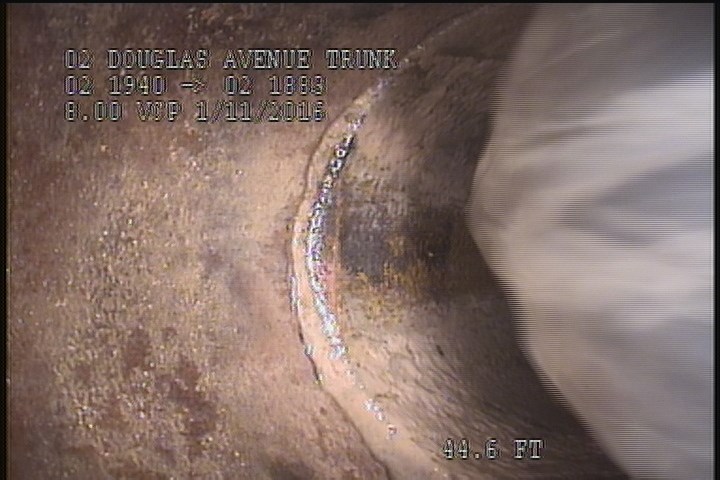

  • Drop Connection, Survey Ends - 12:51 PM

    44.6 ft. - Drop Connection, Survey Ends - 12:51 PM

All inspections of P04236Work order 0547412

Observations (16)

DistanceCodeObservation
6.1CM—
14.4CL—
1.6CM—
0MGOROACHES INSIDE THE MH.
0MWL—
32.8TFC—
44.2MGOMULTIPLE CRACKS THROUGHOUT THE REACH
0MWM—
19.1CM—
39.4CM—
0AMH12:37 PM
44.2MGOSLIGHT GREASE THROUGHOUT THE REACH
40.6TFC—
31.8CM—
44.6AOC12:51 PM
11.3CM—

Properties (6)

custom_field_three
MULTIPLE CRACKS
custom_field_two
3
customer
LACSD
datetime
2016-01-11T12:36:07-08:00
documentation
MIRANDA, SHADLER, FRANKLIN
is_lateral_inspection
false
