Wastewater/Activity/PacpInspection/1.0Oct 25, 2019, 11:00 AM
B 1298_B 1297 _10252019_041126.mp4
- Date
- 10/25/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25193
- Time
- 4:00 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K7072
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Woods
- Location Code
- E
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 22 in.
- Width
- 22 in.
- Upstream MH
- B 1297
- Downstream MH
- B 1298
- Dir. of Survey
- Upstream
- Length Surveyed
- 40.2 ft.
- Total Length
- 40.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (1)

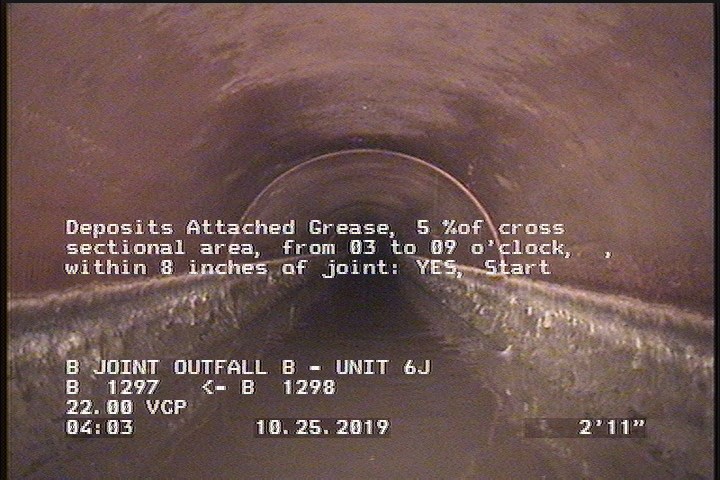

2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 36.3 | DSC | — |
| 0 | MWL | — |
| 2.9 | DAGS | — |
| 0 | MWM | — |
| 40.2 | MSA | DEBRIS |
| 40.2 | DAGS | — |
| 40.2 | DSC | — |
| 0 | AMH | B 1297 |
Properties (6)
- additional_info
- SC378672
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-10-25T04:00:01-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
