Wastewater/Activity/PacpInspection/1.0Sep 18, 2019, 05:50 AM
B 1349_B 1348 _09172019_231500.mp4
- Date
- 09/17/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25244
- Time
- 10:50 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6934
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- B 1349
- Downstream MH
- B 1348
- Dir. of Survey
- Downstream
- Length Surveyed
- 288.5 ft.
- Total Length
- 288.5 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 100
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 104
Observation photos (2)

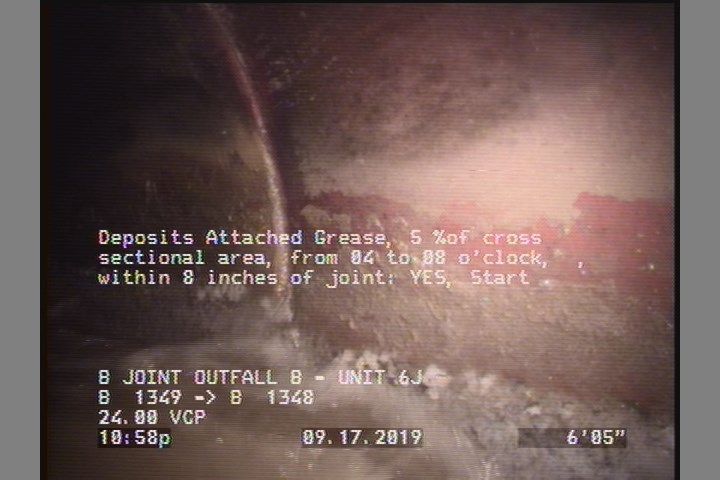

6.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

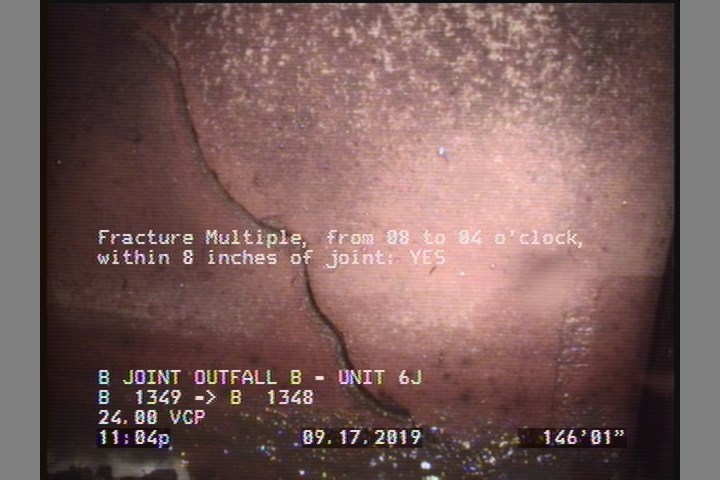

146.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 286.8 | DSC | — |
| 0 | MGO | CONNECTION AT 3 O'CLOCK |
| 286.8 | DAGS | — |
| 0 | MWM | — |
| 6.4 | MGO | LIGHT STEAM IN SEWER |
| 6.4 | DAGS | — |
| 0 | MWL | — |
| 288.5 | AMH | B 1348 |
| 146.1 | FM | — |
| 0 | AMH | B 1349 |
| 39.9 | DSC | — |
Properties (6)
- additional_info
- SC378533
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-17T22:50:44-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
