Wastewater/Activity/PacpInspection/1.0Sep 18, 2019, 06:18 AM
B 1348_B 1347 _09172019_233140.mp4
- Date
- 09/17/2019
- W/O
- 787657
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01126
- PipeID
- P25243
- Time
- 11:18 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6934
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_787657_TV30028_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- B 1348
- Downstream MH
- B 1347
- Dir. of Survey
- Downstream
- Length Surveyed
- 302 ft.
- Total Length
- 302 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 170
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 177
Observation photos (4)

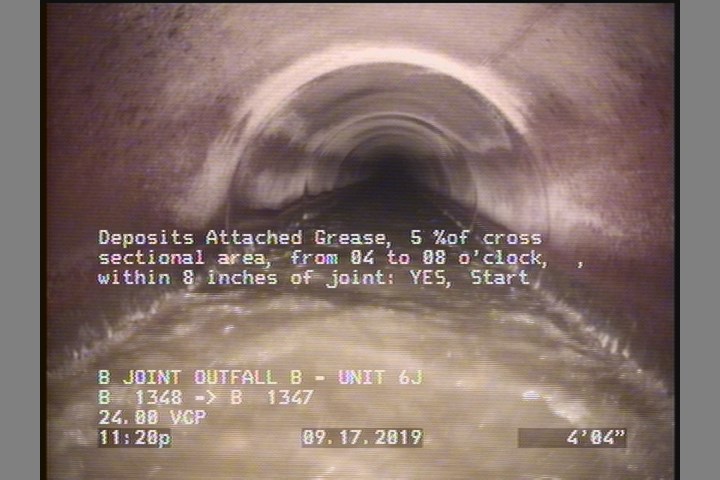

4.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

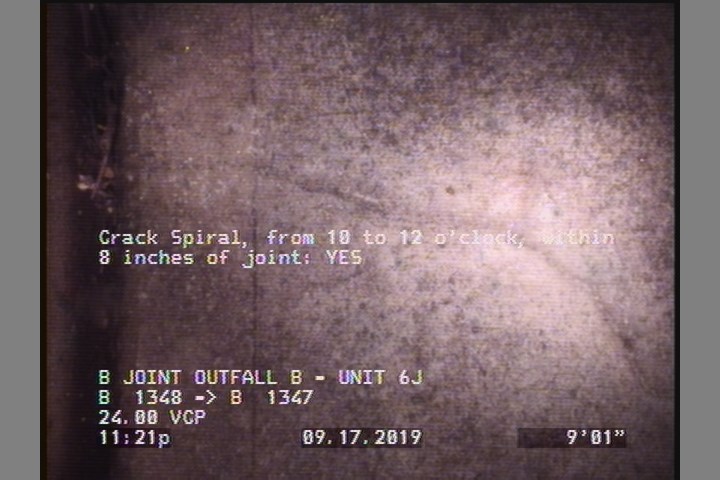

9.1 ft. - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES

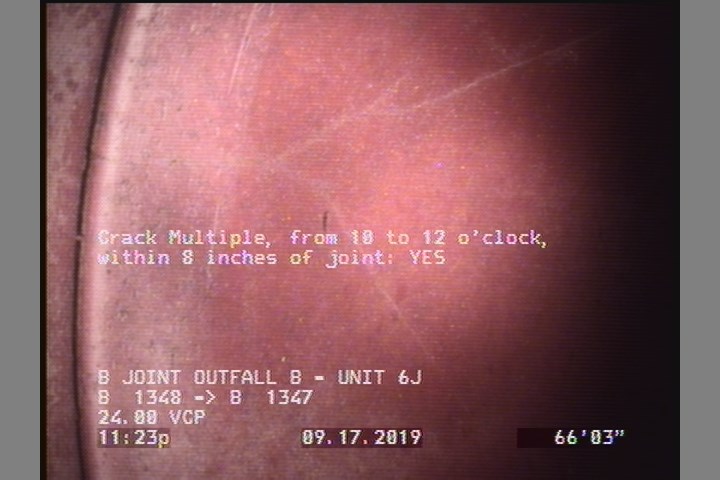

66.3 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

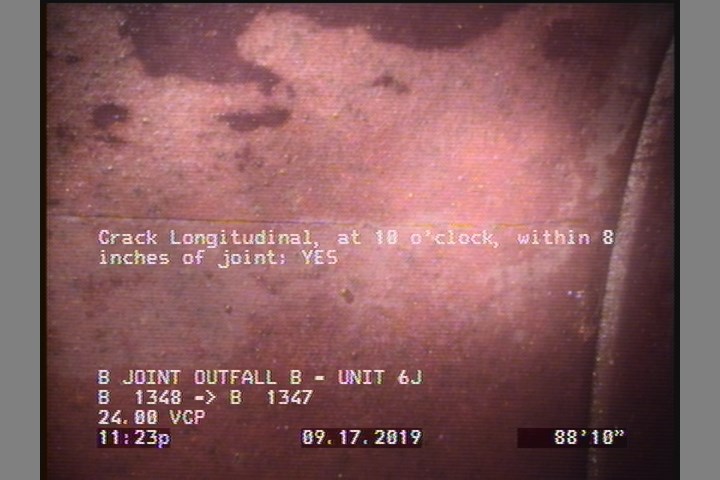

88.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 299.9 | DSC | — |
| 300.2 | DAGS | — |
| 157.9 | TB | — |
| 302 | AMH | B 1347 |
| 9.1 | CS | — |
| 0 | MWL | — |
| 172.2 | DSC | — |
| 88.8 | CL | — |
| 0 | MWM | — |
| 0 | AMH | B 1348 |
| 4.4 | DAGS | — |
| 66.3 | CM | — |
Properties (6)
- additional_info
- SC378533
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-09-17T23:18:30-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
